Fuel Tank Pressure Sensor & EVAP Canister Vent Solenoid Component View

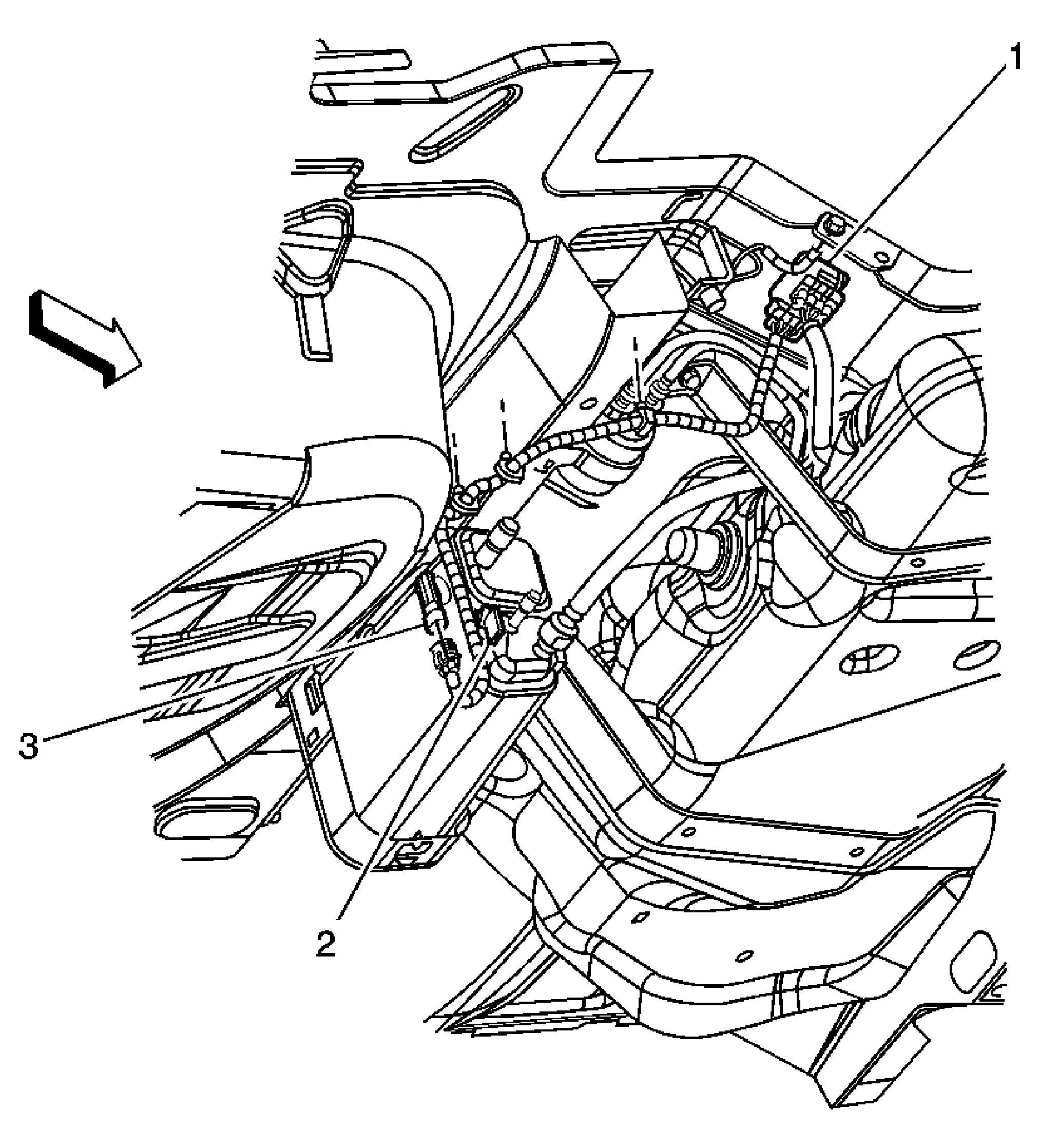

Fig 1: Right Rear Side Under Vehicle
GM1696935Courtesy of GENERAL MOTORS CORP.
Callout  Component Name
1 C406
2 Fuel Tank Pressure Sensor
3 Evaporative Emission (EVAP) Canister Vent Solenoid
