Seat Belt Component Views

Fig 1: Left Front Seat Of Vehicle Component View
GM899275Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch - Left

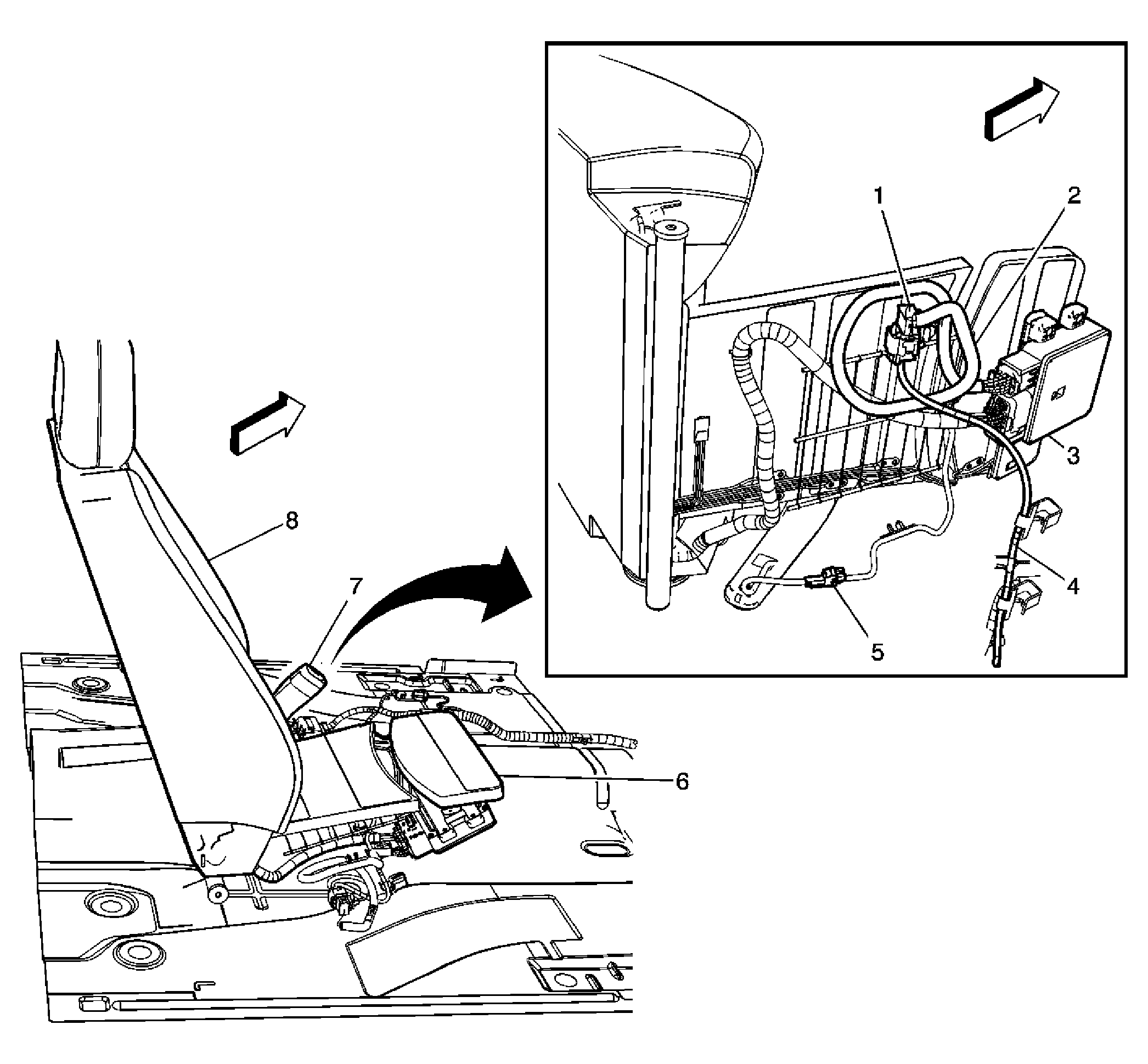

Fig 2: Right Front Seat of the Vehicle
GM1614987Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2 C300 Passenger Presence System (PPS) Jumper Harness to I/P Harness
3 Passenger Presence System (PPS) Jumper Harness
4 Inflatable Restraint Front Passenger Presence System (PPS) Module
5 I/P Harness
6 Seat Belt Switch - Passenger
7 Seat Belt Buckle - Passenger
8 Passenger Seat
