Rear

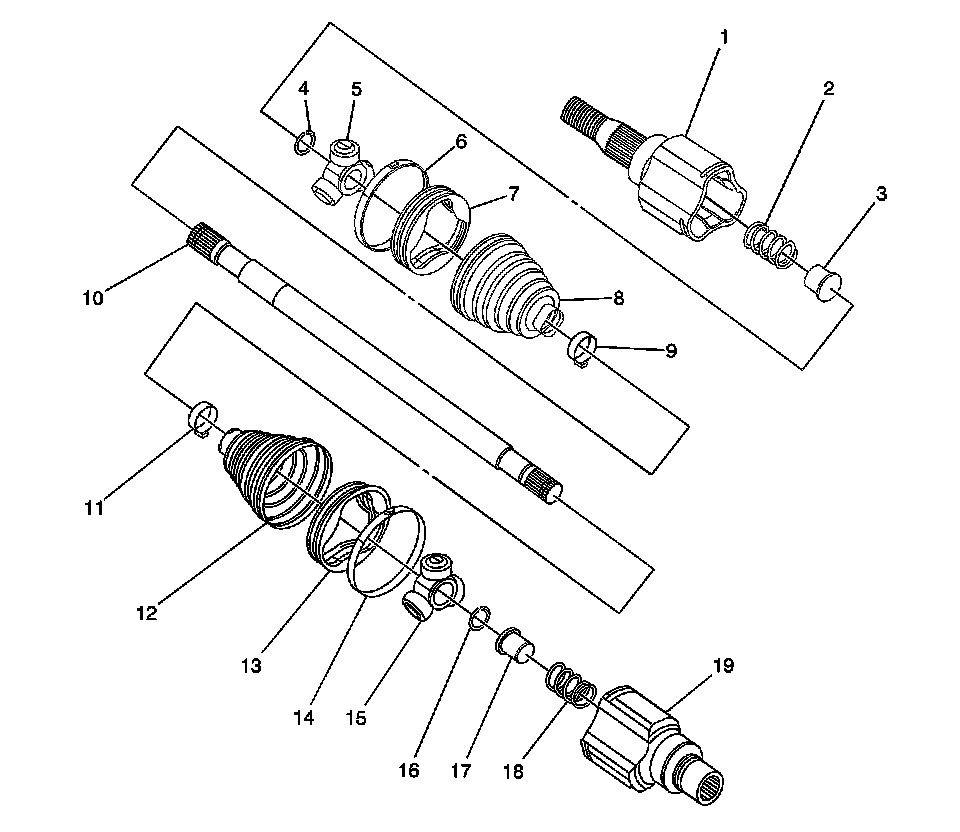

Wheel Drive Shafts Disassembled Views - Rear

Wheel Drive Shafts Disassembled Views - Rear:

1 - Tripot Joint Race - Outboard
2 - Spring
3 - Guide
4 - Retaining Ring, Outboard Tripot Joint Spider
5 - Tripot Joint Spider - Outboard Tripot Joint
6 - Clamp, Outboard Tripot Joint Seal - Outer
7 - Bushing, Tripot Joint Race - Outboard
8 - Tripot Joint Seal, Outboard
9 - Clamp, Outboard Tripot Joint Seal - Inner
10 - Bar, Wheel Drive Shaft
11 - Clamp, Inboard Tripot Joint Seal - Inner
12 - Tripot Joint Seal, Inboard
13 - Bushing, Tripot Joint Race - Inboard
14 - Clamp, Inboard Tripot Joint Seal - Outer
15 - Tripot Joint Spider - Inboard Tripot Joint
16 - Retaining Ring, Inboard Tripot Joint Spider
17 - Guide
18 - Spring
