Power and Grounding Component Views

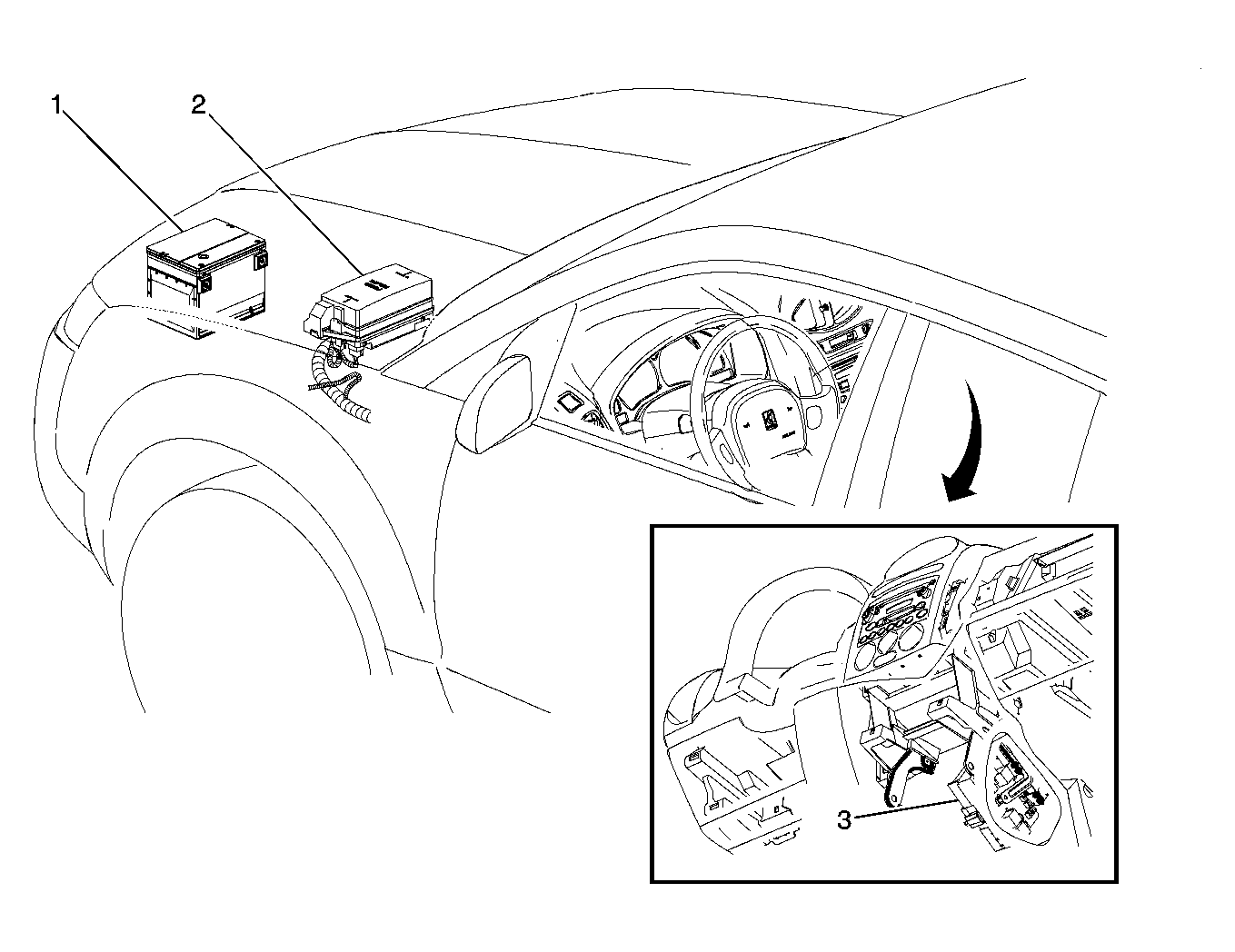

Fig 1: Battery and Fuse Block Locations
GM1184367Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Block-Underhood
3 Fuse Block-I/P

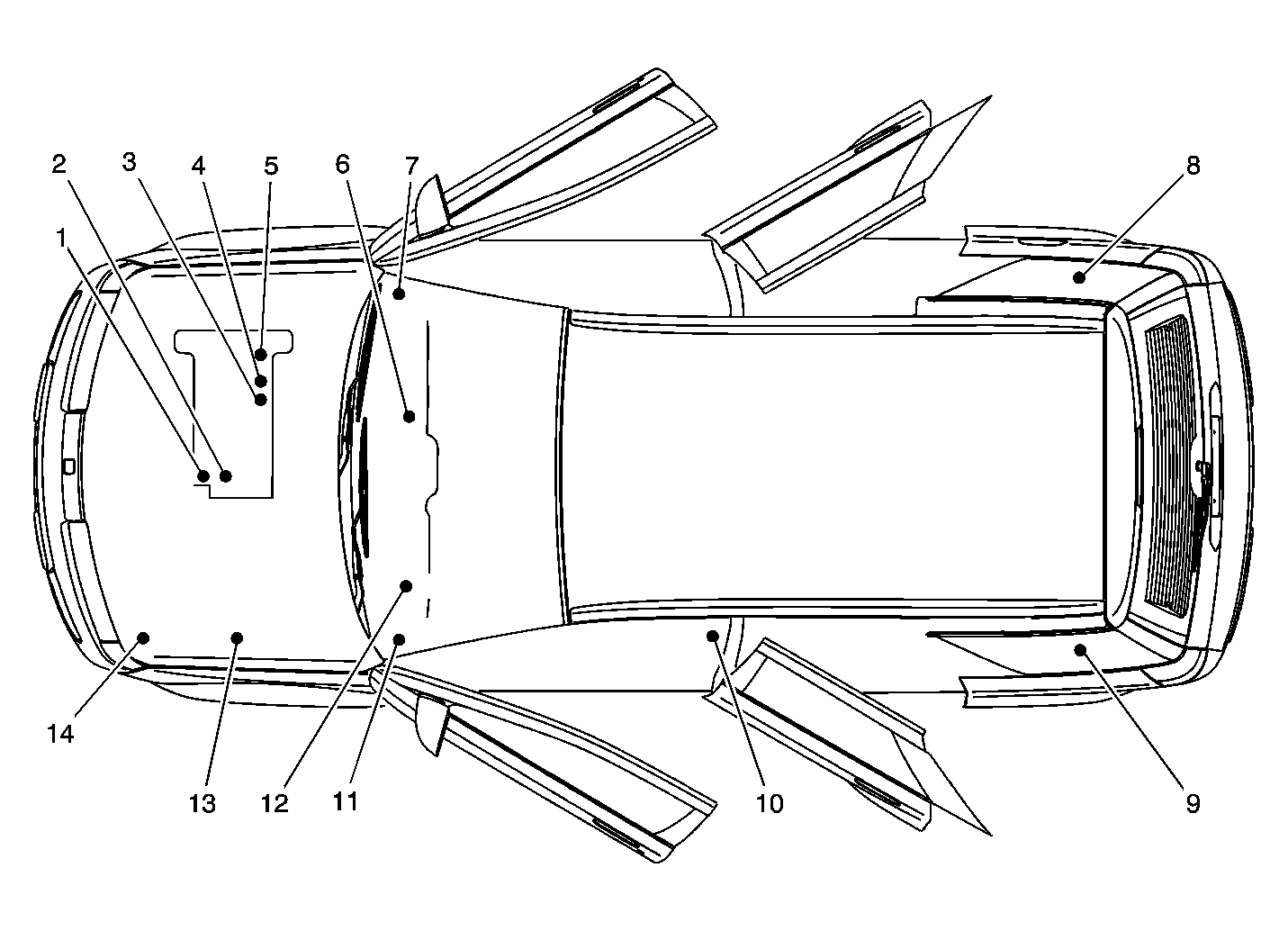

Fig 2: Ground and Splice Pack Locations
GM1336190Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G105
2 G107
3 Splice Pack SP114 (w/ L66 Only)
4 Splice Pack SP113 (w/ L66 Only)
5 G109 (w/ L66 Only)
6 G203 (Secured on I/P Fuse Block)
7 G201, Splice Pack SP201
8 G403, Splice Pack SP403
9 G401, Splice Pack SP401
10 G301, Splice Pack SP301
11 G205, Splice Pack SP205, Splice Pack SP203
12 G207
13 G103
14 G101, Splice Pack SP101
