Data Communication Component Views

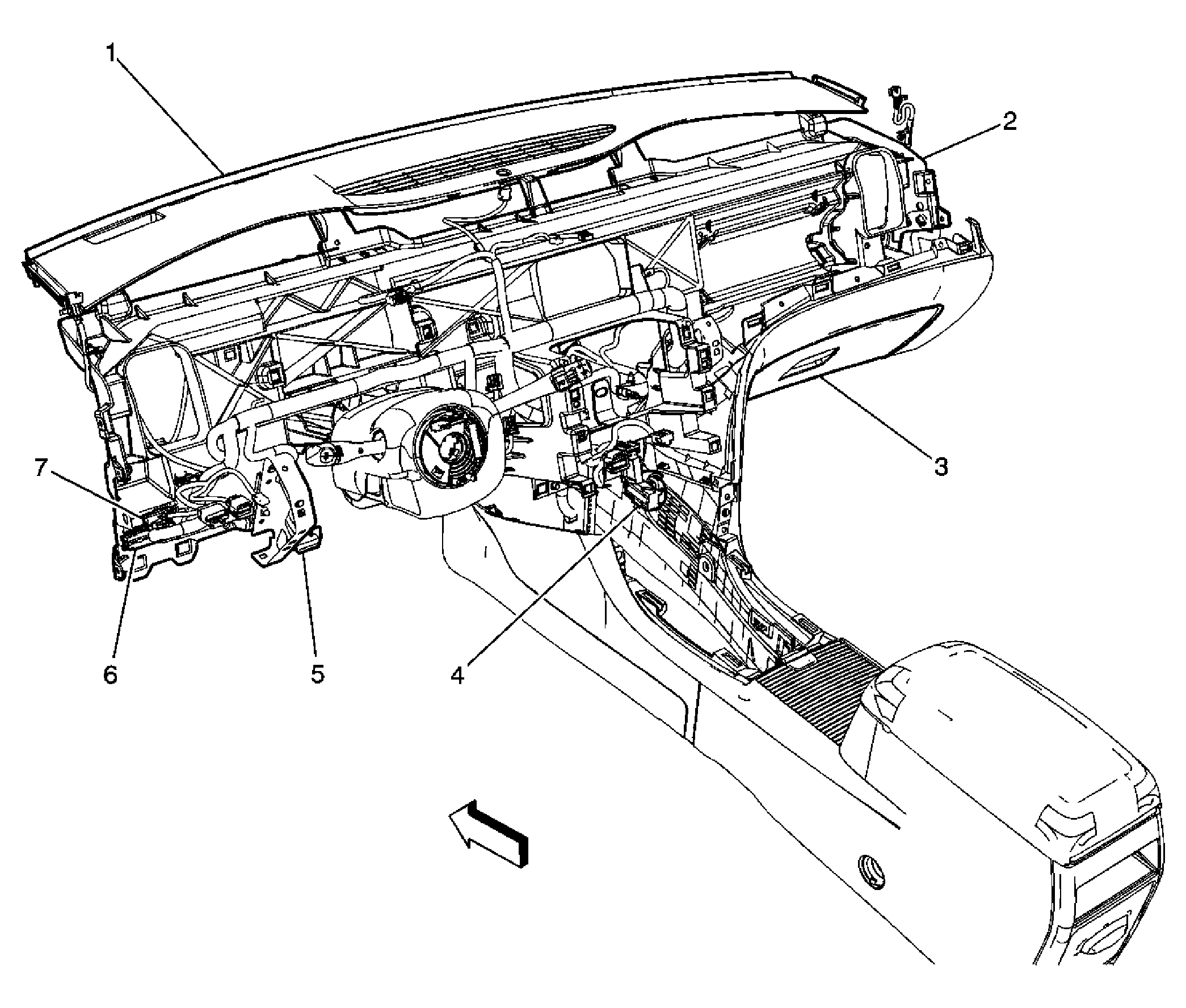

Fig 1: View Of I/P Harness - Front Of Carrier
GM1776045Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Trim
2 I/P Carrier
3 I/P Compartment
4 Body Bontrol Module (BCM) C2
5 Data Link Connector (DLC)
6 C206
7 C208
Fig 2: View Behind I/P Trim
GM1832301Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Trim
2 Theft Deterrent Control Module
3 Steering Column
4 Ignition Switch
5 Body Control Module (BCM)
