Variable Valve Timing Actuator: Service and Repair

Camshaft Position Actuator Magnet Replacement

Removal Procedure




1. Remove the intake manifold cover.
2. Remove the engine mount strut bracket.

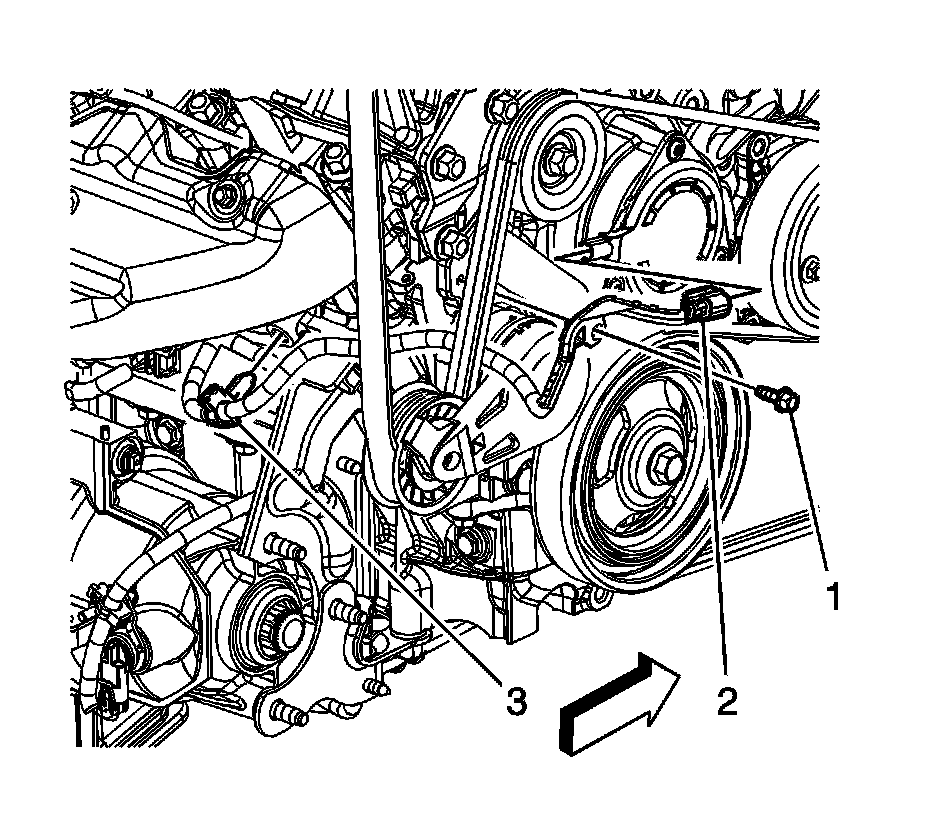

3. Disconnect the engine wiring harness electrical connector (2) from the camshaft position actuator magnet.




4. Remove the camshaft position actuator magnet bolts.
5. Remove the camshaft position actuator magnet and O-ring seal.

Installation Procedure




1. Install the camshaft position actuator magnet O-ring seal and magnet.

Notice: Refer to Fastener Notice.

2. Install the camshaft position actuator magnet bolts.

Tighten the bolts to 10 N.m (89 lb in).




3. Connect the engine wiring harness electrical connector (2) to the camshaft position actuator magnet.
4. Install the engine mount strut bracket.
5. Install the intake manifold cover.
