4T45-E Automatic Transaxle

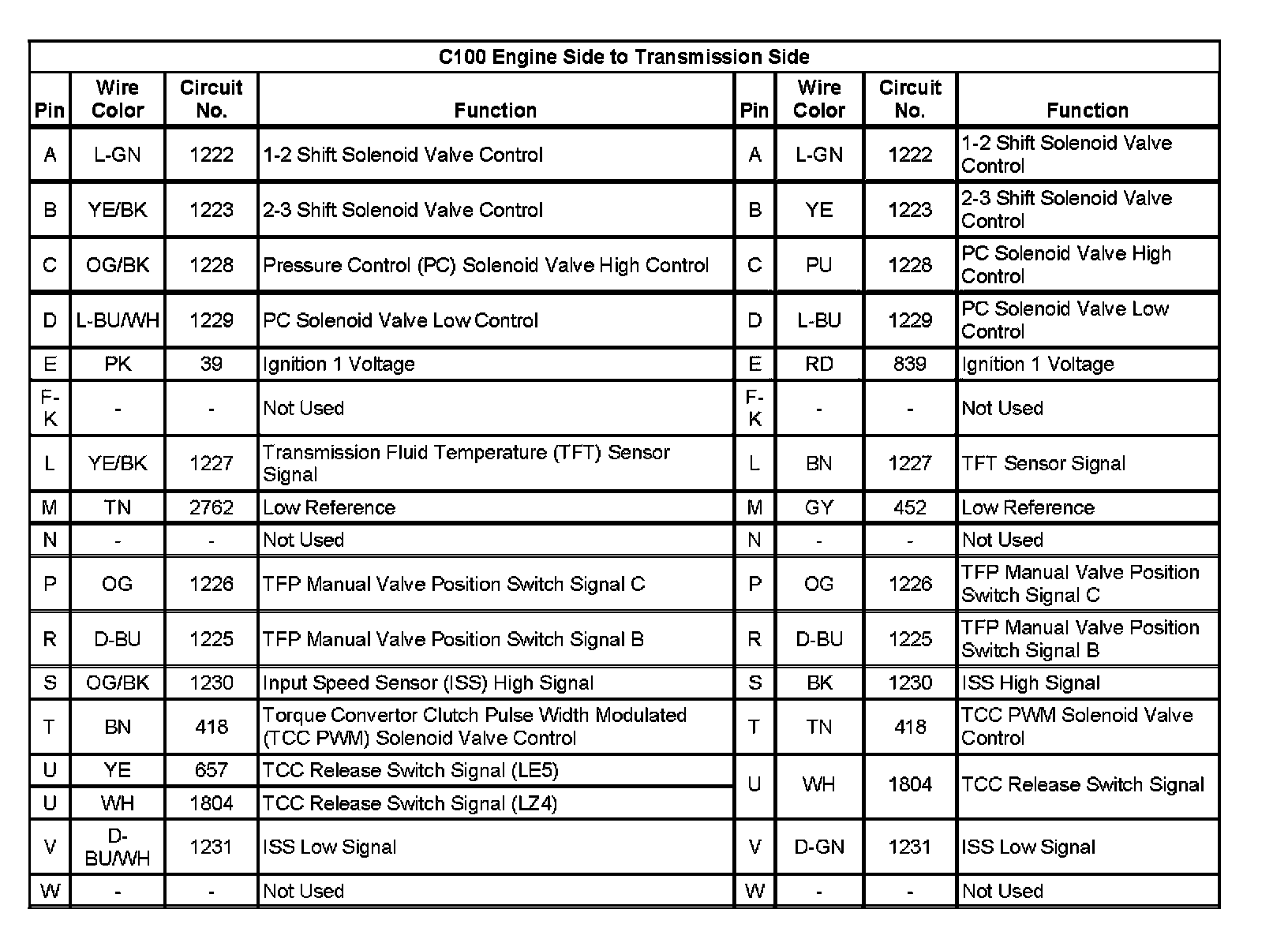

Automatic Transmission Inline 20-Way Connector End View
C100 Engine Side To Transmission Side:
