Battery Cable Views



Power and Grounding Component Views

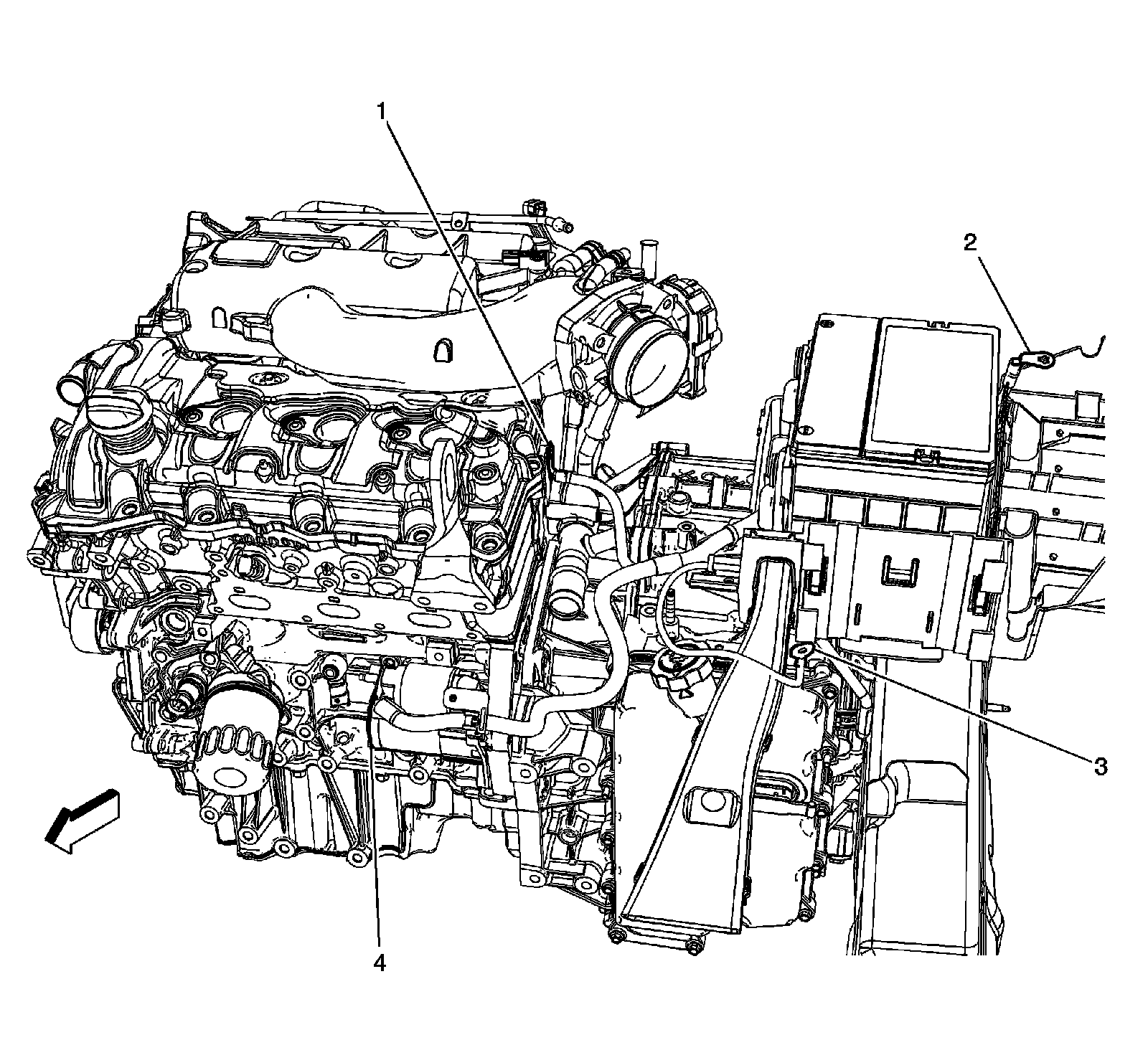

Battery Cable Harness (LY7)




1 - G105
2 - Fuse Block - Underhood Terminal
3 - G104
4 - Starter Terminal
