Installation Procedure

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

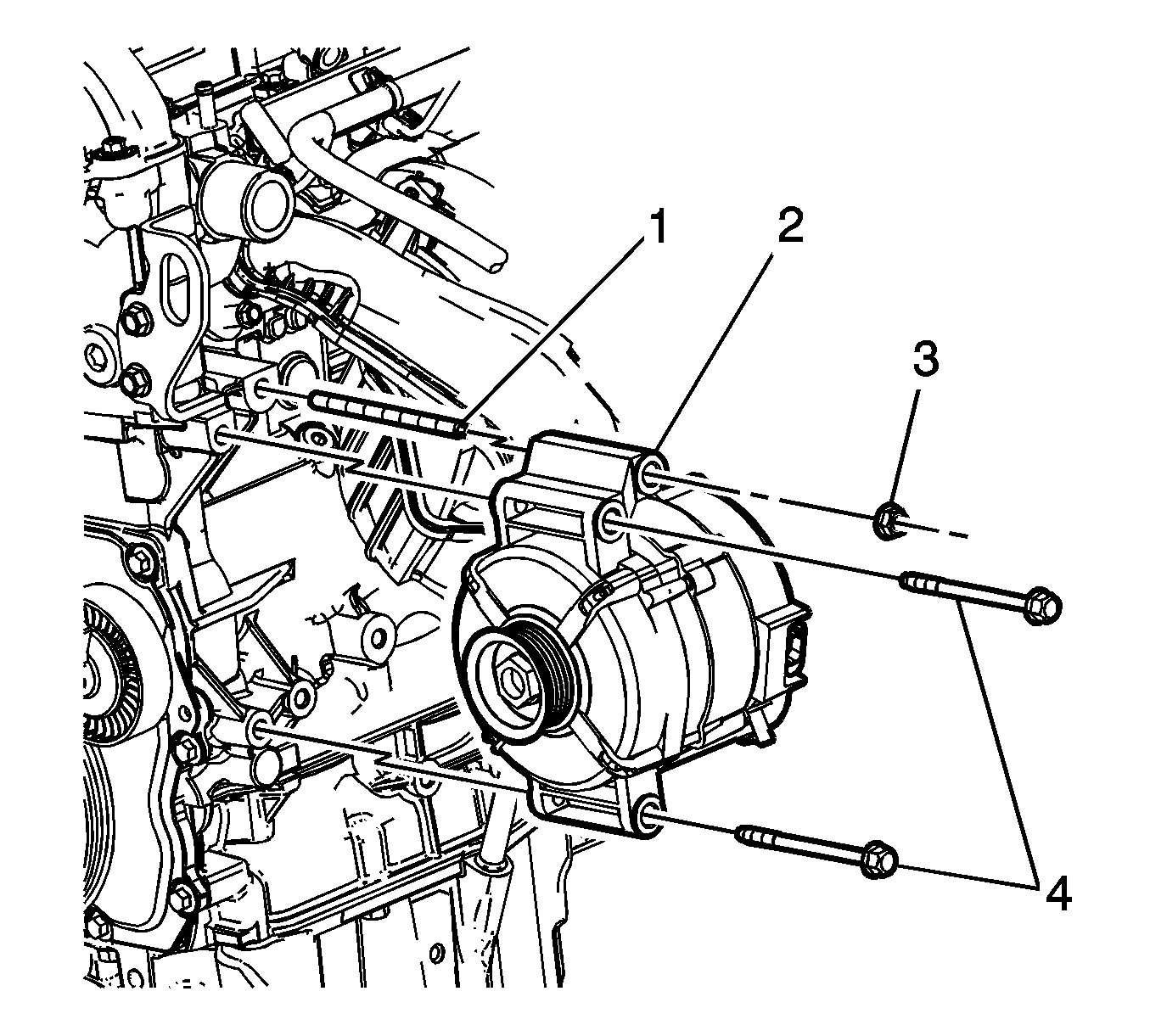

    Fig 1: View of Generator Fasteners
    GM2094845Courtesy of GENERAL MOTORS COMPANY
  1. Position the generator to the engine block.
  2. Install the generator fasteners (4) loosely.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the fastener (1) and tighten to 10 N.m (89 lb in).
  4. Install the fastener (3) and tighten to 22 N.m (16 lb ft).
  5. Tighten the fasteners (4) to 22 N.m (16 lb ft).

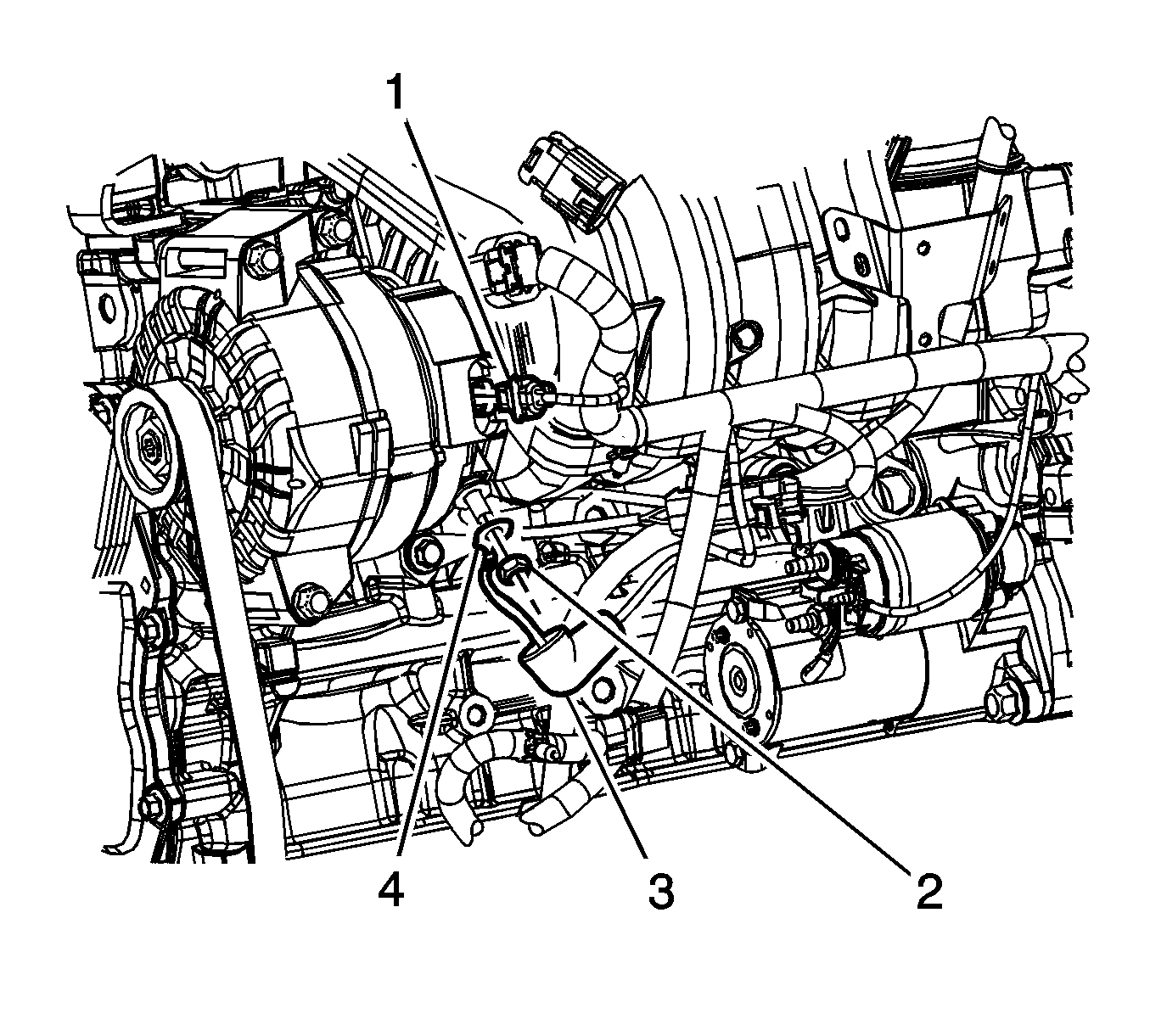

    6. Fig 2: View Of Generator Electrical Connectors
    GM1578426Courtesy of GENERAL MOTORS COMPANY
  6. Install the engine harness terminal (4) to the generator stud.
  7. Install the engine harness terminal lead to generator nut (2) and tighten to 20 N.m (15 lb ft).
  8. Position the rubber boot (3) over the stud.
  9. Connect the generator electrical connector (1).
  10. Install the drive belt. Refer to Drive Belt Replacement (LE5) .
  11. Connect negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LE5, LE9, LY7) .
