Air Cleaner Housing: Service and Repair

Air Cleaner Assembly Replacement

Removal Procedure

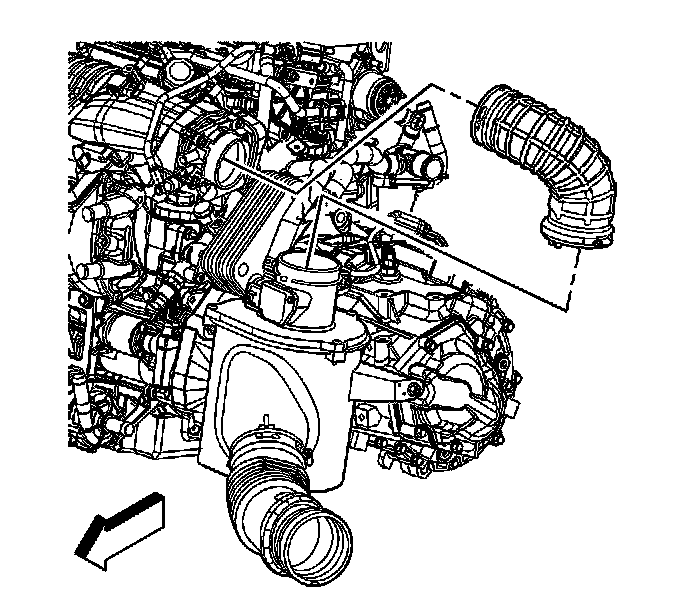

1. Remove the air cleaner outlet duct.

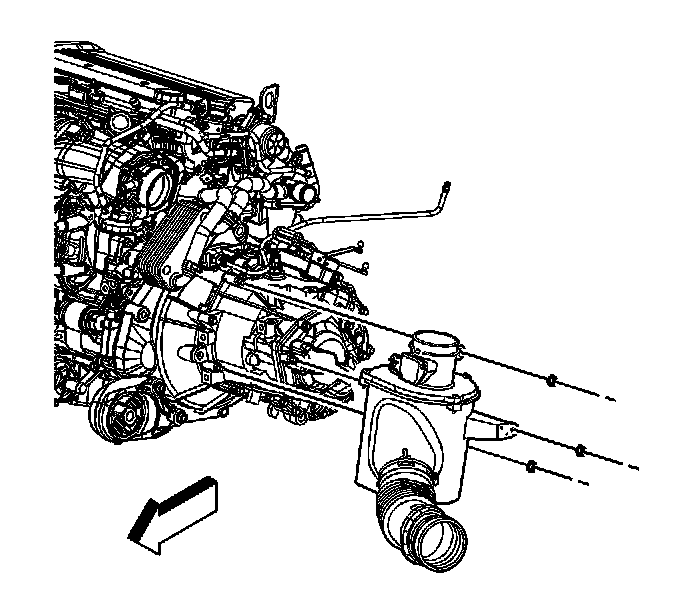

2. Remove the air cleaner assembly attachment fasteners.
3. Remove the air cleaner.

Installation Procedure






Important: Verify full engagement of the inlet onto the resonator neck.

1. Position the air cleaner assembly.

Notice: Refer to Fastener Notice.

2. Install the air cleaner assembly attachment bolts.

Tighten the bolts to 10 N.m (89 lb in).




3. Connect the air cleaner resonator to the air cleaner assembly.

Tighten the air cleaner outlet duct clamps to 5 N.m (44 lb in).
