Wheel Speed Sensor: Locations

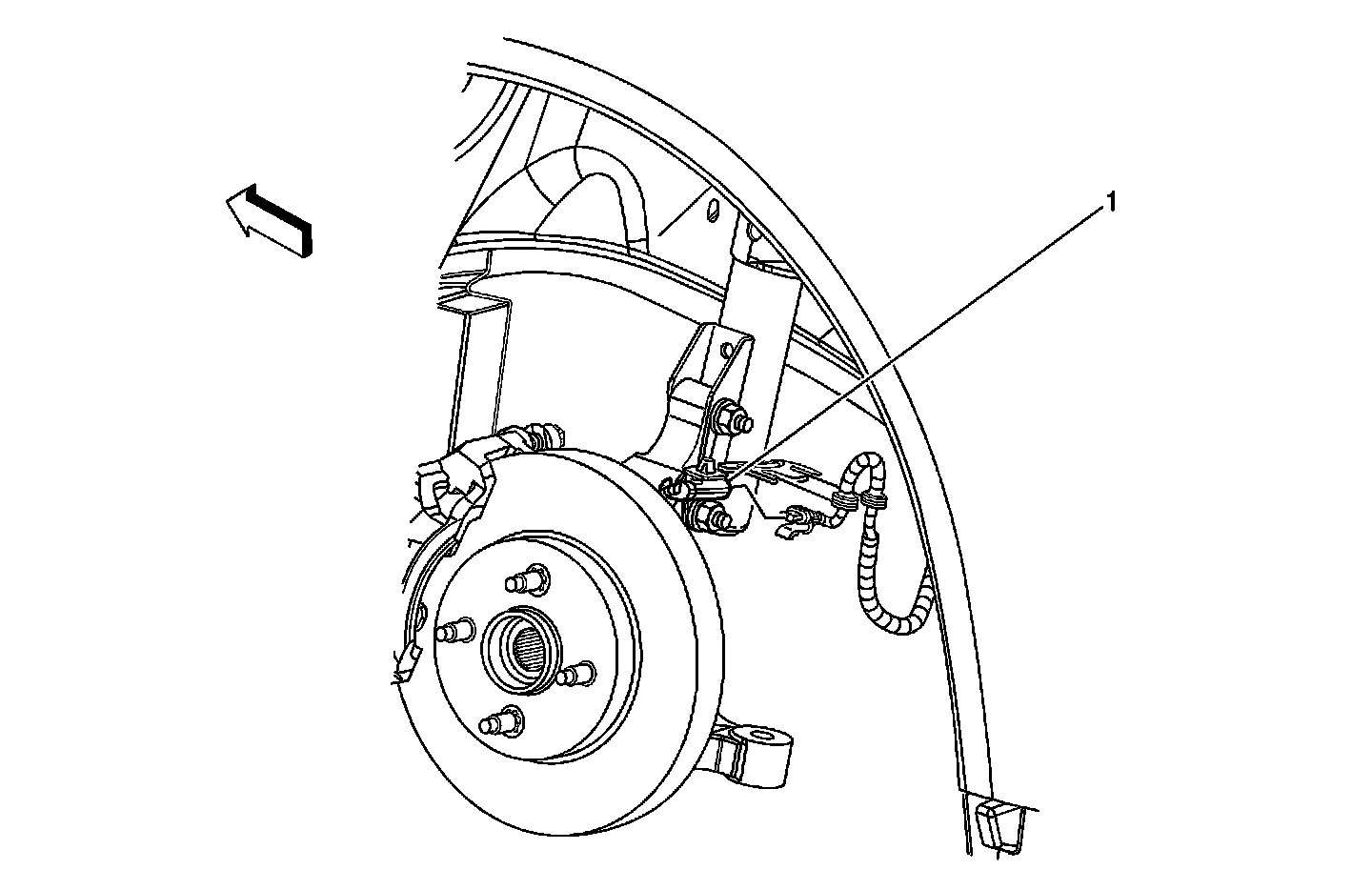

Front Left Side of the Vehicle (ABS)

Front Left Side of the Vehicle (ABS):




1 - Wheel Speed Sensor - LF (Right Front Similar)

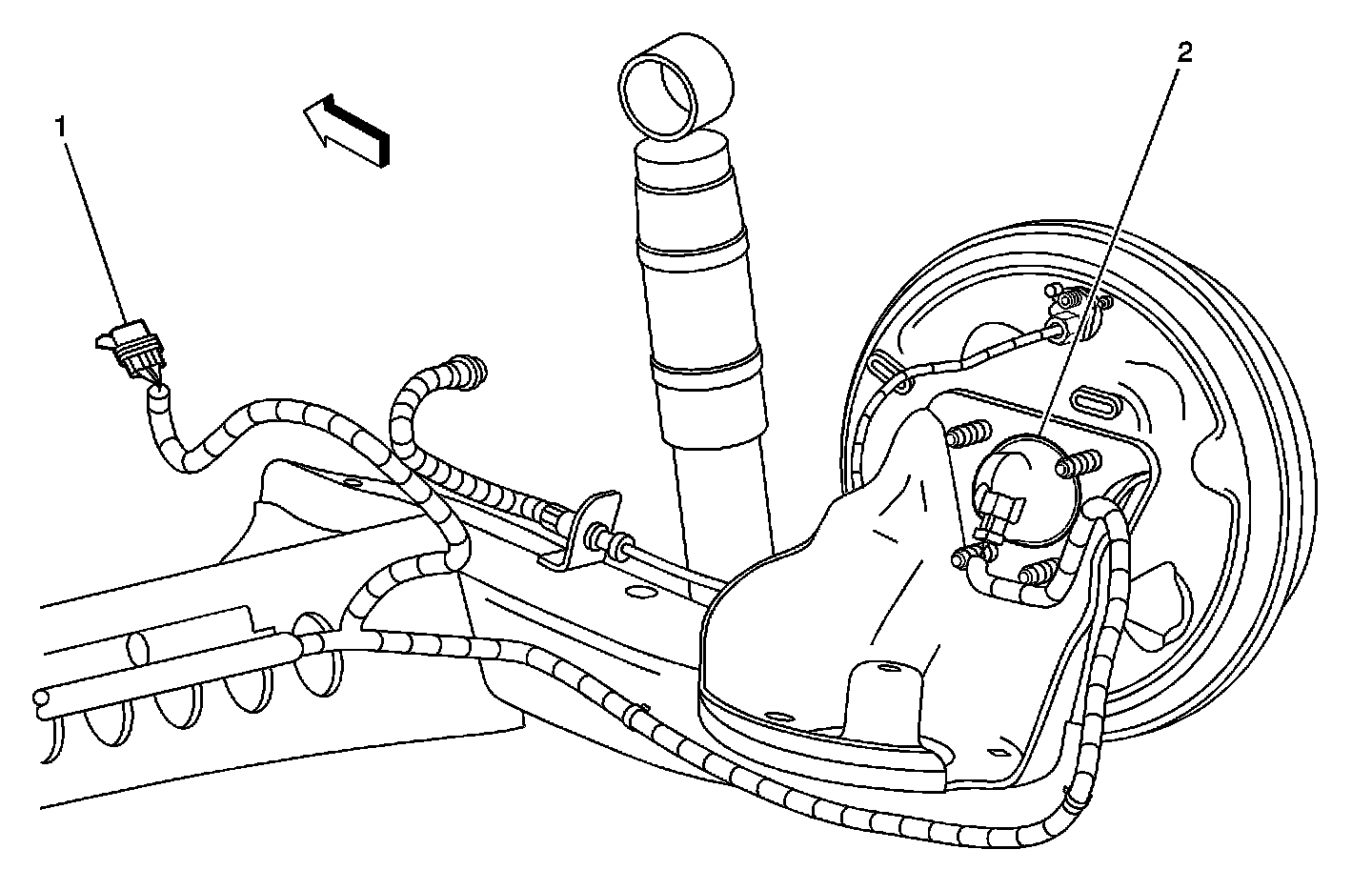

RR Frame and Underbody (JM4/JL9)

RR Frame and Underbody (JM4/JL9):




1 - C406
2 - Wheel Speed Sensor (WSS) - RR, LR Similar
