System Diagram

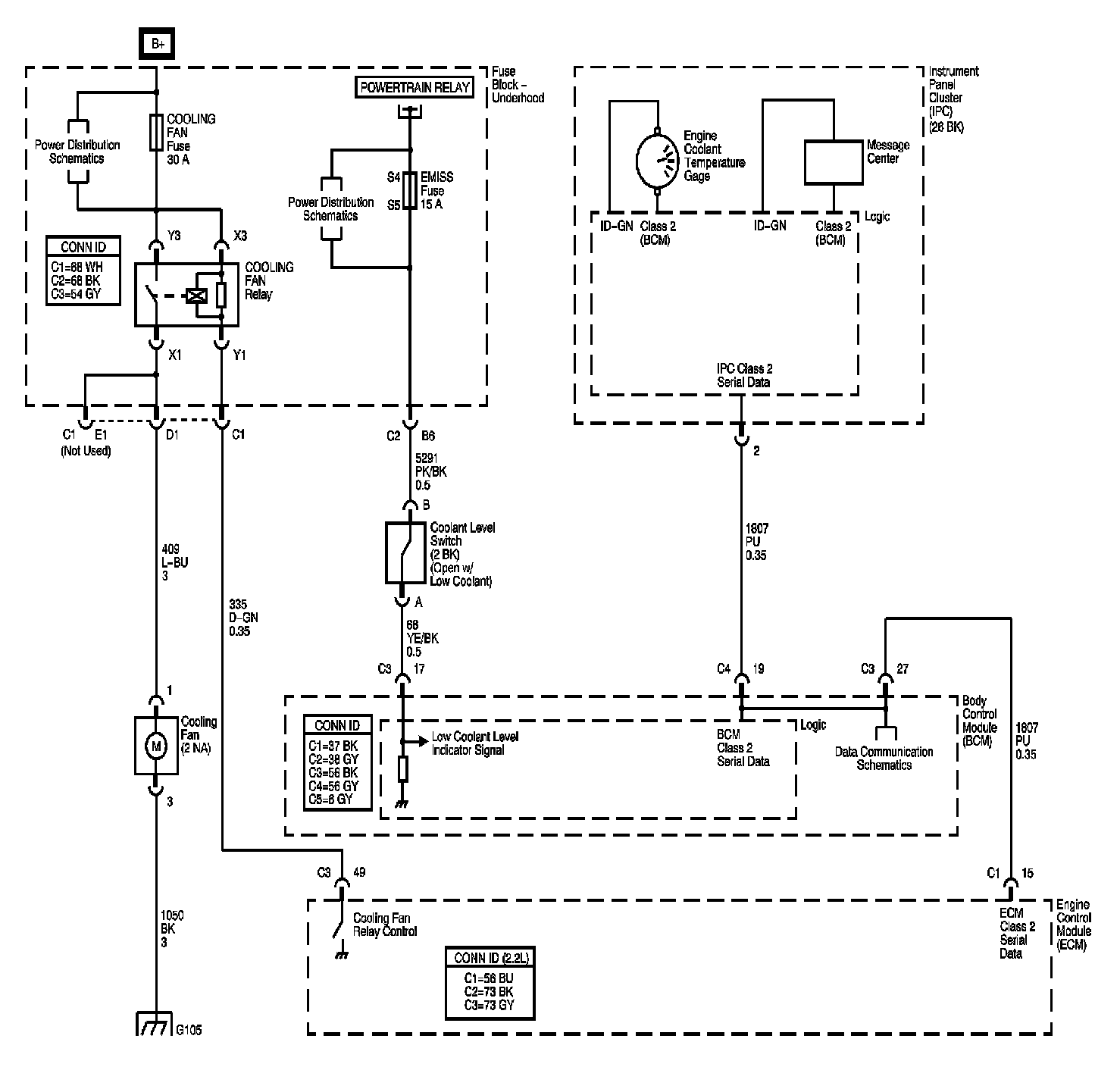

Engine Cooling Schematics

Engine Cooling Schematics 2.2L:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
