Flow Diagrams

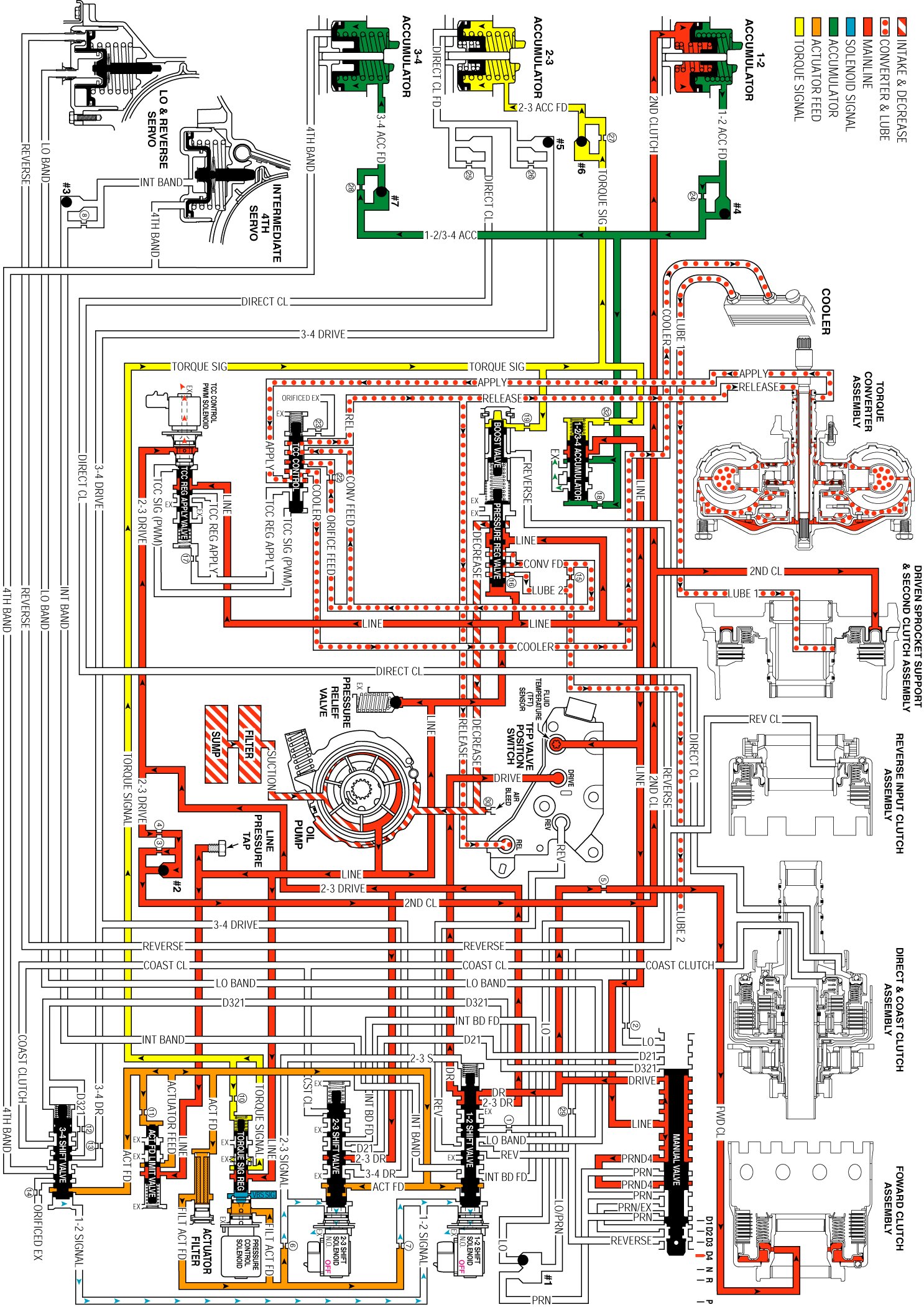

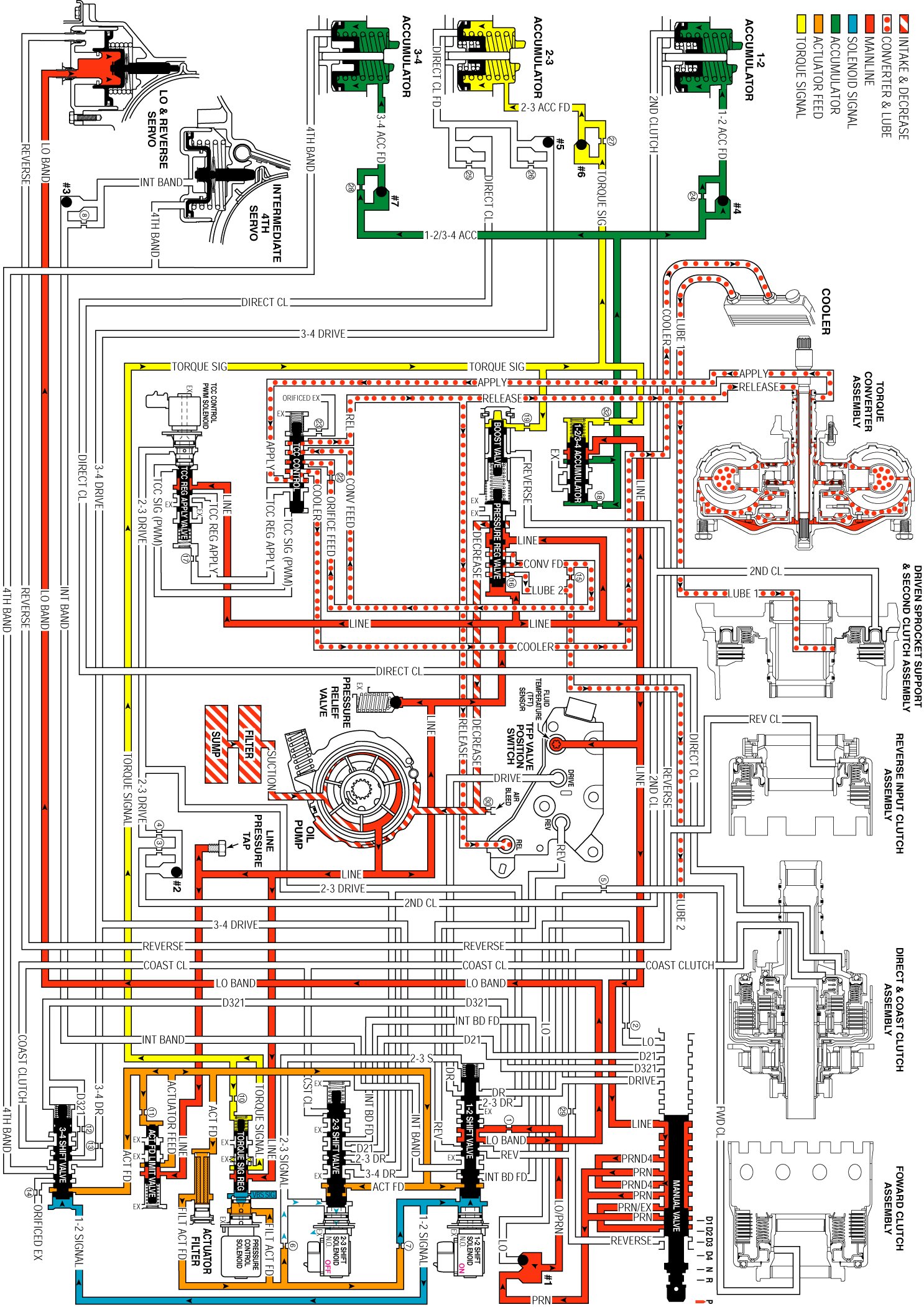

Park - Engine Running - Without Electronic Range Select Mode:

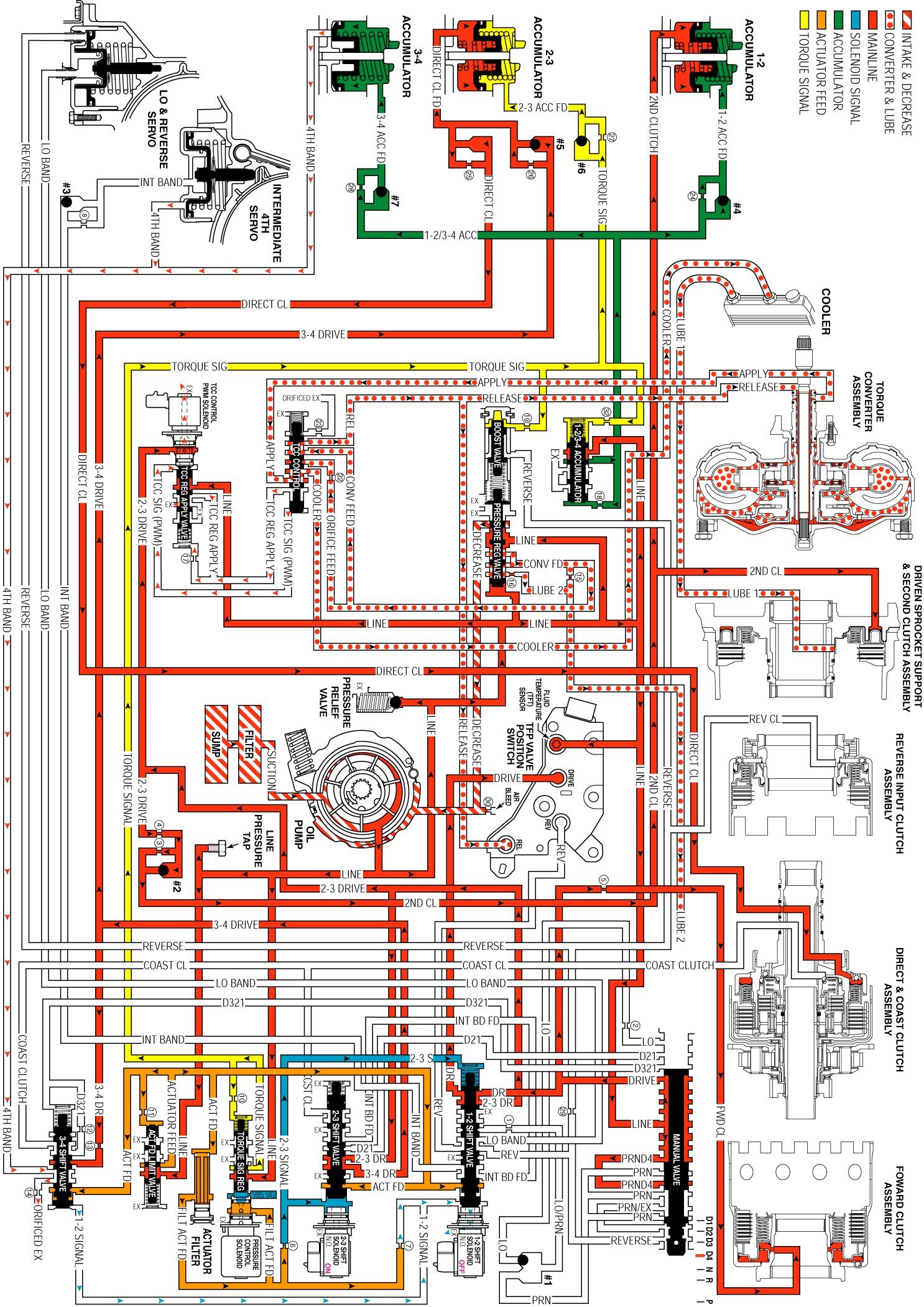

Reverse - Without Electronic Range Select Mode:

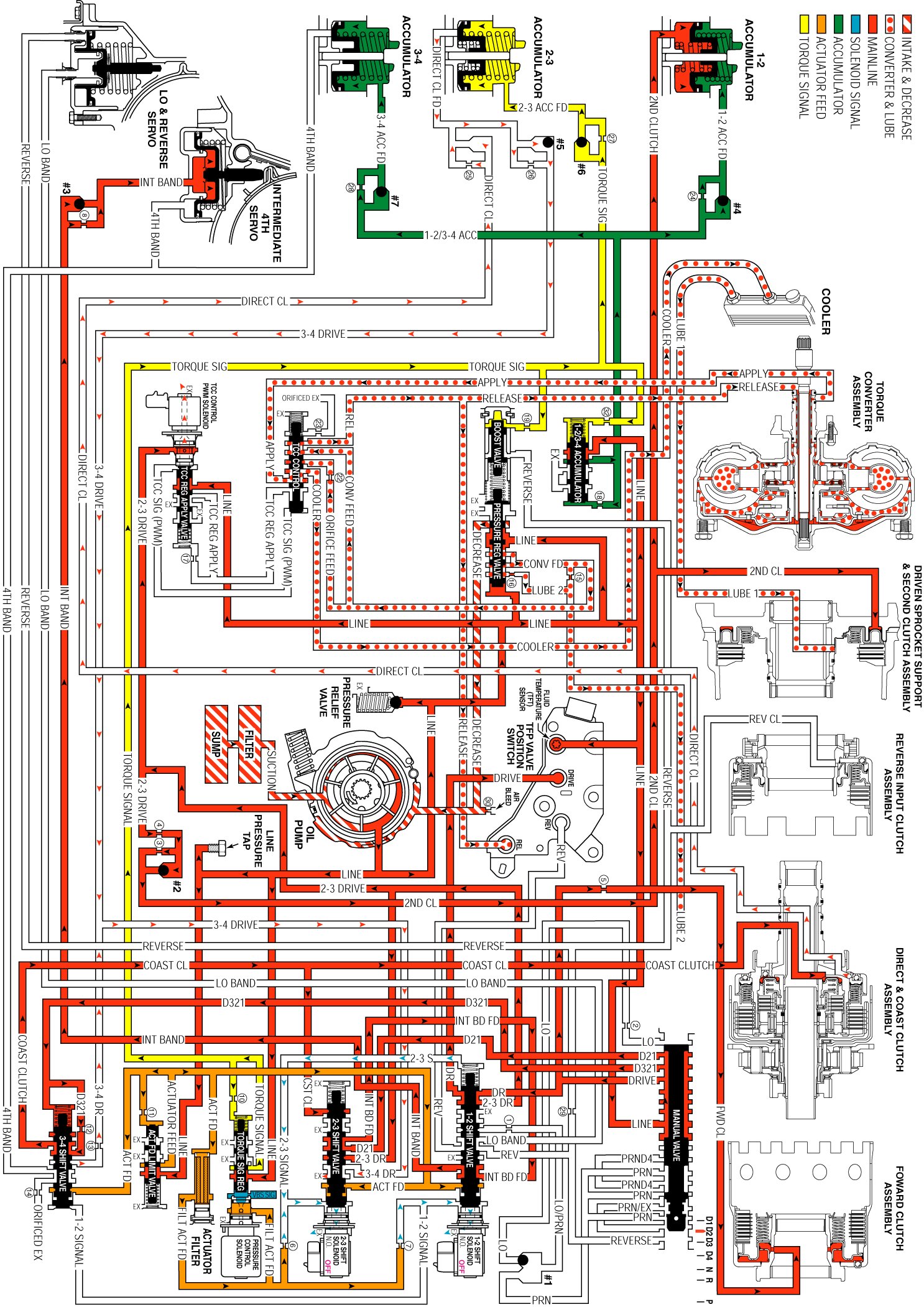

Overdrive Range, First Gear - Without Electronic Range Select Mode:

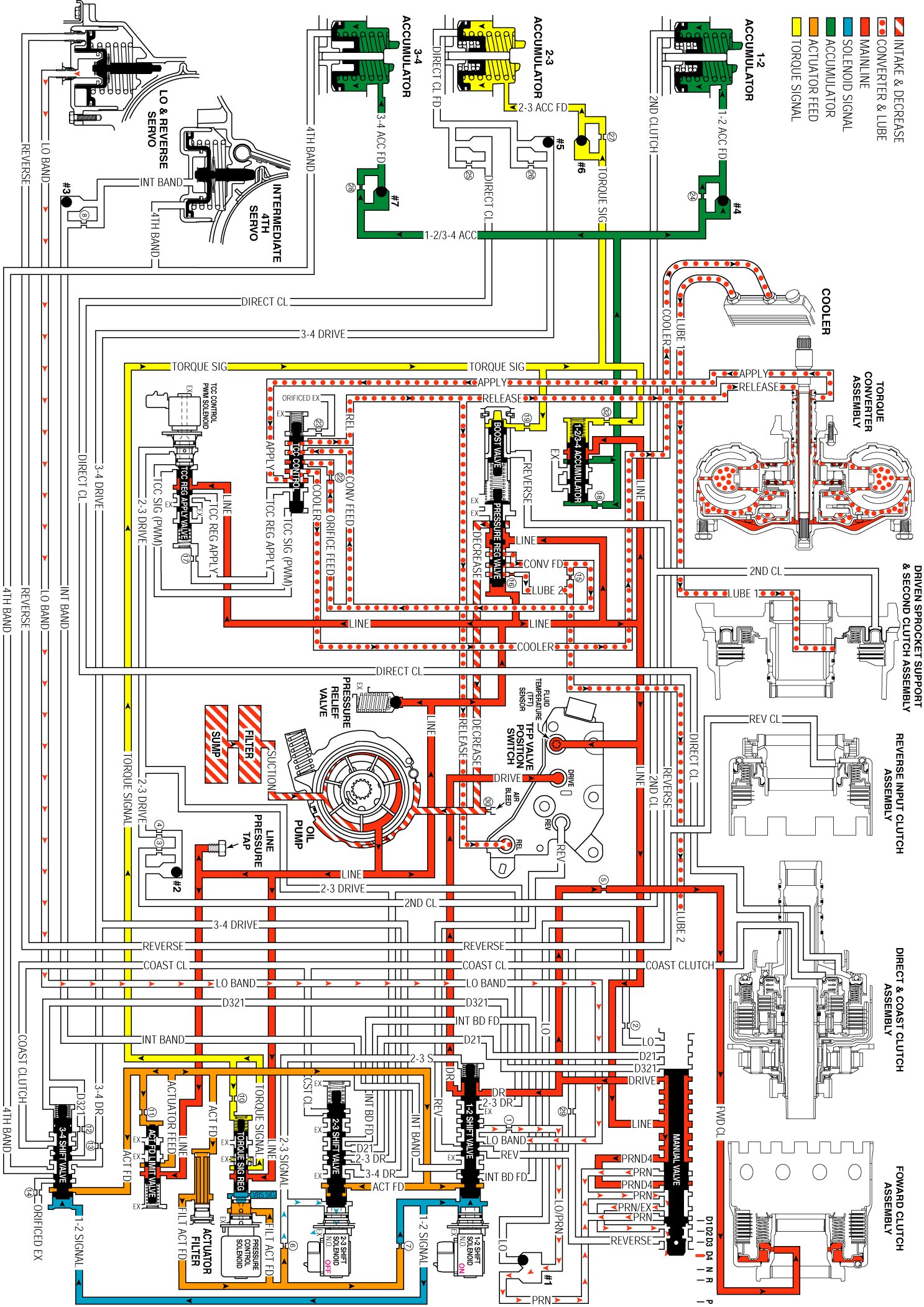

Overdrive Range, Second Gear - Without Electronic Range Select Mode:

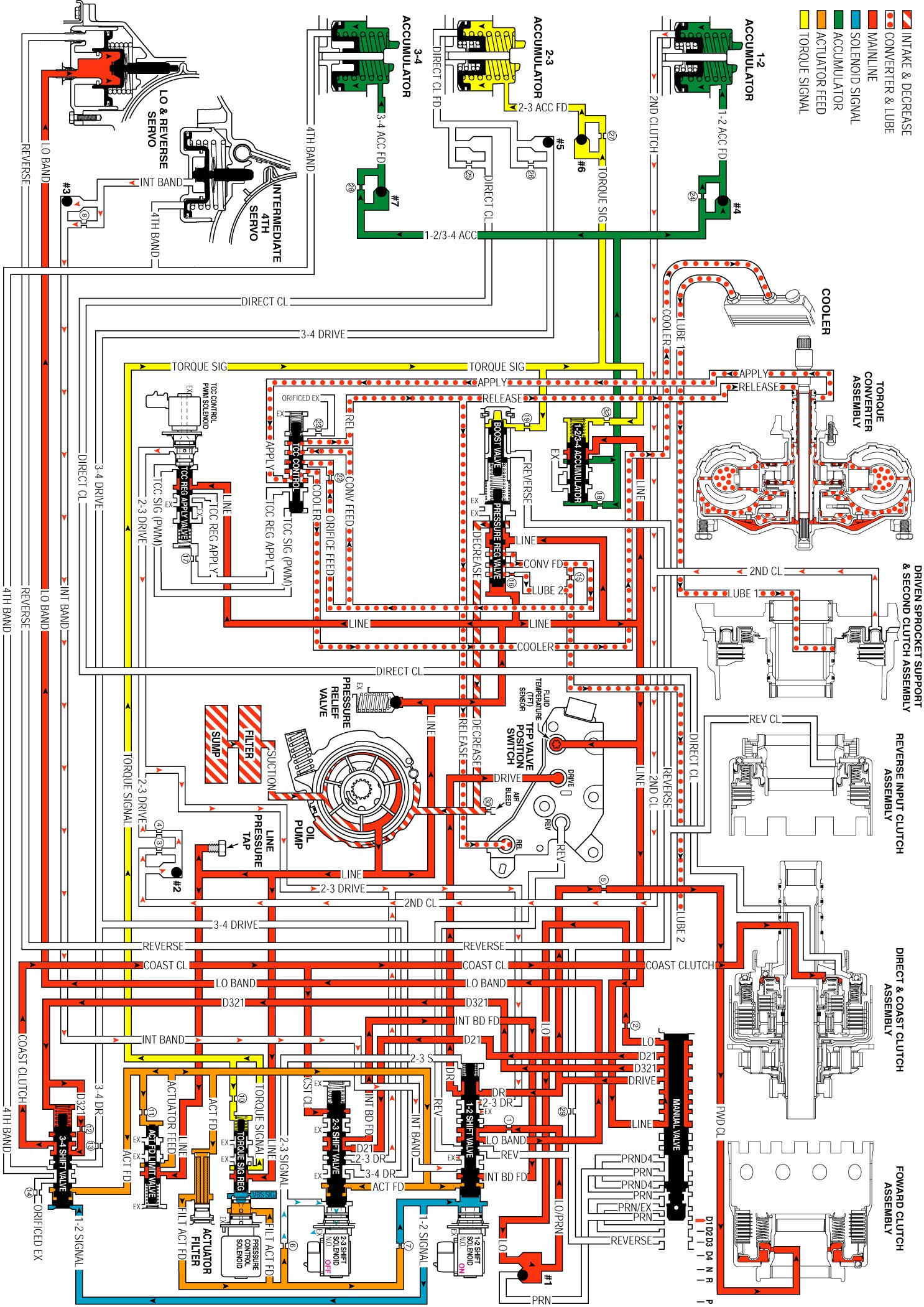

Overdrive Range, Third Gear - TCC Not Applied - Without Electronic Range Select Mode:

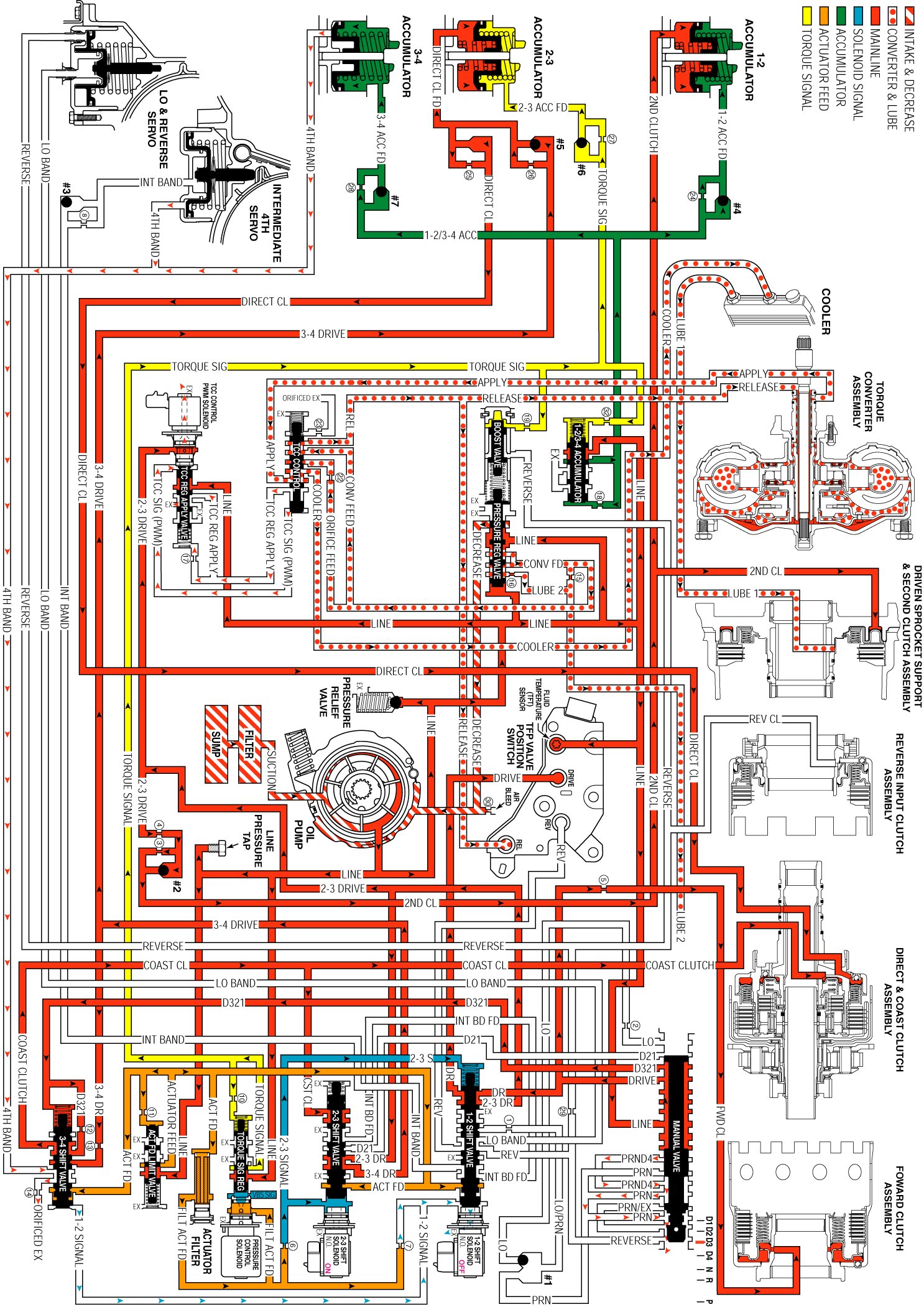

Overdrive Range, Fourth Gear - TCC Applied - Without Electronic Range Select Mode:

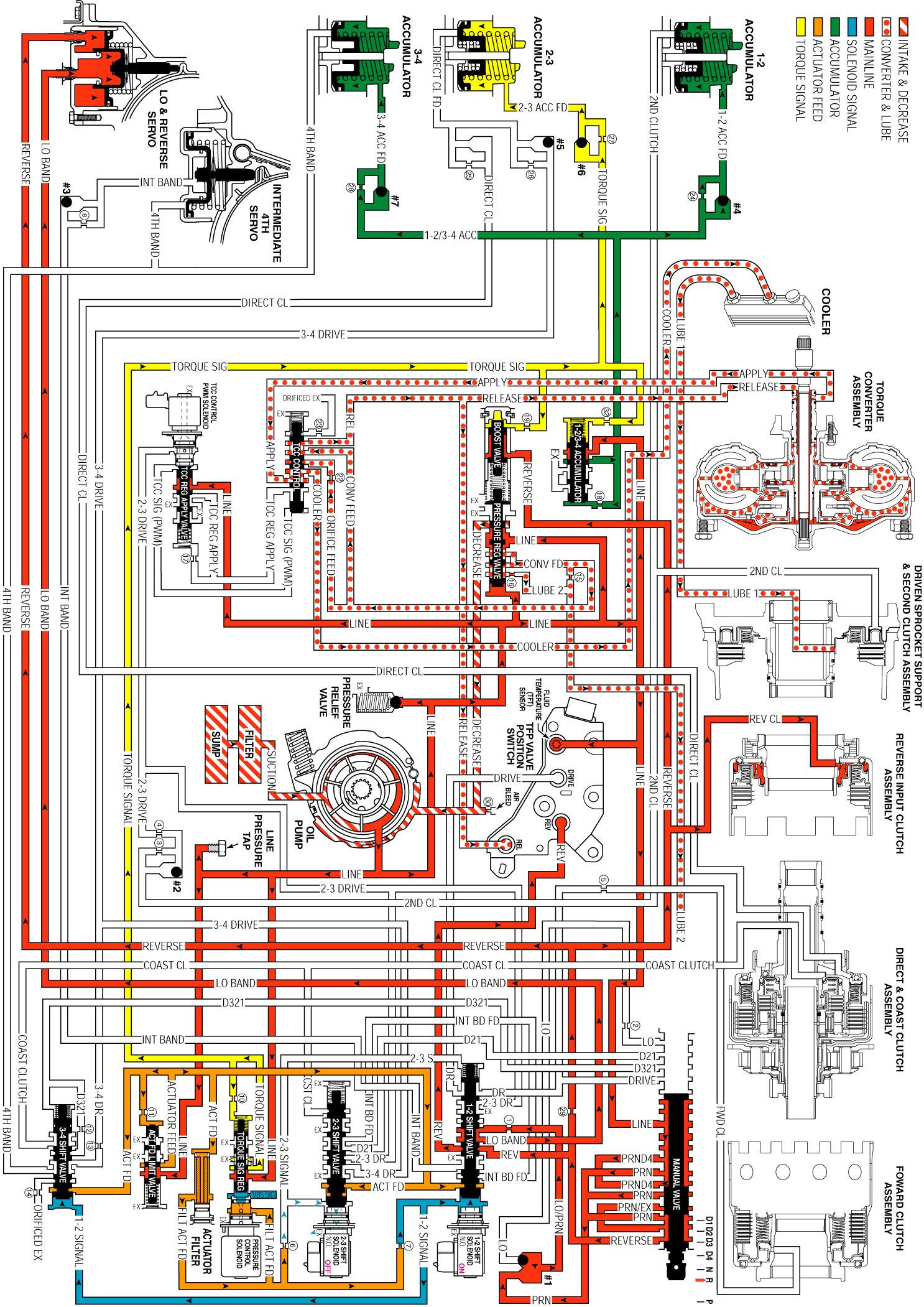

Overdrive Range, 4-3 Downshift - TCC Not Applied - Without Electronic Range Select Mode:

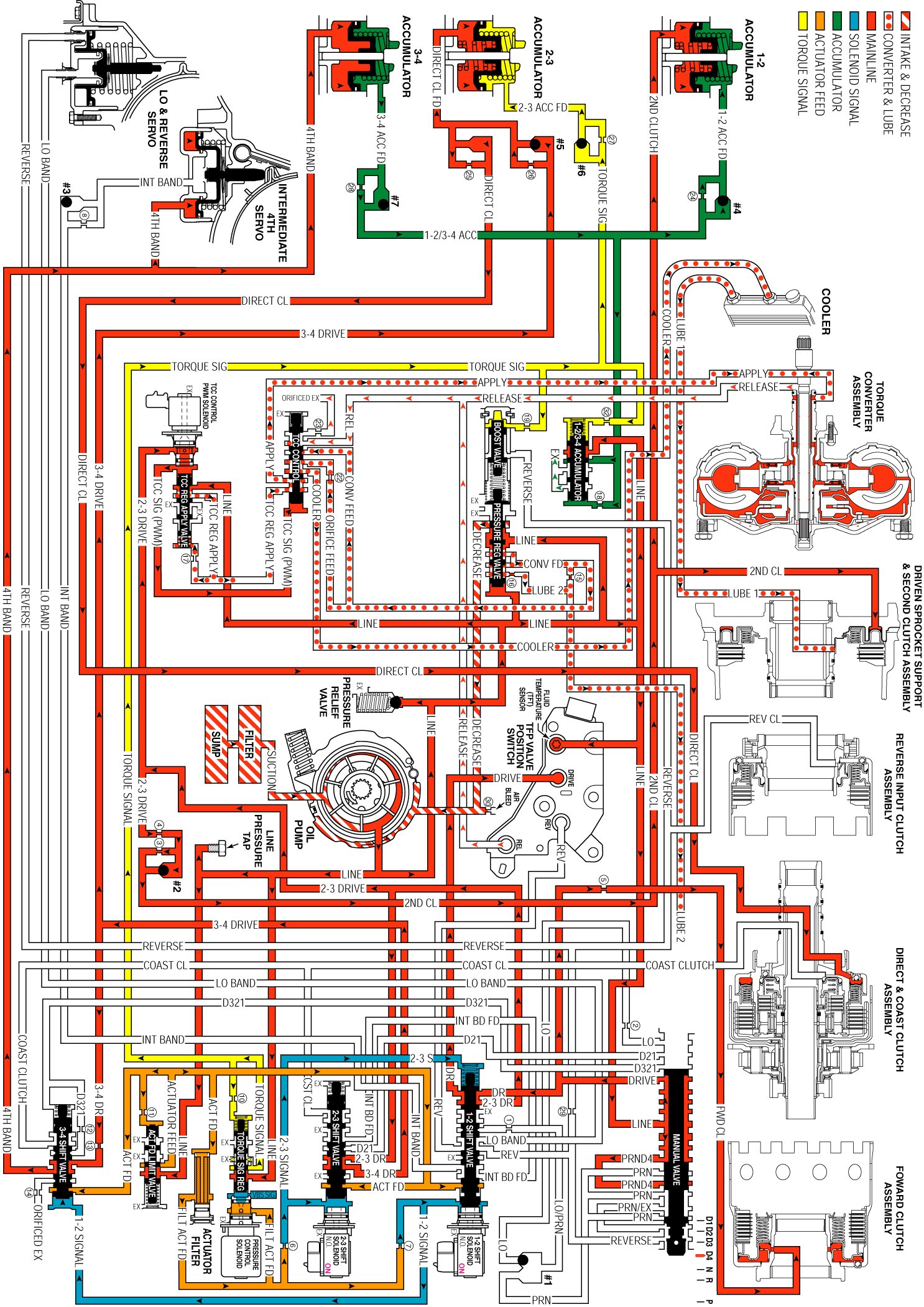

Drive Range, Manual 3rd (from Overdrive Range) - Without Electronic Range Select Mode:

Drive Range, Manual 2nd (from Drive, Manual 3rd) - Without Electronic Range Select Mode:

Drive Range, Manual 1st (from Drive, Manual 2nd) - Without Electronic Range Select Mode:
