Radiator Inlet Hose Replacement

Radiator Inlet Hose Replacement (2.2L (L61), 2.4L (LE5) )

Tools Required

SA9111EHose Clamp Pliers

Removal Procedure

1. Drain the cooling system.
2. Lower the vehicle.
3. Remove the air cleaner outlet resonator.




4. Reposition the radiator inlet hose clamp at the radiator using SA9111E.
5. Remove the radiator inlet hose from the radiator.

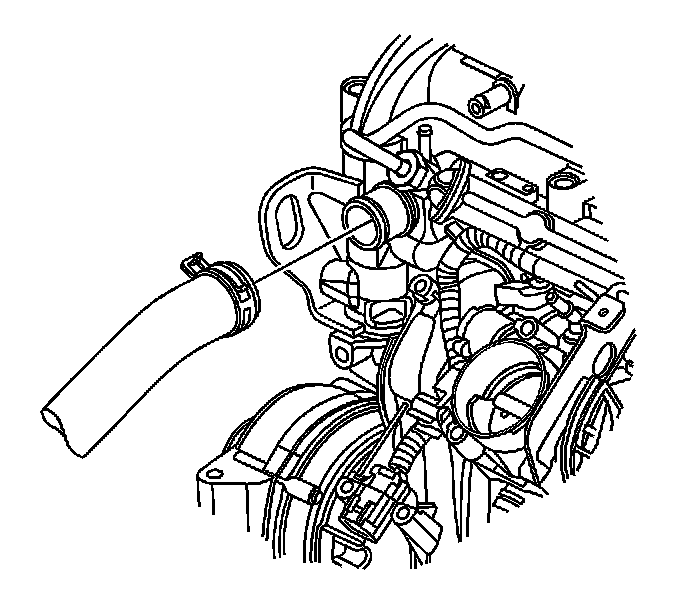

6. Reposition the radiator inlet hose clamp at the engine using SA9111E.
7. Remove the radiator inlet hose from the engine.

Installation Procedure




1. Install the radiator inlet hose to the radiator.
2. Reposition the radiator inlet hose clamp to secure the hose using SA9111E.




3. Install the radiator inlet hose to the engine.
4. Reposition the radiator inlet hose clamp to secure the hose using SA9111E.
5. Install the air cleaner outlet resonator.
6. Fill the cooling system.
