Installation Procedure

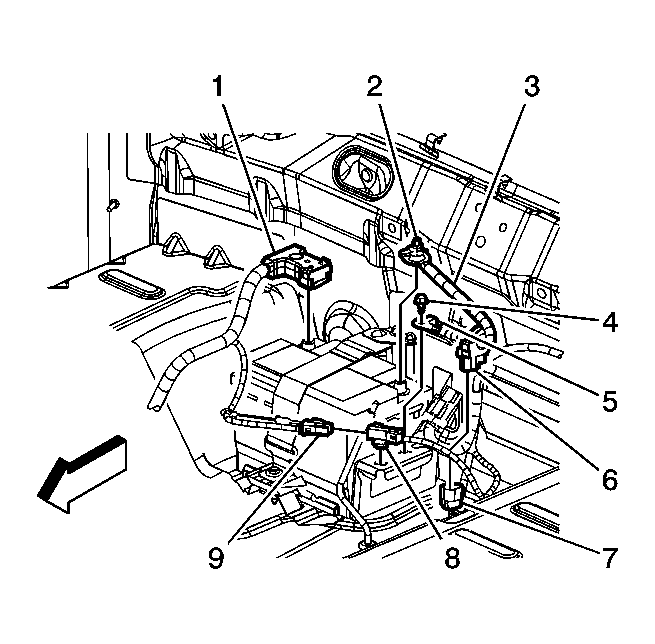

Fig 1: View Of Battery Connections

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.

Position the negative battery cable (3) to the battery.

NOTE: Refer to Fastener Notice .

Tighten the negative battery cable bolt (2).
Tighten: Tighten the bolt to 17 N.m (13 lb ft).
Install the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
Reset the radio stations and the clock.
