Installation Procedure

    Fig 1: View Of Generator
    GM1381708Courtesy of GENERAL MOTORS CORP.
  1. Position the generator to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the generator bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

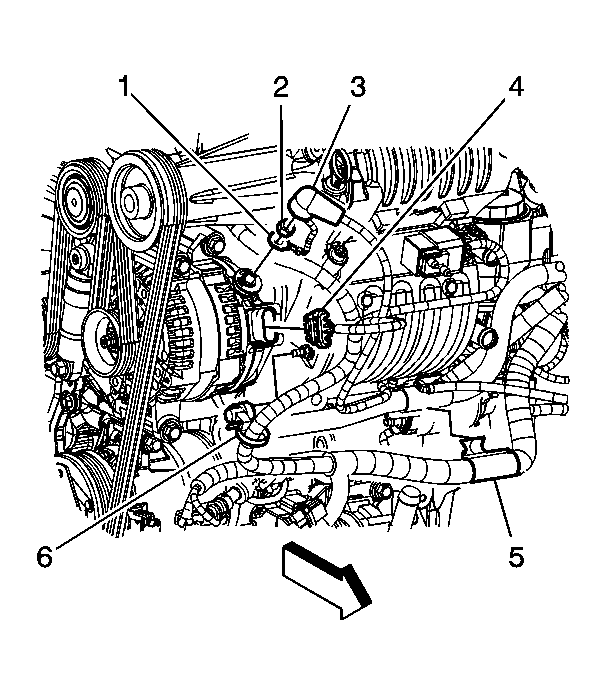

    3. Fig 2: Identifying Engine Harness Electrical Connector
    GM1650527Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine harness electrical connector (4) to the generator.
  4. Install the generator harness terminal (1) to the generator.
  5. Install the generator harness nut (2).

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  6. Position the generator harness boot (3).
  7. Install the supercharger. Refer to Supercharger Replacement .
  8. Connect negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
