Engine Controls Component Views

WARNING: This page is about a different car, the 2007 Saturn Ion 3 and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

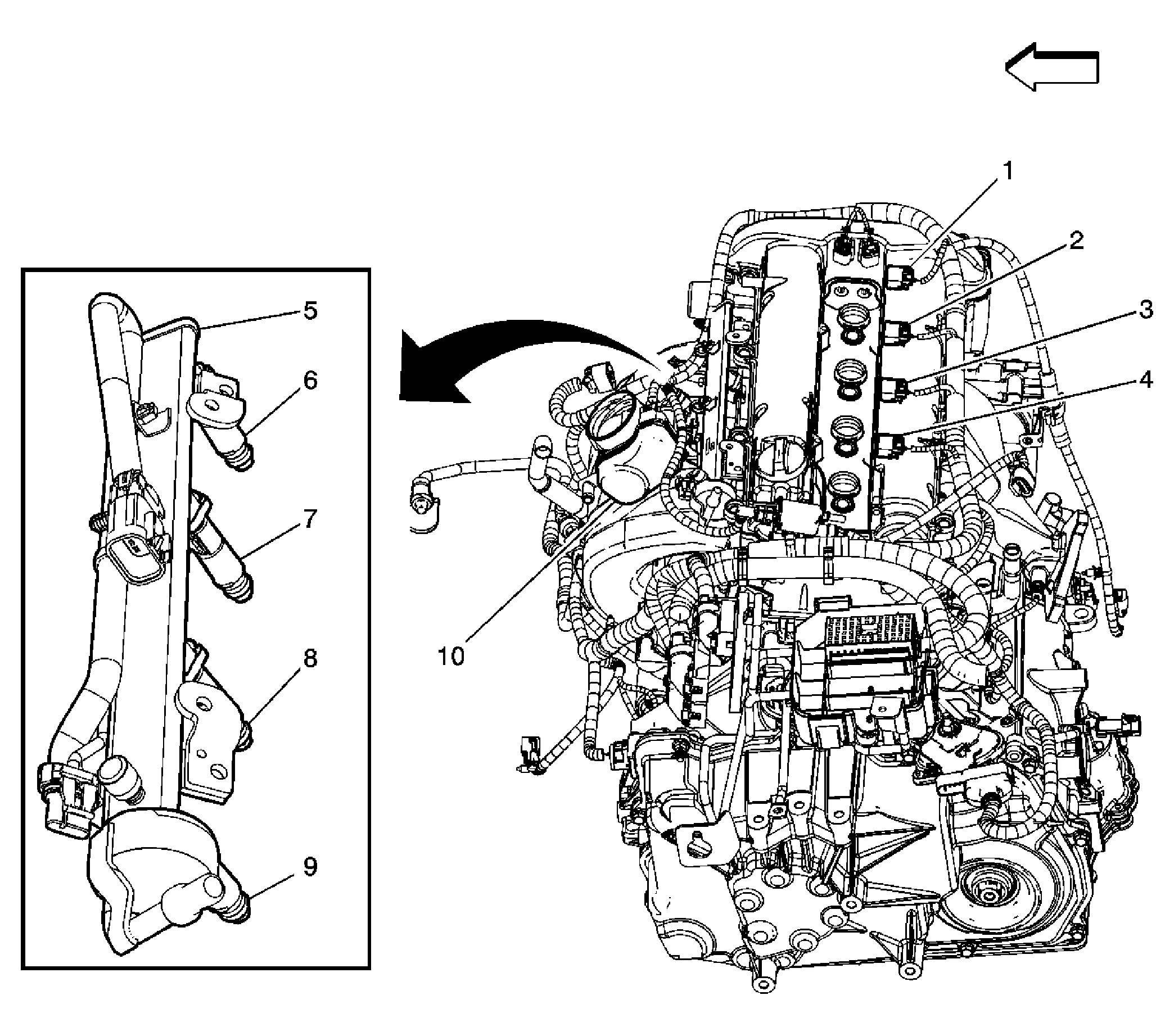

Fig 1: Left Side View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil 1
2	Ignition Coil 2
3	Ignition Coil 3
4	Ignition Coil 4
5	Fuel Rail
6	Fuel Injector 1
7	Fuel Injector 2
8	Fuel Injector 3
9	Fuel Injector 4
10	Throttle Body

Fig 2: Front Left Side of the Engine (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injectors Rail
2	Throttle Body
3	Manifold Absolute Pressure (MAP) Sensor
4	Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
5	G105 (2.0L Similar)
6	Crankshaft Position (CKP) Sensor
7	Knock Sensor (KS)
8	C150

Fig 3: Rear Of Engine Component View (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (M86)
2	Engine Coolant Tempareture Sensor (ECT)
3	Heated Oxygen Sensor (HO2S)1
4	Heated Oxygen Sensor (HO2S)2 Connector

Fig 4: Top Front Of Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 1
2	Fuel Injector 2
3	Fuel Injector 3
4	Fuel Injector 4

Fig 5: Right Rear Side Under Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C406
2	Fuel Tank Pressure Sensor
3	Evaporative Emission (EVAP) Canister Vent Solenoid

Fig 6: Lower LF Of Passenger Compartment Routing View (2.0L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	C220 (w/2.0L)

Fig 7: Fuel Pump and Sender Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly
2	Fuel Pump Strainer
3	Fuel Level Sensor

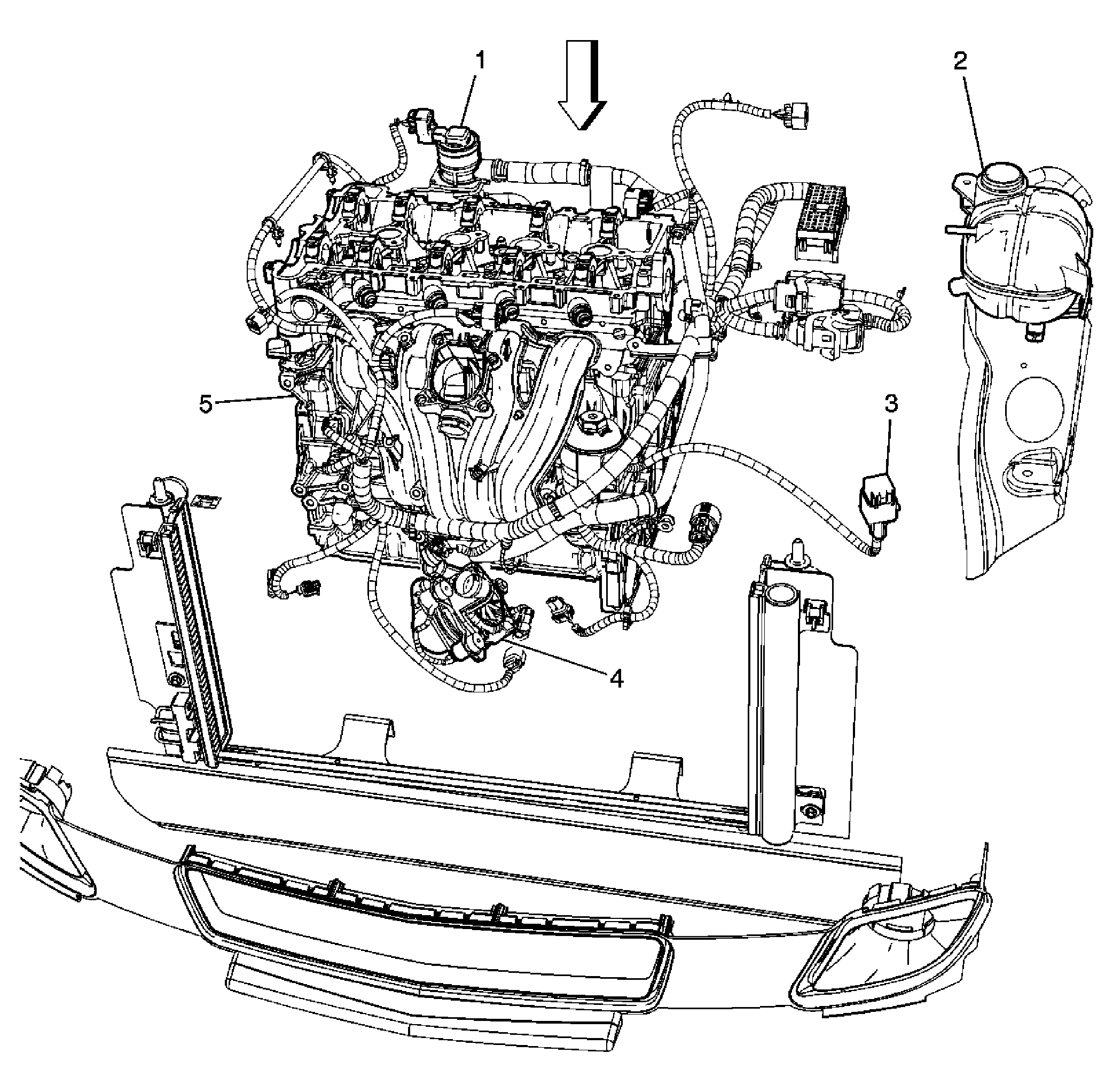

Fig 8: Secondary Air Injection (AIR) Components (NU3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Secondary Air Injection (AIR) Solenoid (NU6)
2	Coolant Overflow Container
3	Secondary Air Injection (AIR) Relay (NU6)
4	Secondary Air Injection (AIR) Pump (NU6)
5	Engine Block
