Installation Procedure
WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

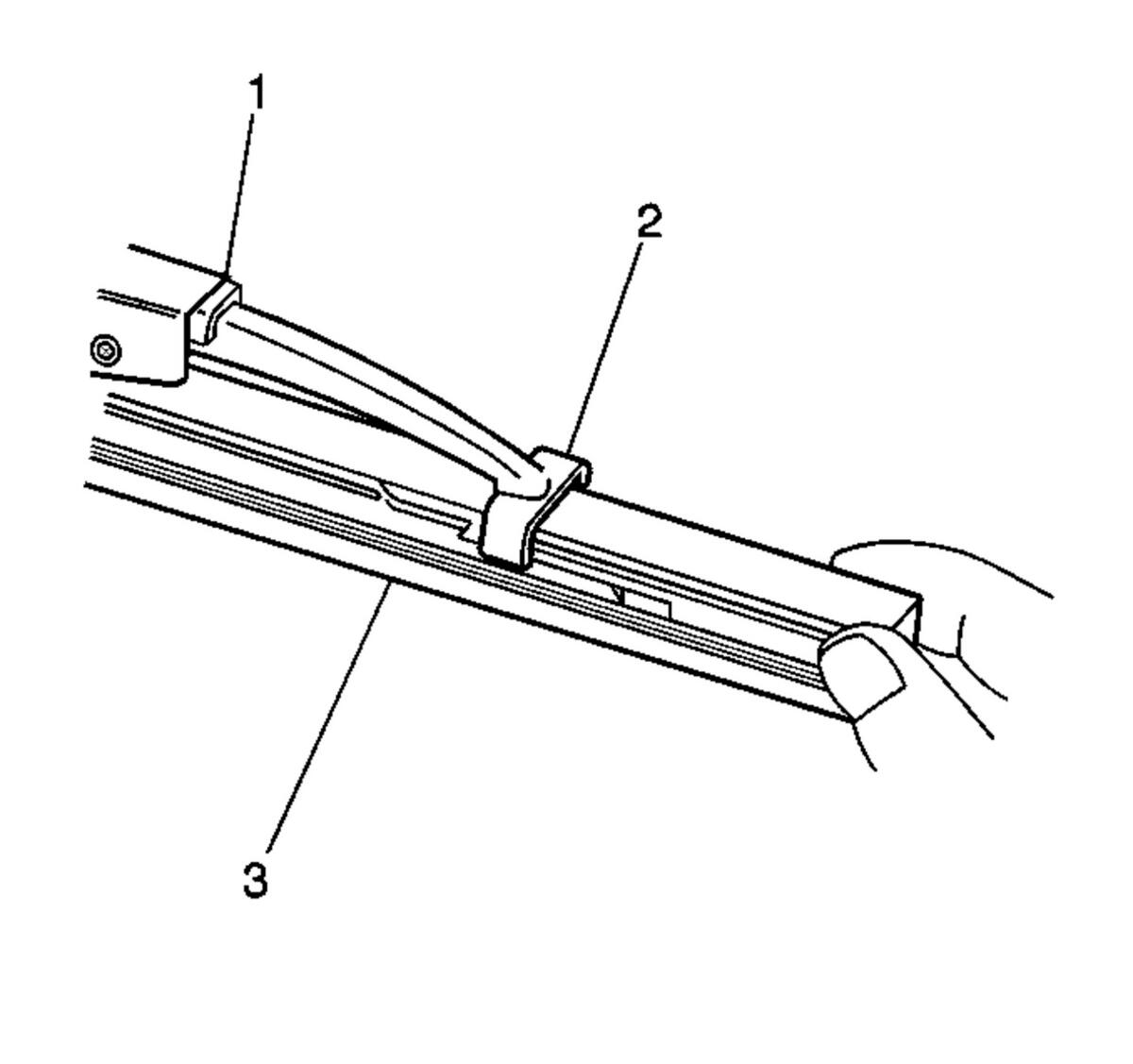

- Insert the open end of the wiper blade element (3) into the bottom claws of the wiper blade (2).
- Guide the wiper blade element (3) through the wiper blade (1) claw sets.
- Engage the bottom claw (2) of the wiper blade (1) into the notches in wiper blade element (3).
- Install the wiper blade onto the wiper arm. Refer to Wiper Arm Blade Replacement .
IMPORTANT:
Keep the wiper blade claws in the rubber claw channel of the wiper blade element. Do not allow the claws of the wiper blade to contact the metal spline of the wiper blade element.
