Cruise Control Schematics

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

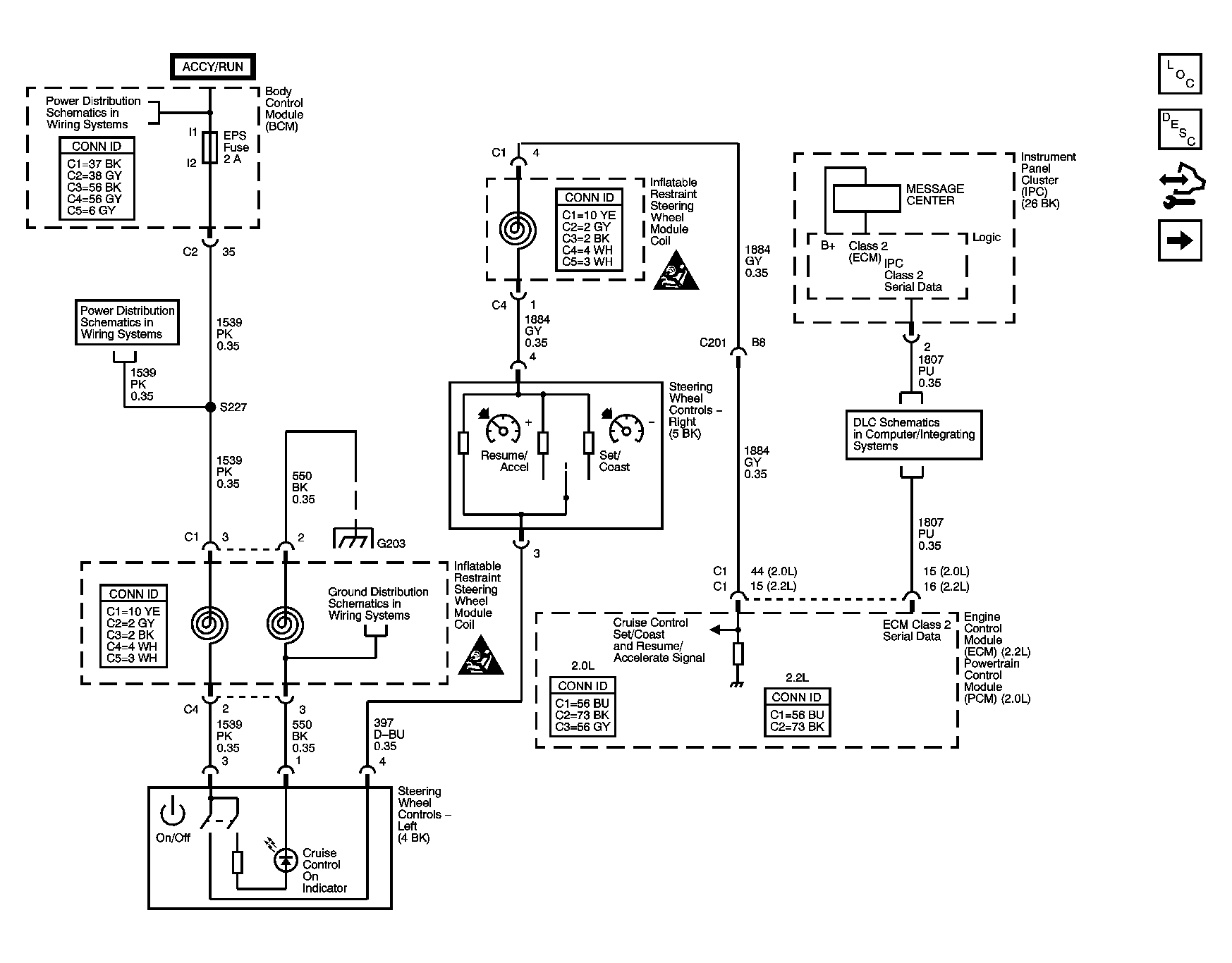

Fig 1: Driver Controls Schematic

Courtesy of GENERAL MOTORS CORP.

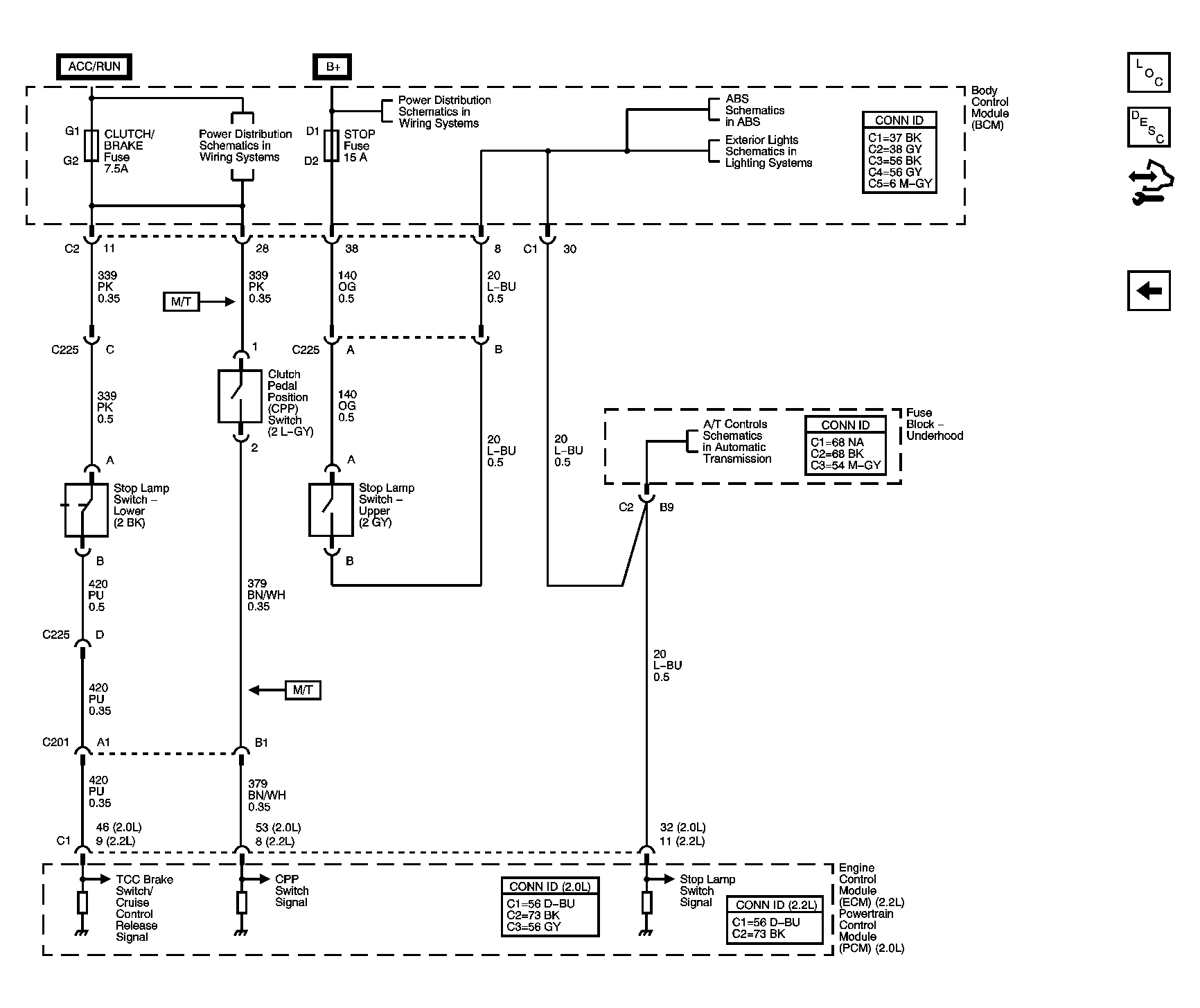

Fig 2: Stop Lamp And Clutch Switches Schematic

Courtesy of GENERAL MOTORS CORP.
