Installation Procedure

  1. Lubricate a new O-ring with DEXRON III transmission fluid Saturn P/N 121019223.
  2. Install the new O-ring.
    3. Fig 1: View Of Vehicle Speed Sensor & Bolt
    GM658863Courtesy of GENERAL MOTORS CORP.
  3. Install the VSS retainer.

    Install the vehicle speed sensor (VSS) assembly.

    4. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the VSS retainer bolt.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

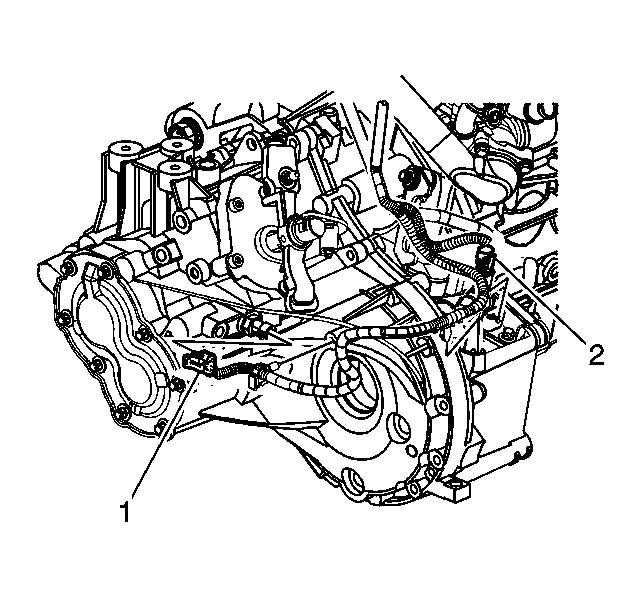

    5. Fig 2: Locating Backup Light Connector & VSS Connector
    GM857190Courtesy of GENERAL MOTORS CORP.
  5. Connect the VSS connector to the VSS (2).
  6. Install the left front wheel. Refer to Tire and Wheel Removal and Installation (4 Lug Wheel) or Tire and Wheel Removal and Installation (5 Lug Wheel) in Tires and Wheels.
