Central Control Module: Locations

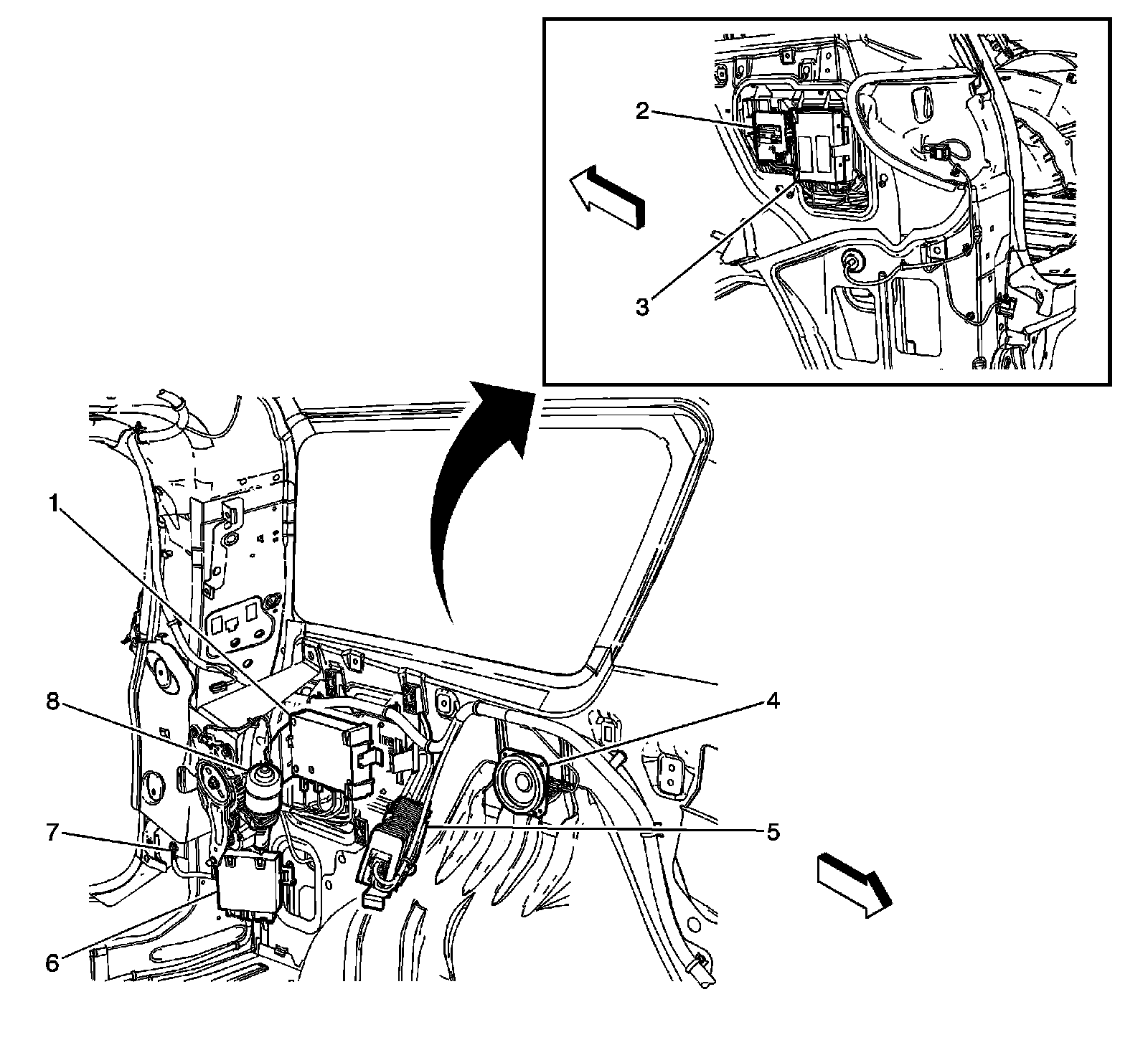

Entertainment/Communication Component Views

LR of the Passenger Compartment




1 - Vehicle Communication Unit (VCU) (UE1)
2 - Rear Parking Assist (RPA) Module (UD7)
3 - Digital Radio Receiver (U2K)
4 - Speaker - LR (UQA/UQ6/UQS)
5 - Accessory AC/DC Power Control Module (KV1)
6 - Liftgate Module (LGM) (E61)
7 - G401
8 - Liftgate Motor Assembly (E61)
