Accessory AC/DC Power Control Module

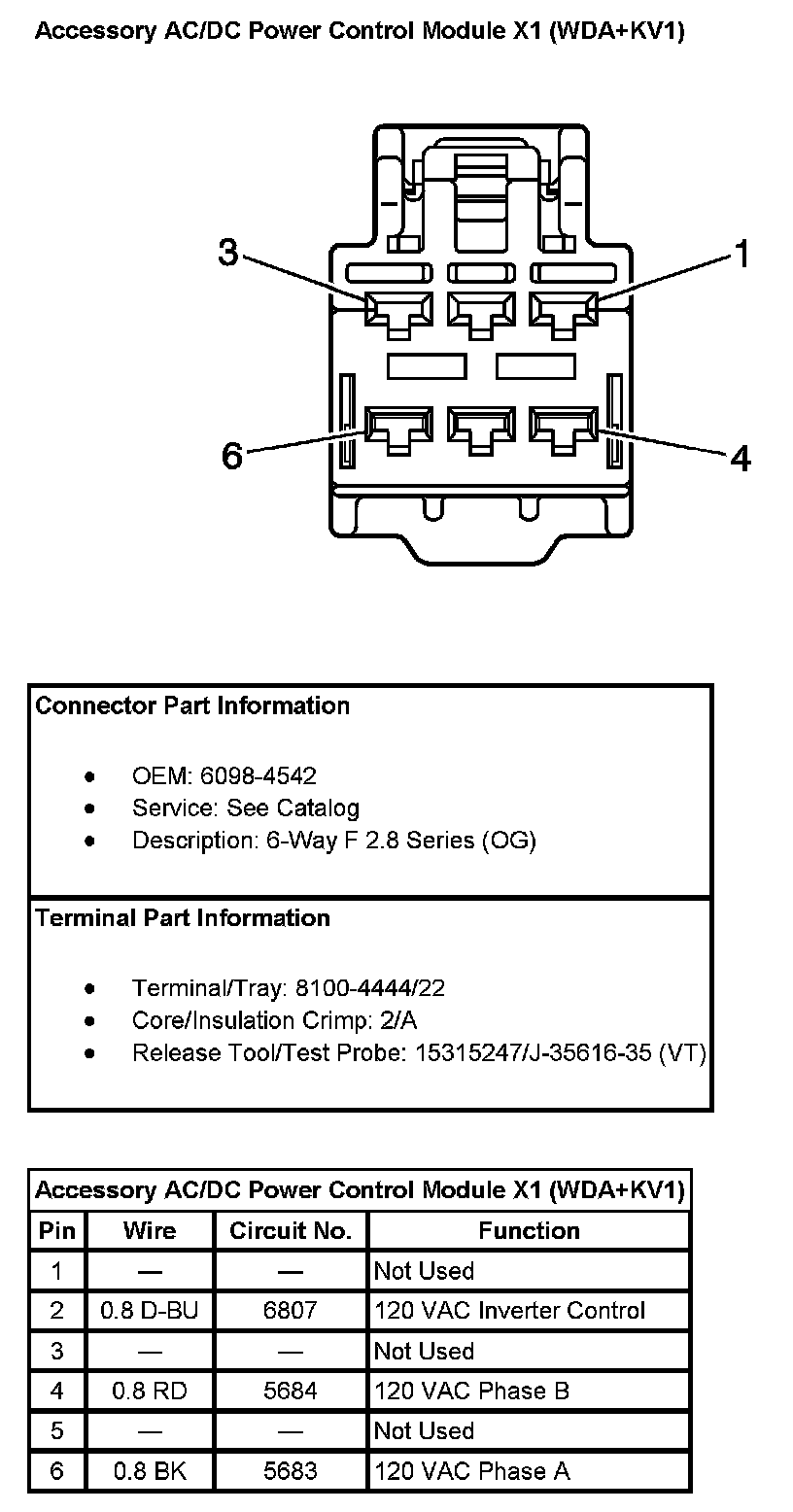

Accessory AC/DC Power Control Module X1 (With RPO Codes WDA & KV1):



Accessory AC/DC Power Control Module X1 (With RPO Codes Z88 + KV1):



Accessory AC/DC Power Control Module X2 (With RPO Codes WDA & KV1):



Accessory AC/DC Power Control Module X2 (With RPO Codes Z88 + KV1):
