Power Mirror Switch

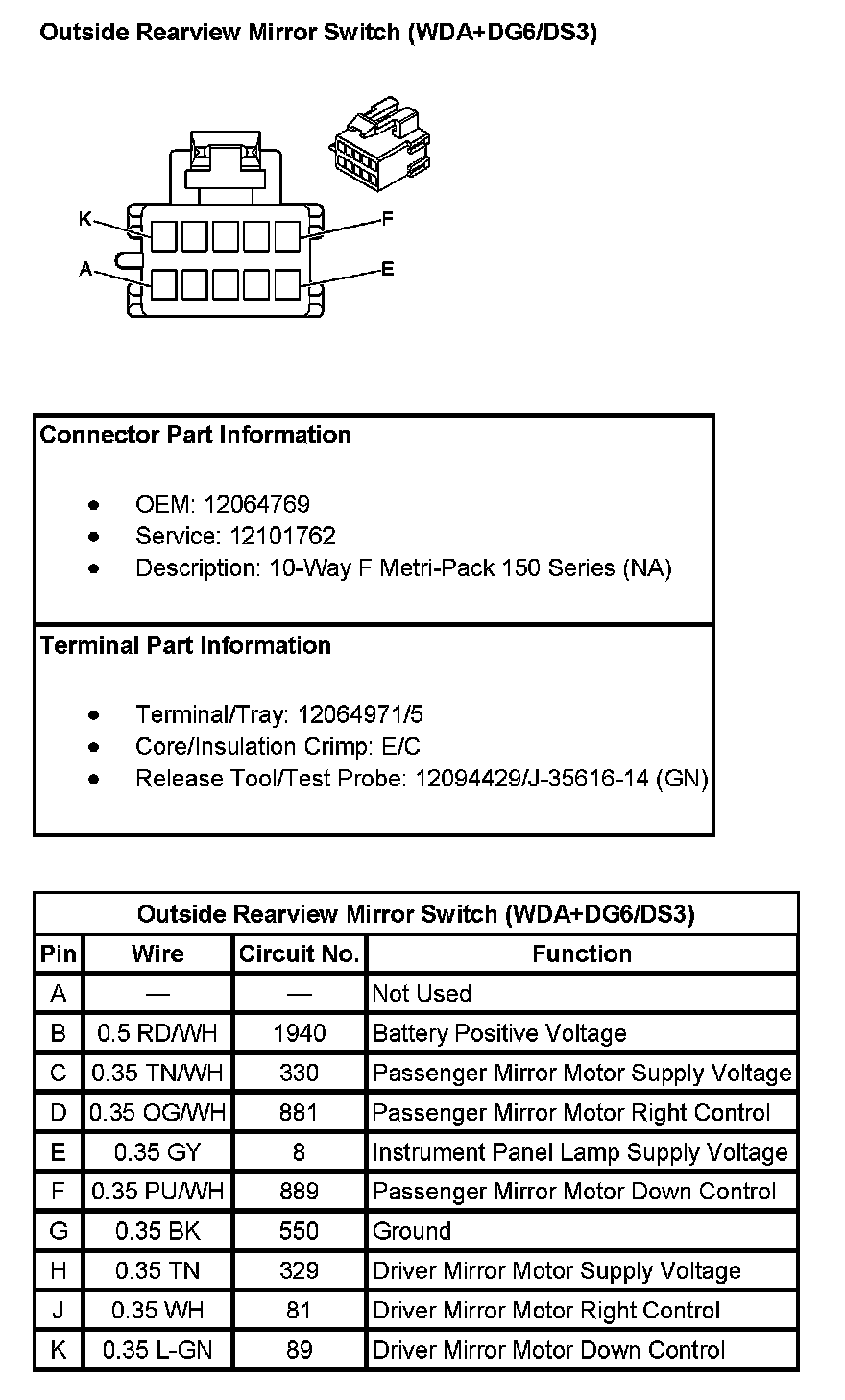

Outside Rearview Mirror Switch (With RPO Codes WDA + DG6 / DS3):

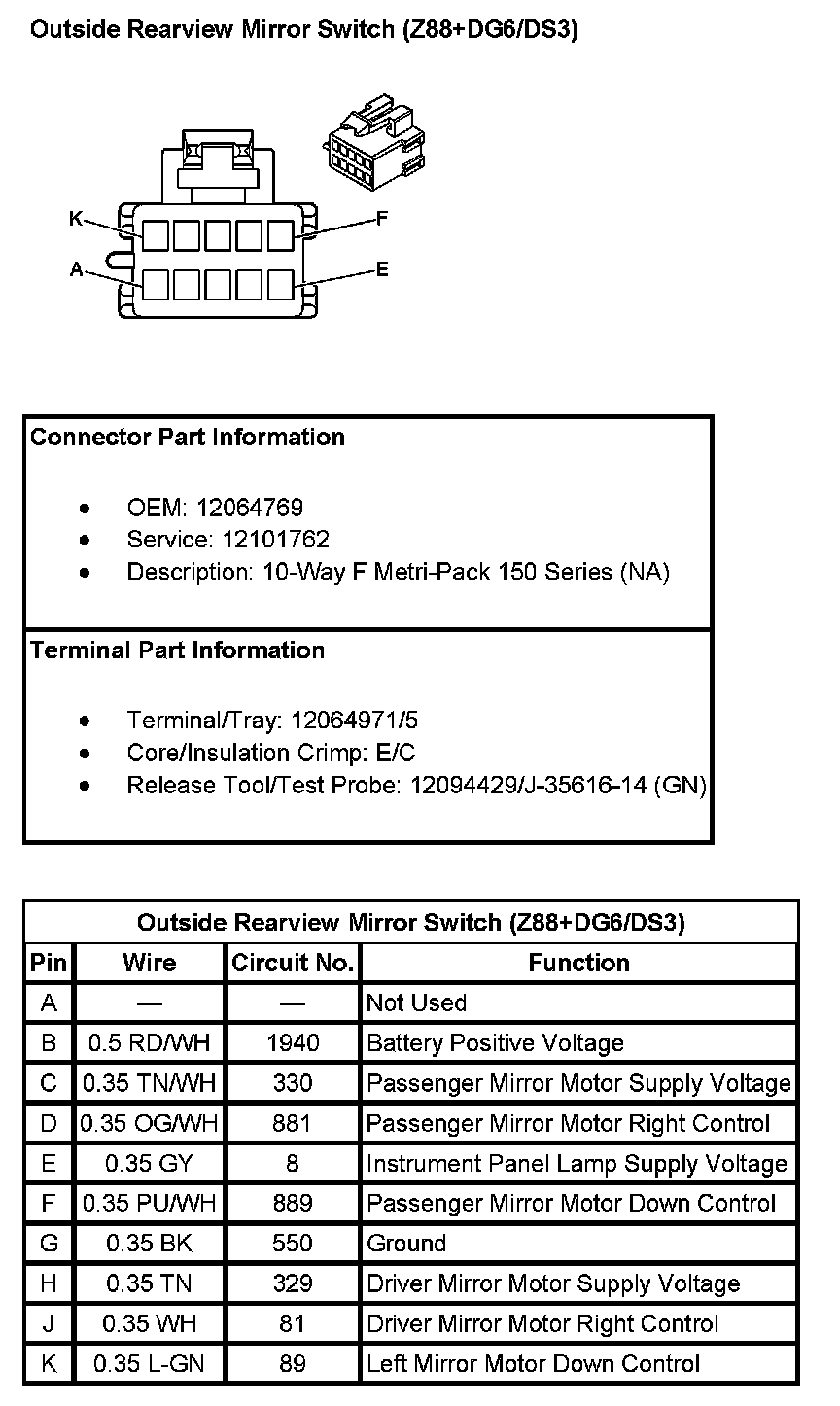

Outside Rearview Mirror Switch (With RPO Codes Z88 + DG6 / DS3):
