Window Motor - Driver

Window Motor - Driver (With RPO Codes WDA & AXA):



Window Motor - Driver (With RPO Codes Z88 & AXA):

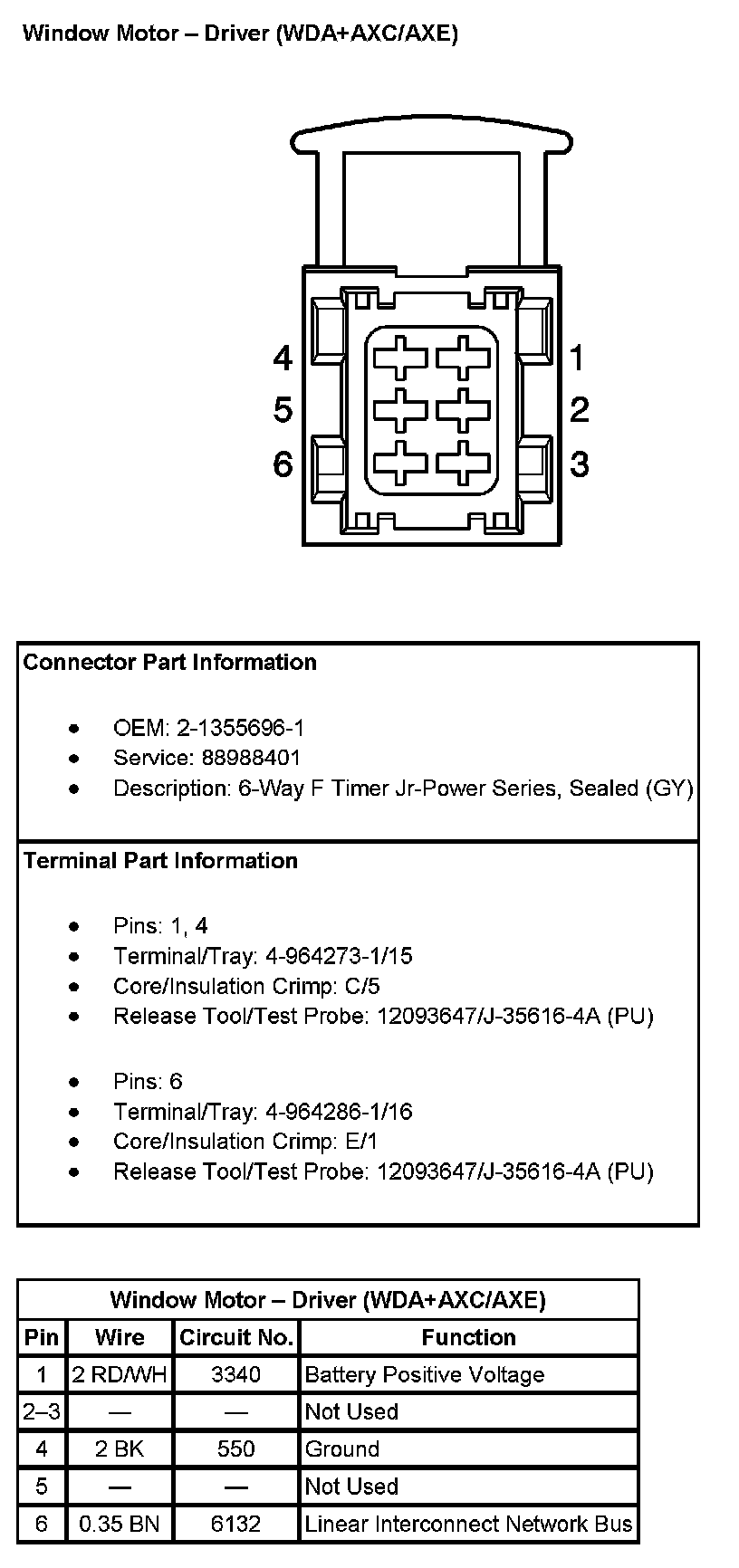

Window Motor - Driver (With RPO Codes WDA & AXC/AXE):

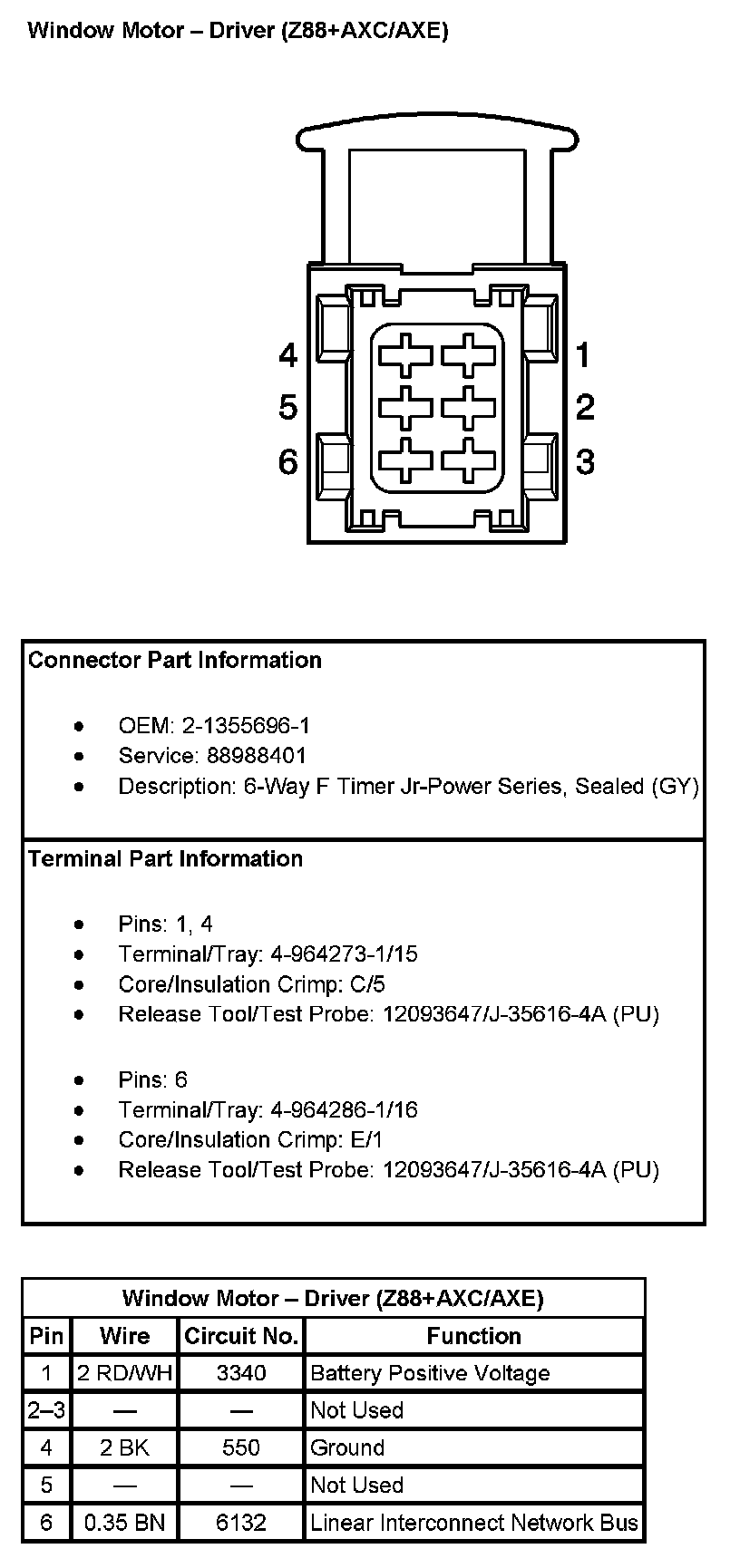

Window Motor - Driver (With RPO Codes Z88 & AXC/AXE):
