Window Switch - Passenger

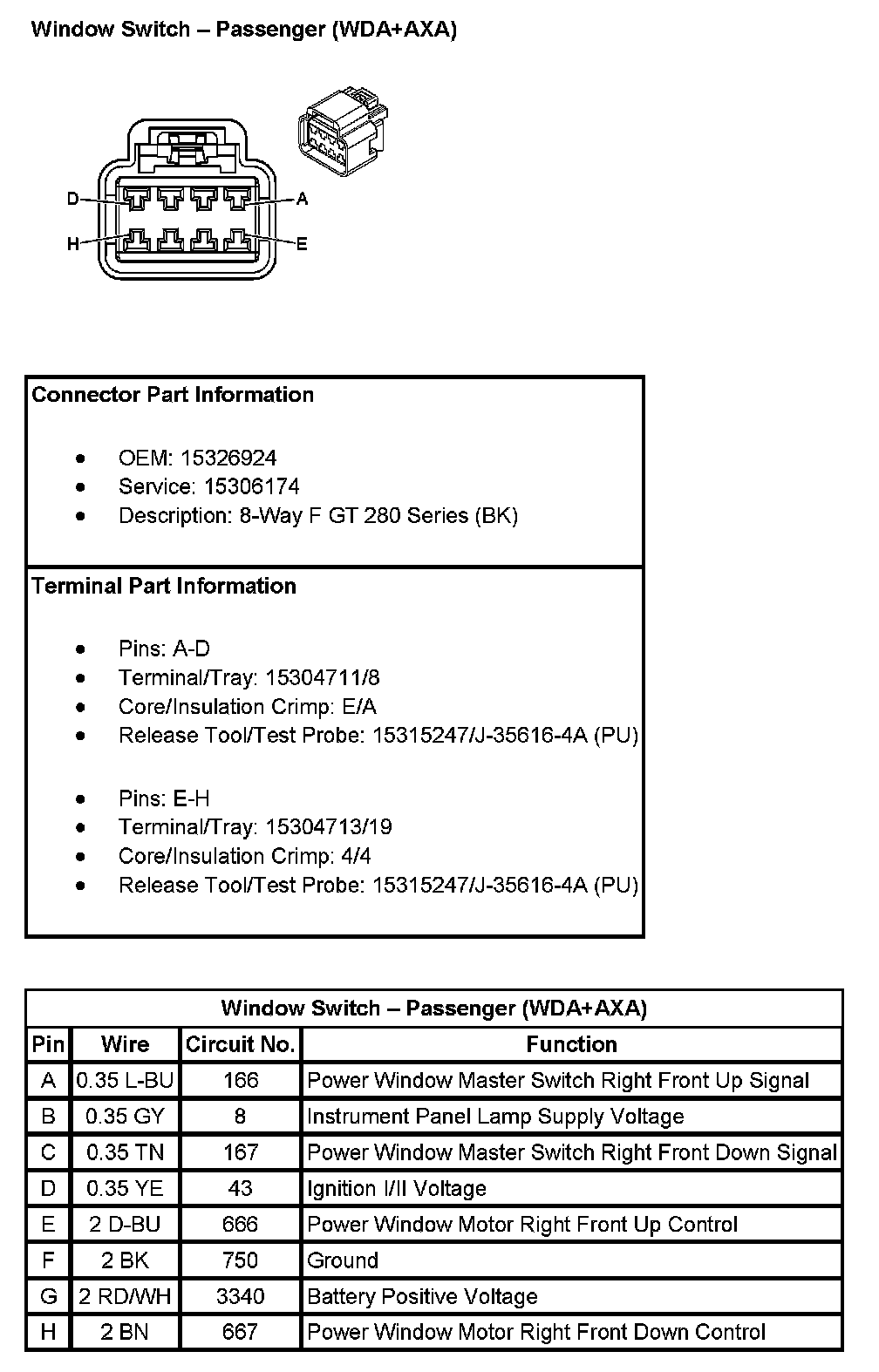

Window Switch - Passenger (With RPO Code WDA & OXO):

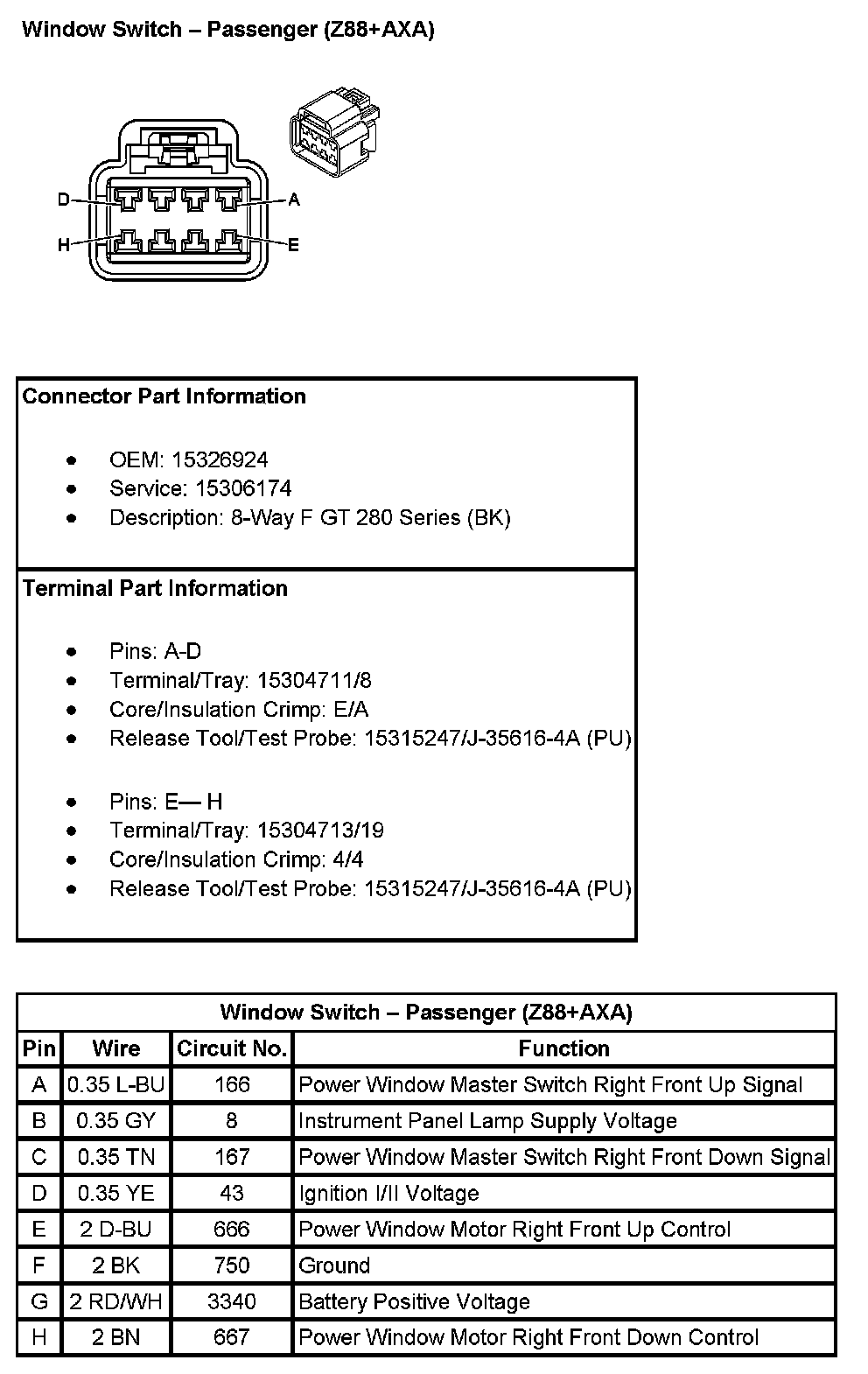

Window Switch - Passenger (With RPO Code Z88 & AXA):
