Trunk / Liftgate Latch

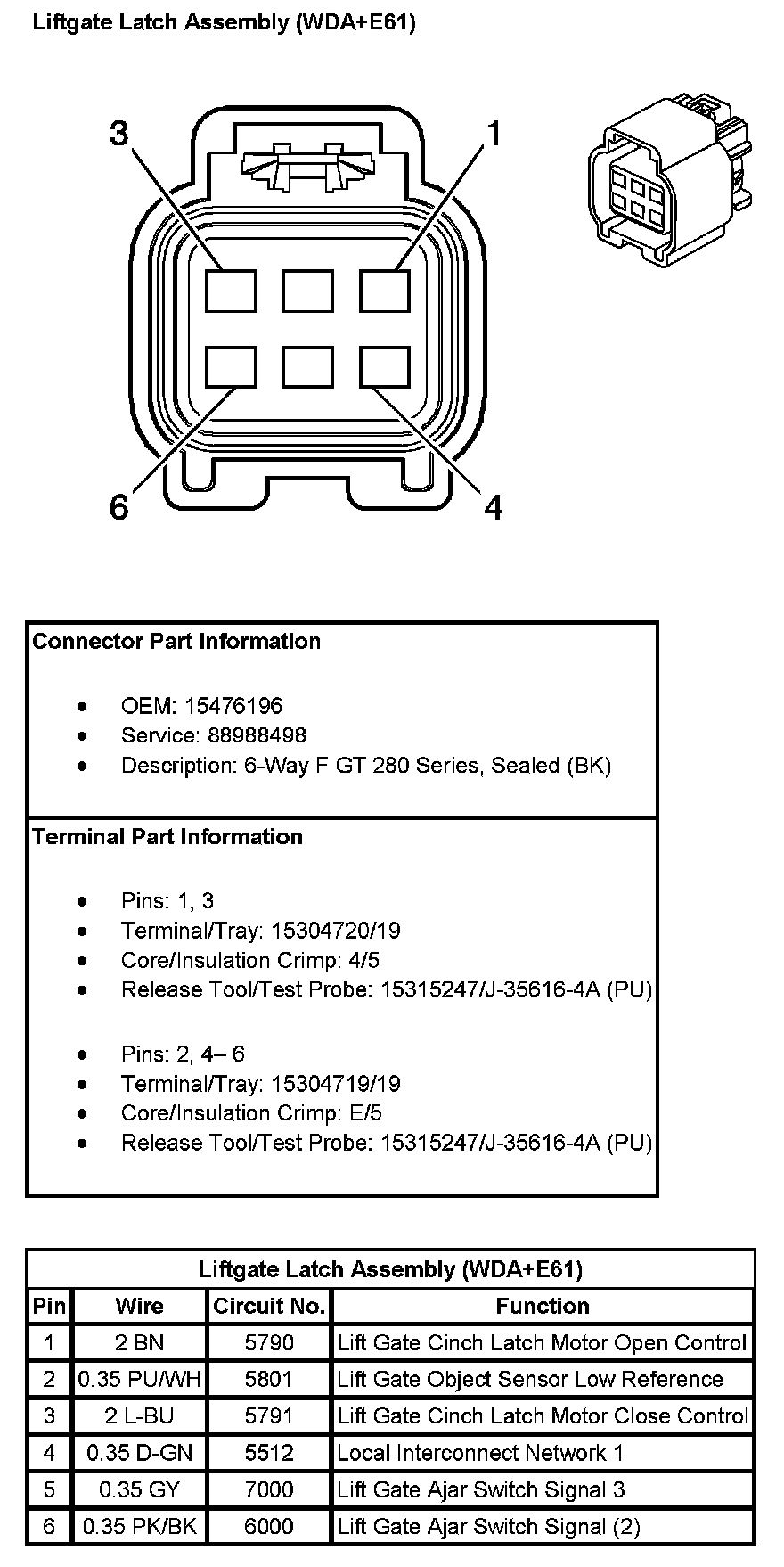

Liftgate Latch Assembly (With RPO Code WDA + E61):

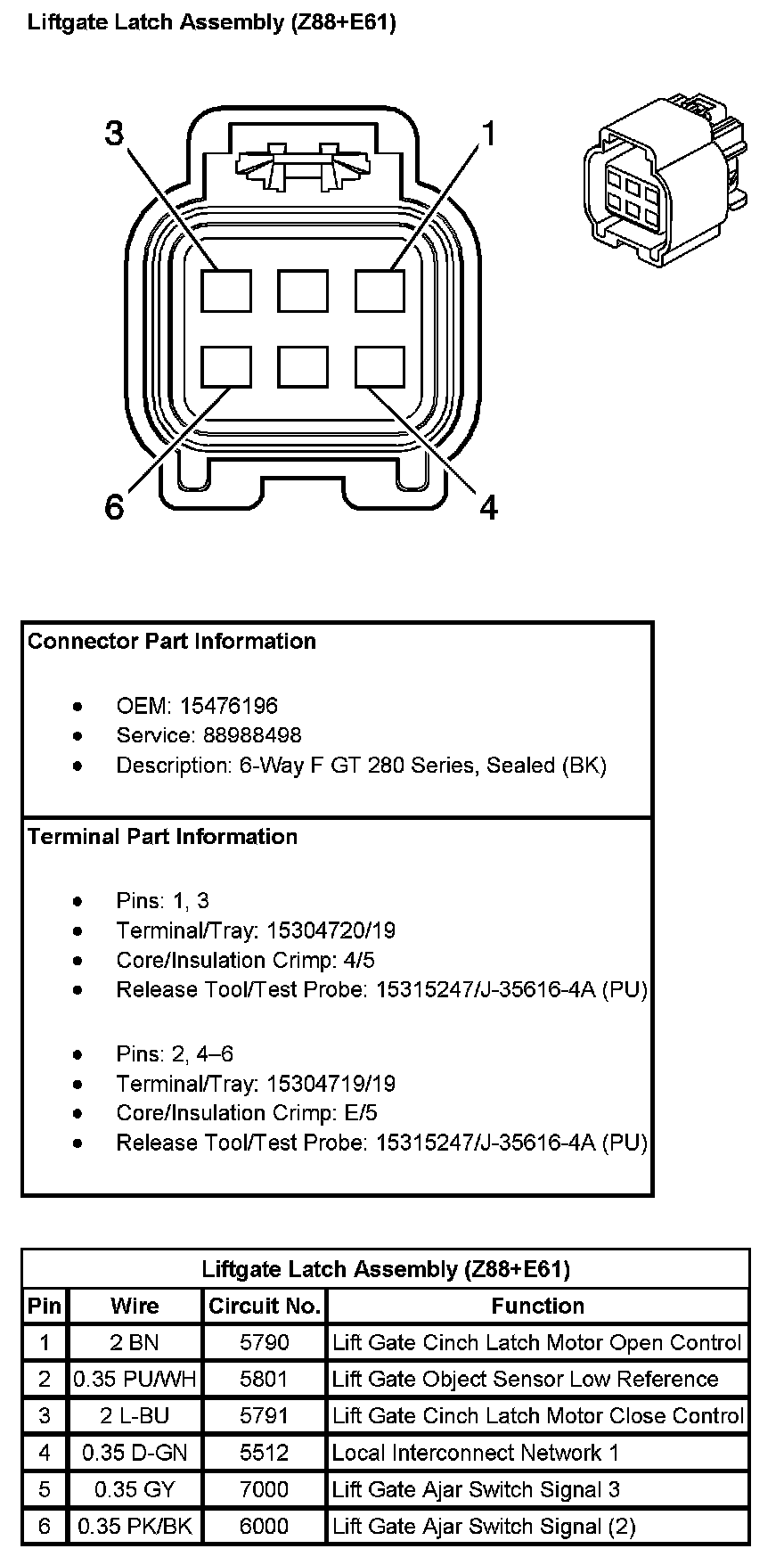

Liftgate Latch Assembly (With RPO Code Z88 + E61):

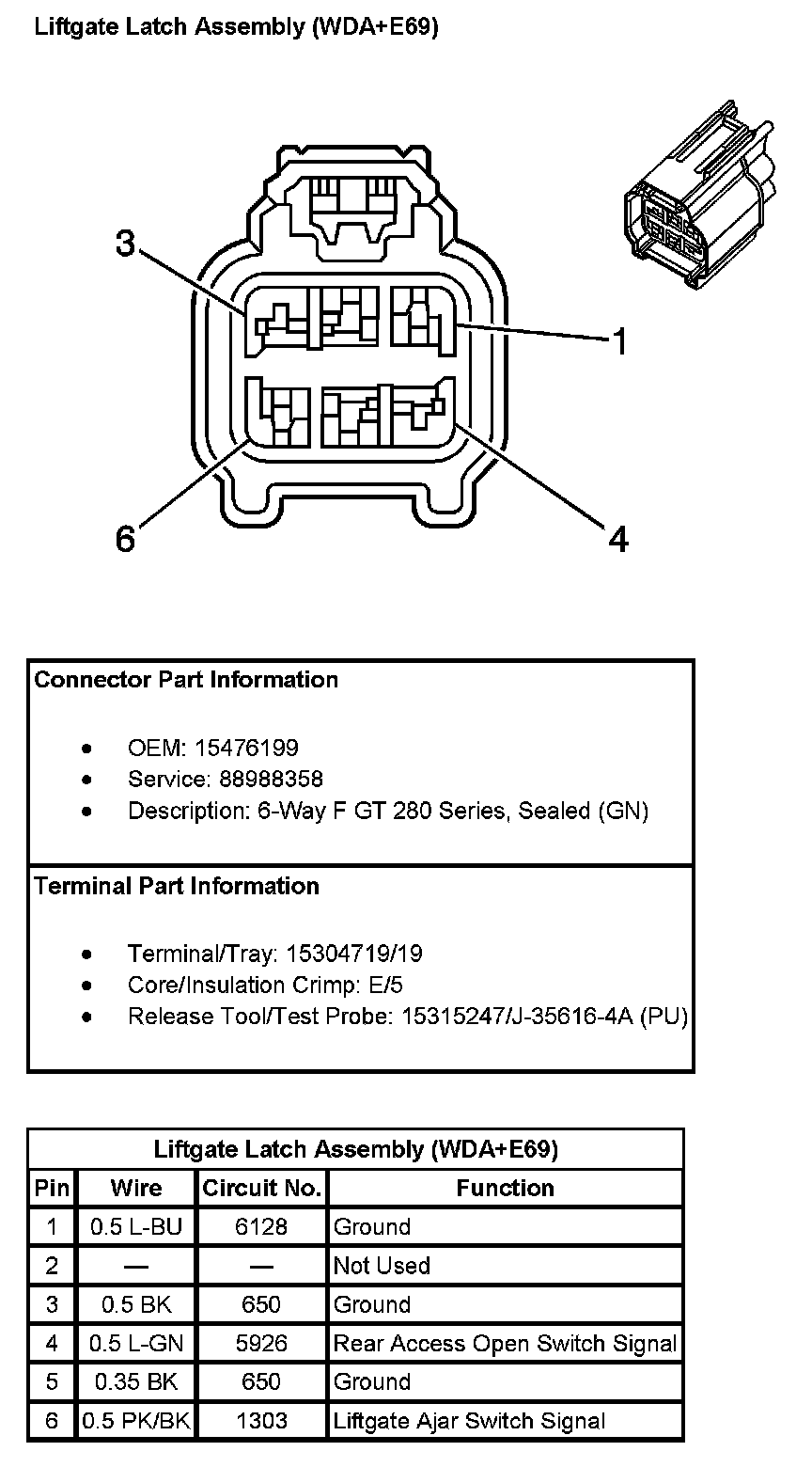

Liftgate Latch Assembly (With RPO Code WDA + E69):

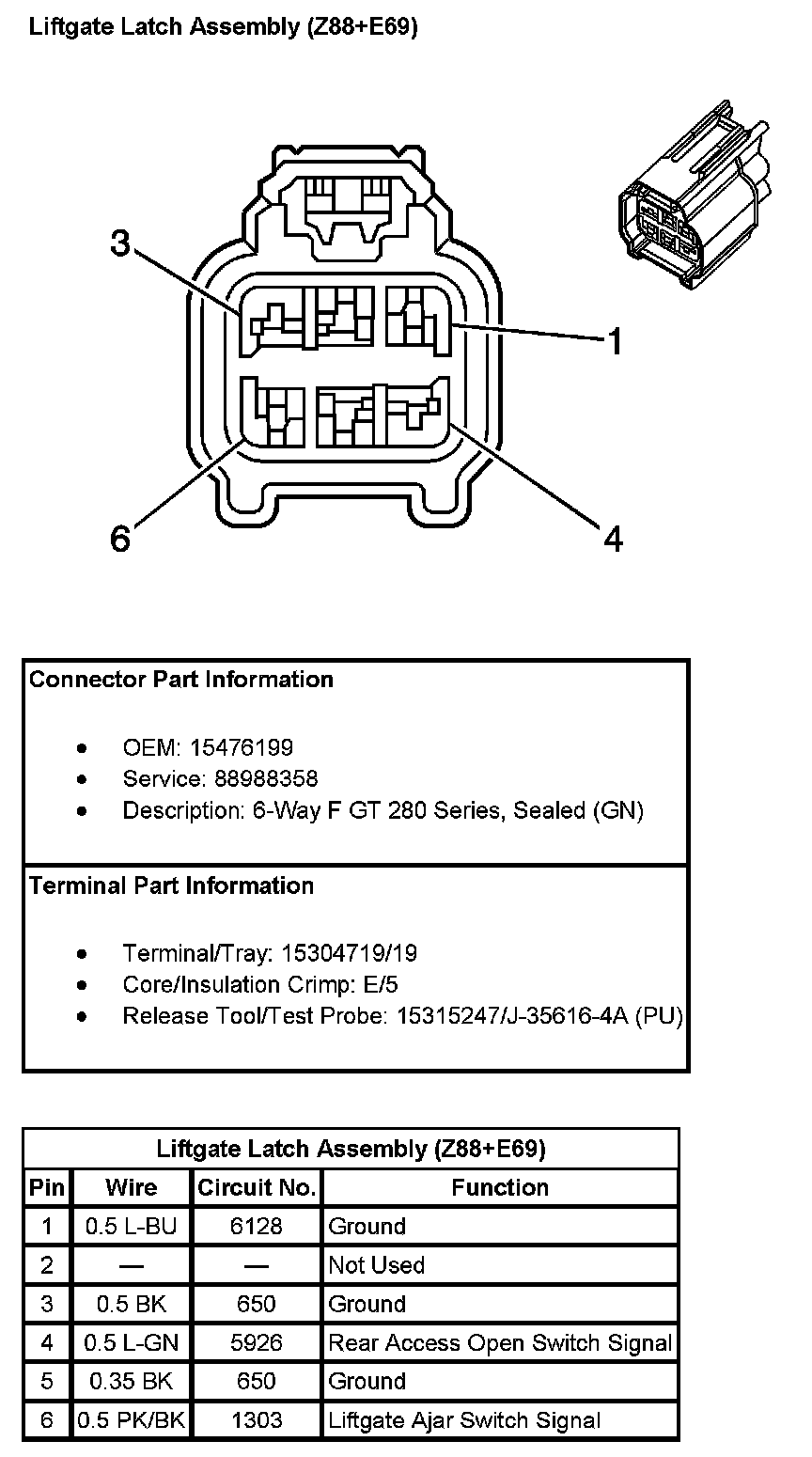

Liftgate Latch Assembly (With RPO Code Z88 + E69):
