Refrigerant Pressure Sensor / Switch: Locations



HVAC Component Views

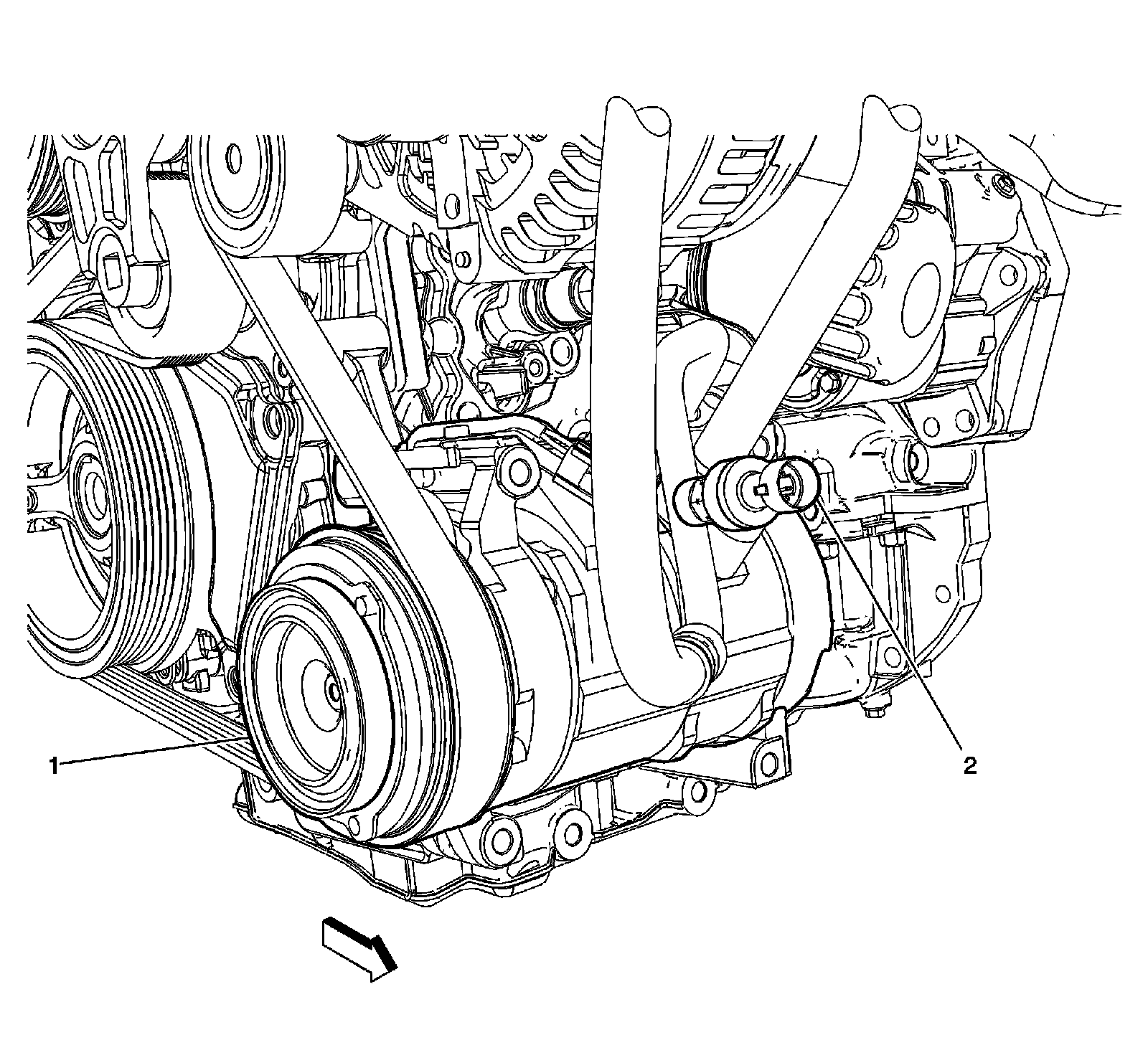

Near the A/C Compressor




1 - A/C Compressor
2 - A/C Refrigerant Pressure Sensor
