Connector Views

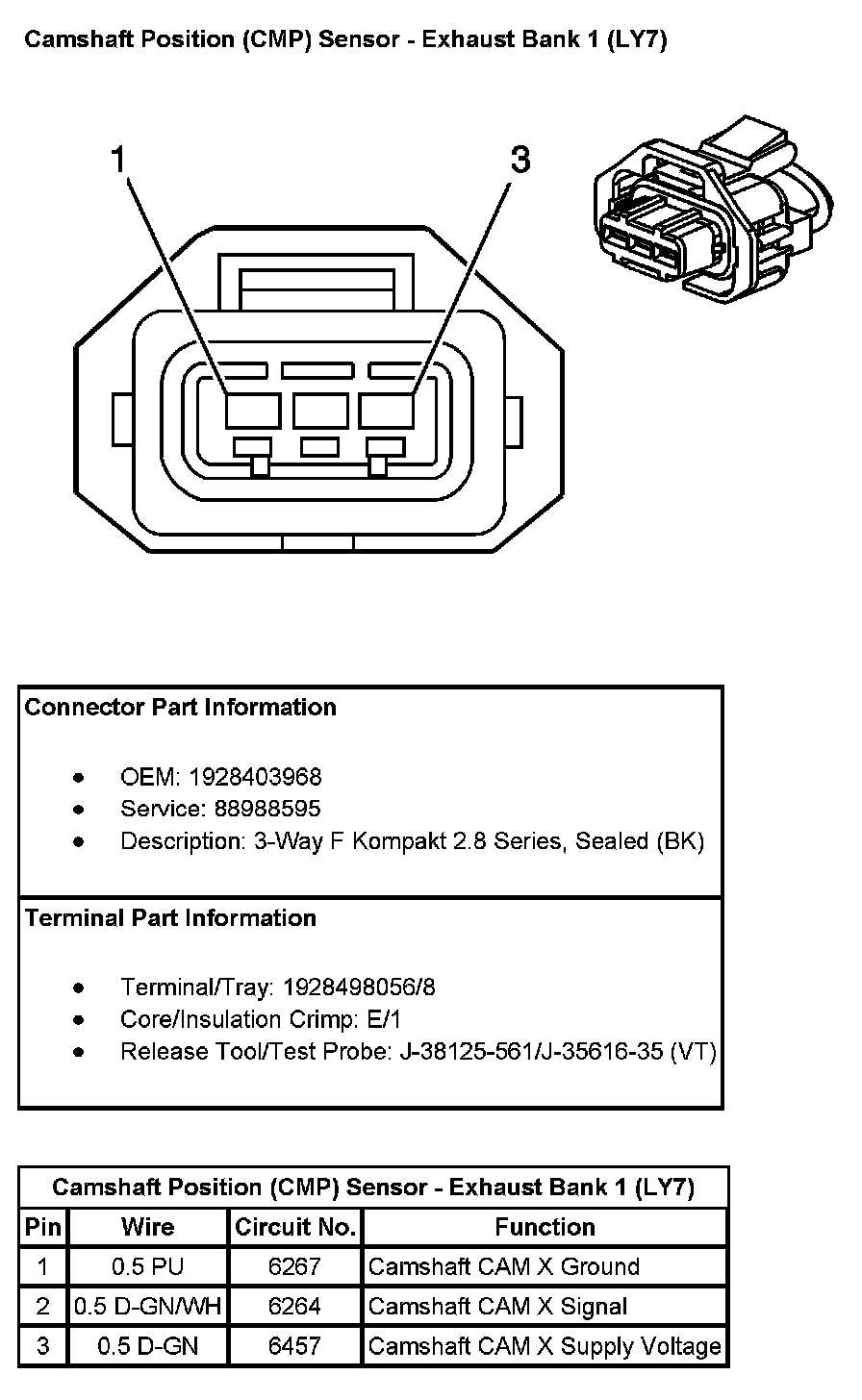

Camshaft Position (CMP) Sensor - Exhaust Bank 1:

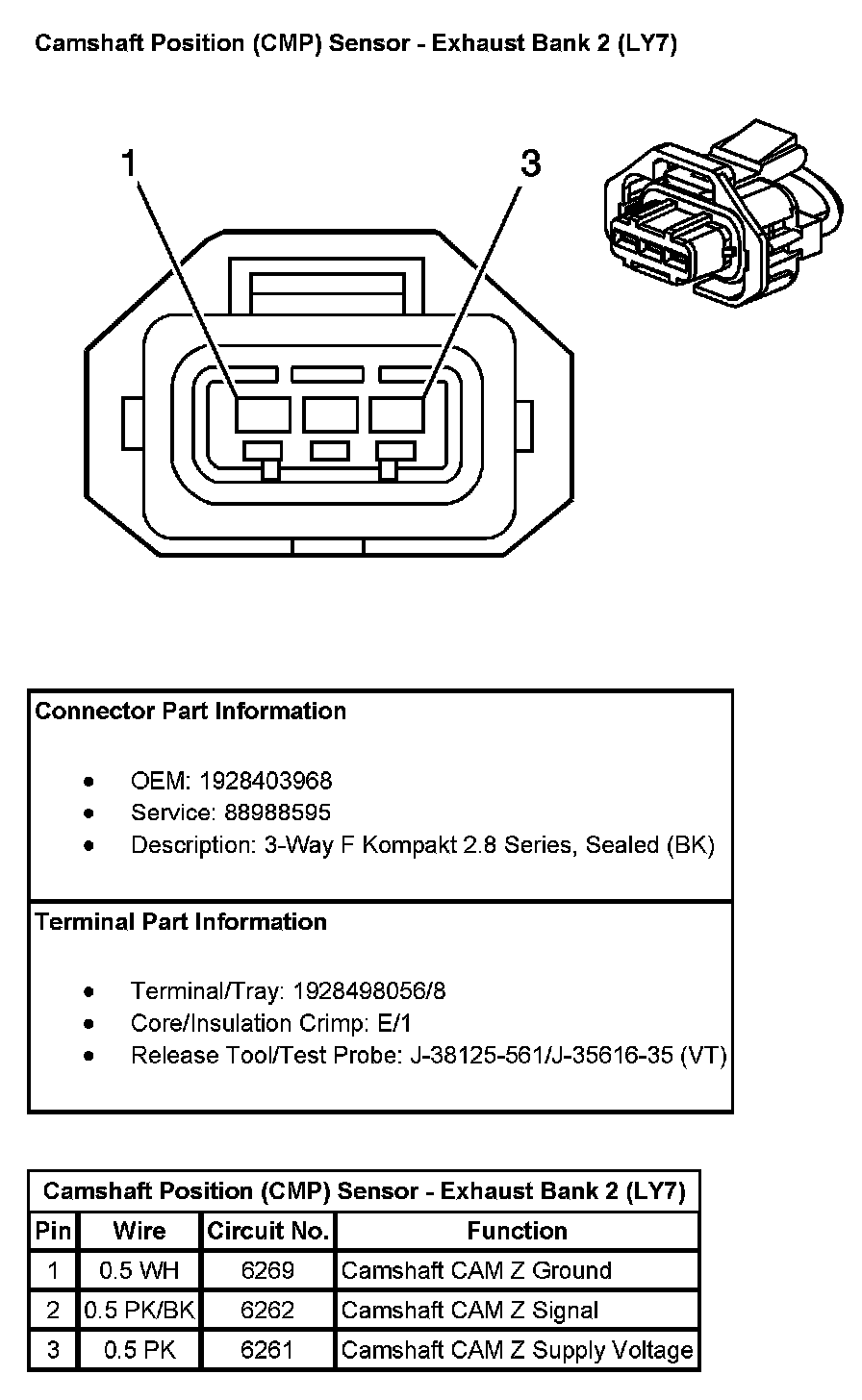

Camshaft Position (CMP) Sensor - Exhaust Bank 2:

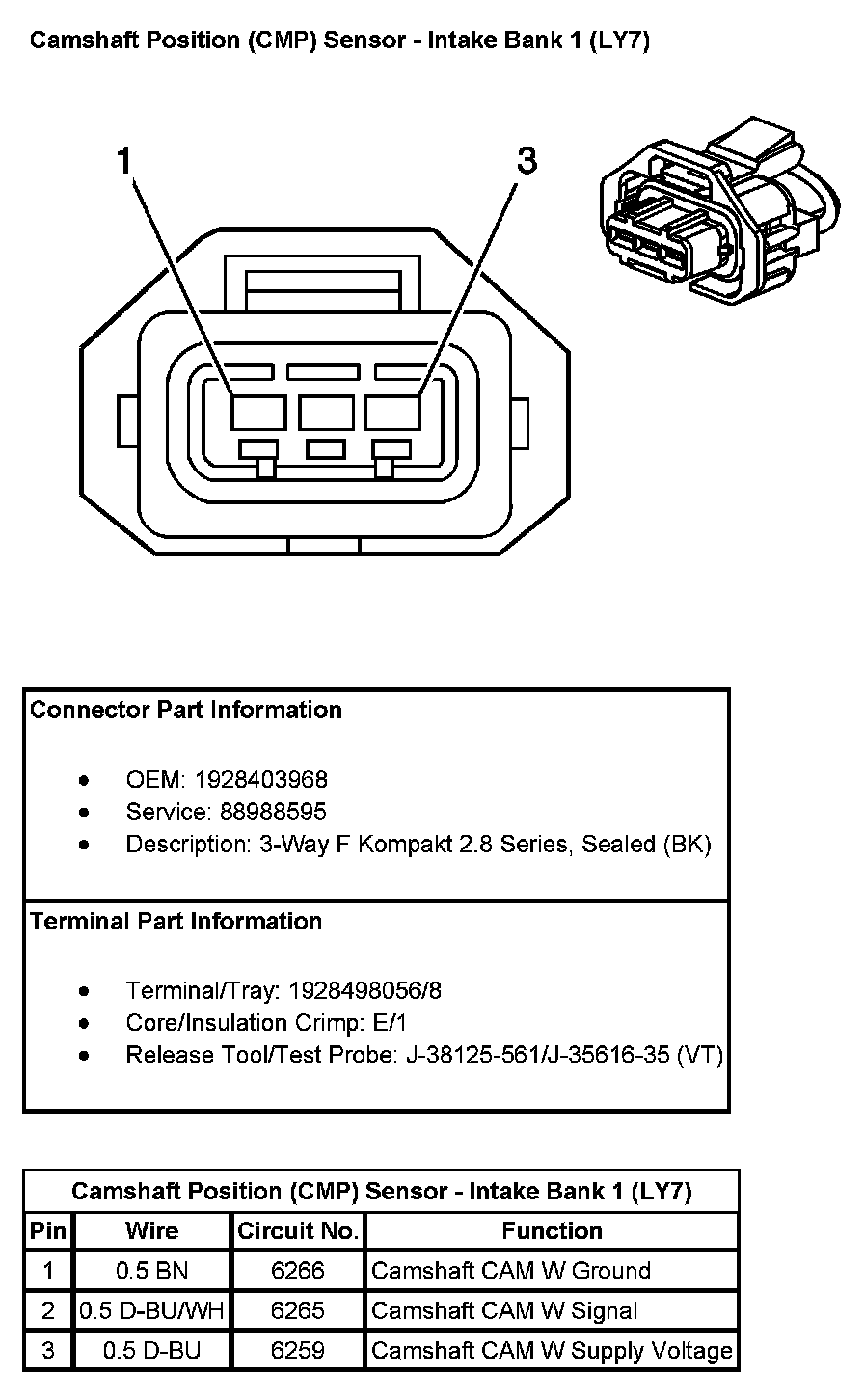

Camshaft Position (CMP) Sensor - Intake Bank 1:



Camshaft Position (CMP) Sensor - Intake Bank 2:
