Data Link Connector: Diagrams

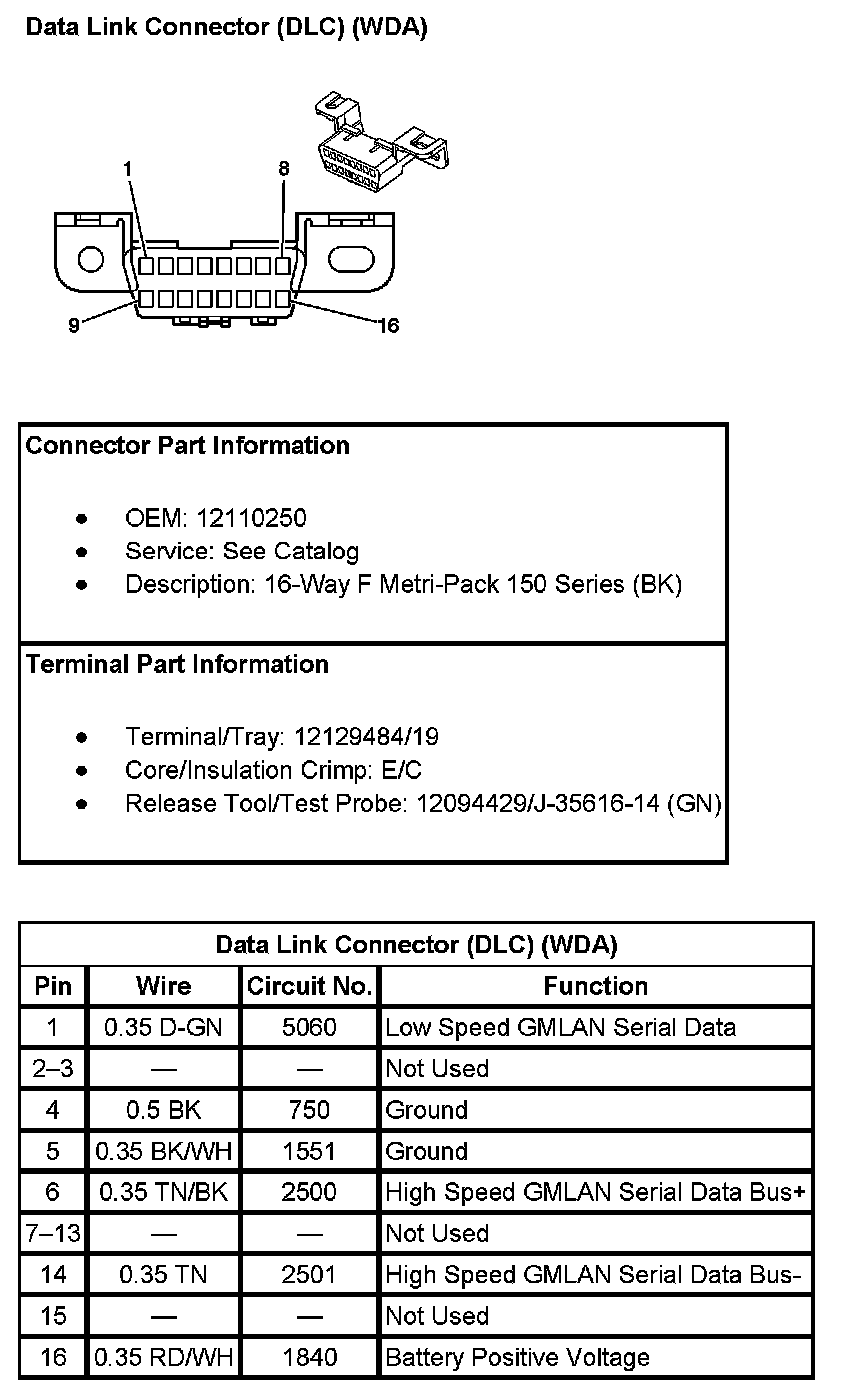

Data Link Connector (DLC) (With RPO Code WDA):

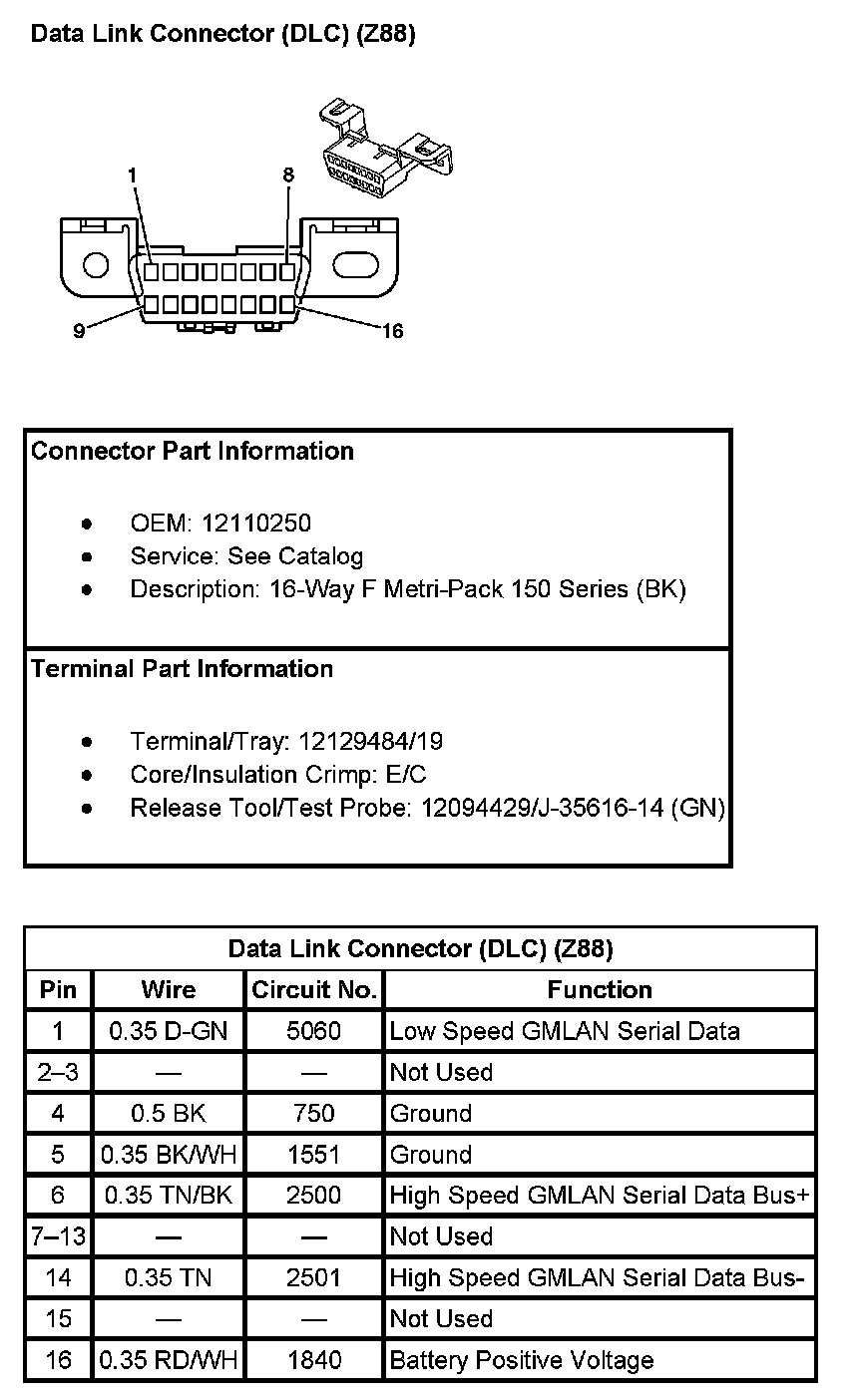

Data Link Connector (DLC) (With RPO Code Z88):
