Intake Manifold Tuning Valve Replacement

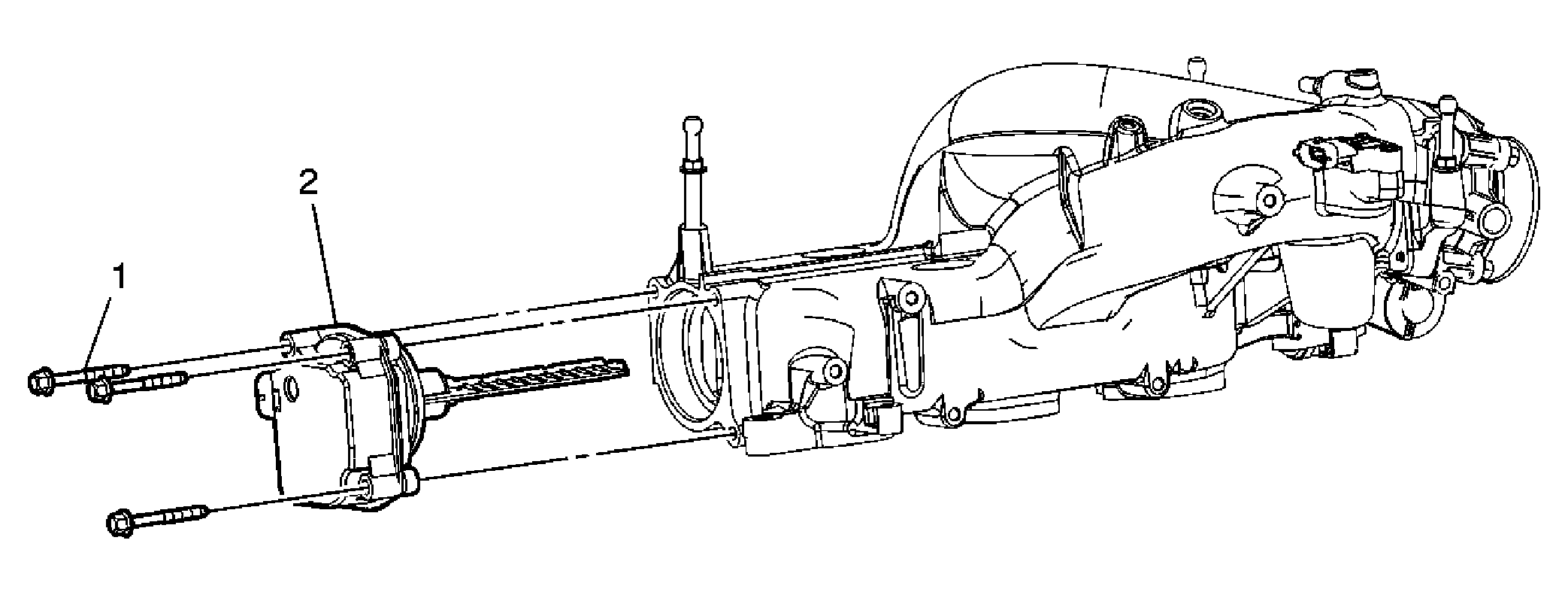

Fig 1: Identifying Intake Manifold Tuning Valve
GM1860570Courtesy of GENERAL MOTORS CORP.
Intake Manifold Tuning Valve Replacement

Callout Component Name
Preliminary Procedure:
Remove the rear intake manifold insulator. Refer to Intake Manifold Insulator Replacement .
1 Intake Manifold Tuning Valve Bolt (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  10 N.m (89 lb in)
2 Intake Manifold Tuning Valve
Procedure:
Disconnect the engine wiring harness electrical connector.
