Automatic Transmission Shift Lock Actuator Replacement

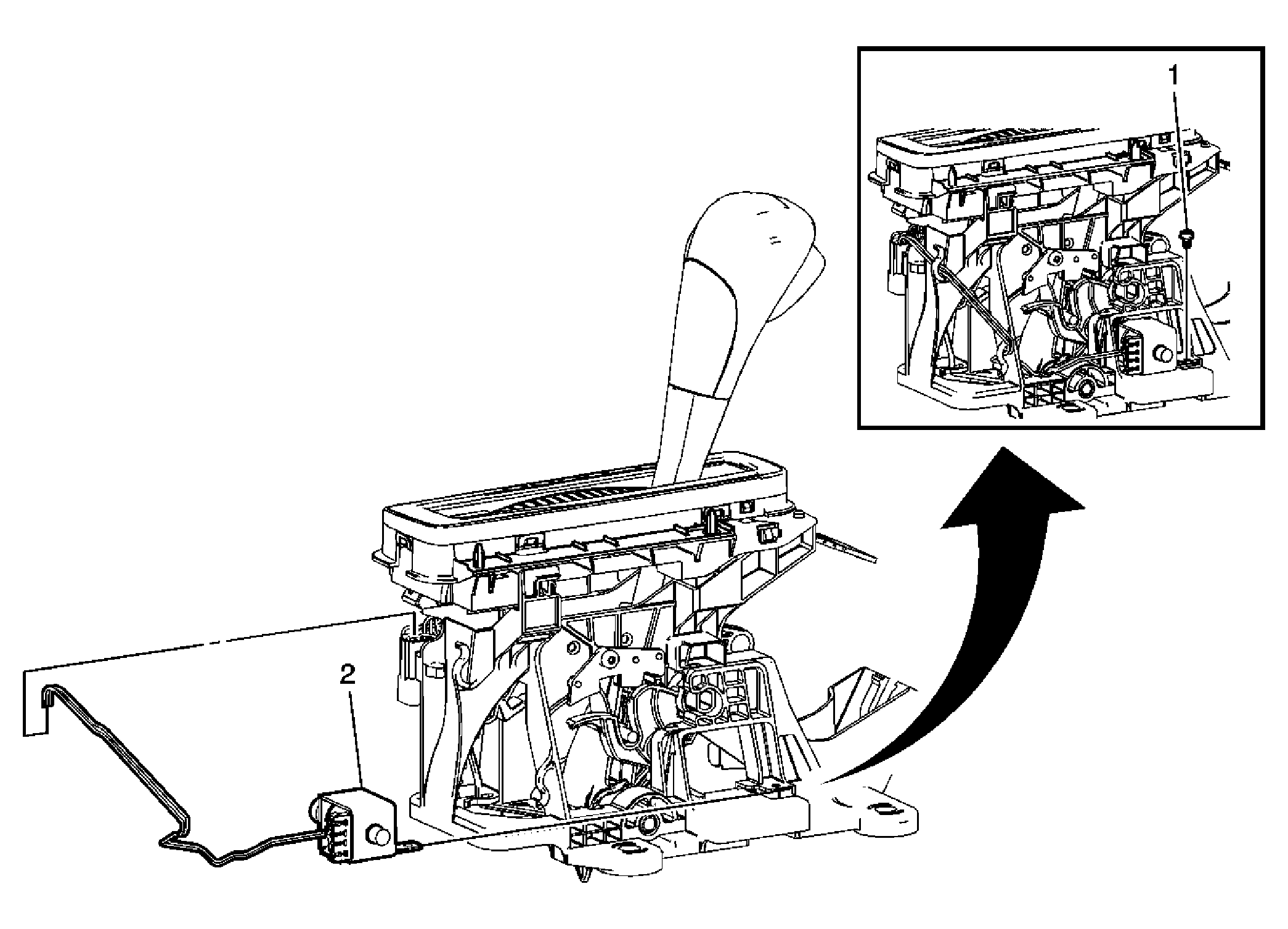

Fig 1: View Of Automatic Transmission Shift Lock Actuator Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the automatic transmission control. Refer to Automatic Transmission Control Replacement .
1	Shift Lock Actuator Screw NOTE: Refer to Fastener Notice . Tighten: 4 N.m (35 lb in)
2	Shift Lock Actuator Procedure: Shift lock actuator wires must be de-pinned from the electrical connector.
