Removal Procedure

  1. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement .

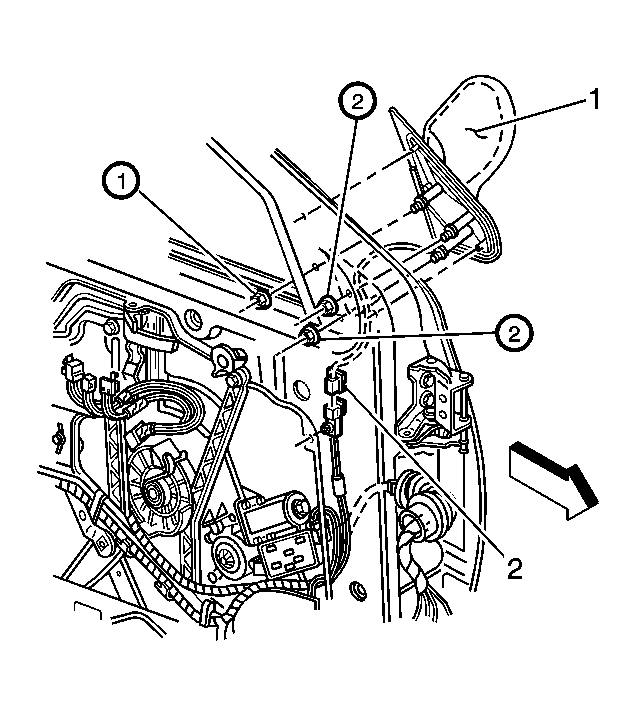

    2. Fig 1: Removing/Installing Outside Rearview Mirror
    GM1482358Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the mirror electrical connectors (2).
  3. Remove the outside rearview mirror nuts.
  4. Remove the outside rearview mirror (1) from the front door.
