Installation Procedure

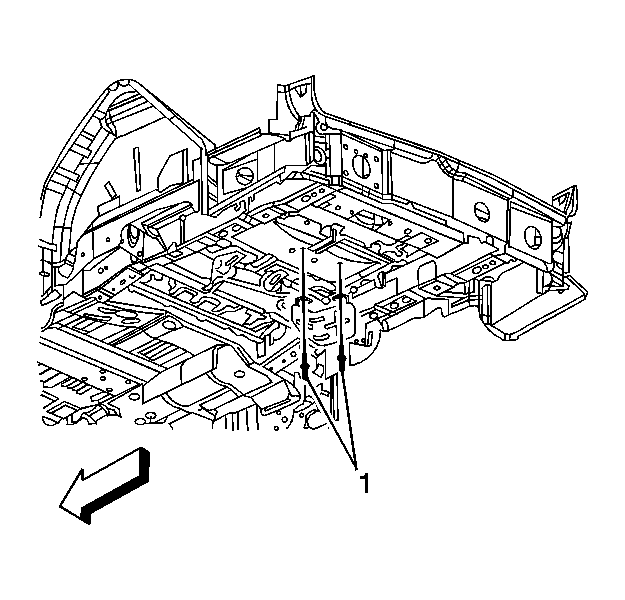

    Fig 1: Identifying Exhaust Resonator Heat Shield Rivets
    GM1681509Courtesy of GENERAL MOTORS CORP.
  1. Position the heat shield to the underbody.
  2. Install NEW rivets (1) attaching the resonator heat shield to the underbody.
  3. Install the muffler. Refer to Muffler Replacement .
