Tire Pressure Monitoring System Component Views

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

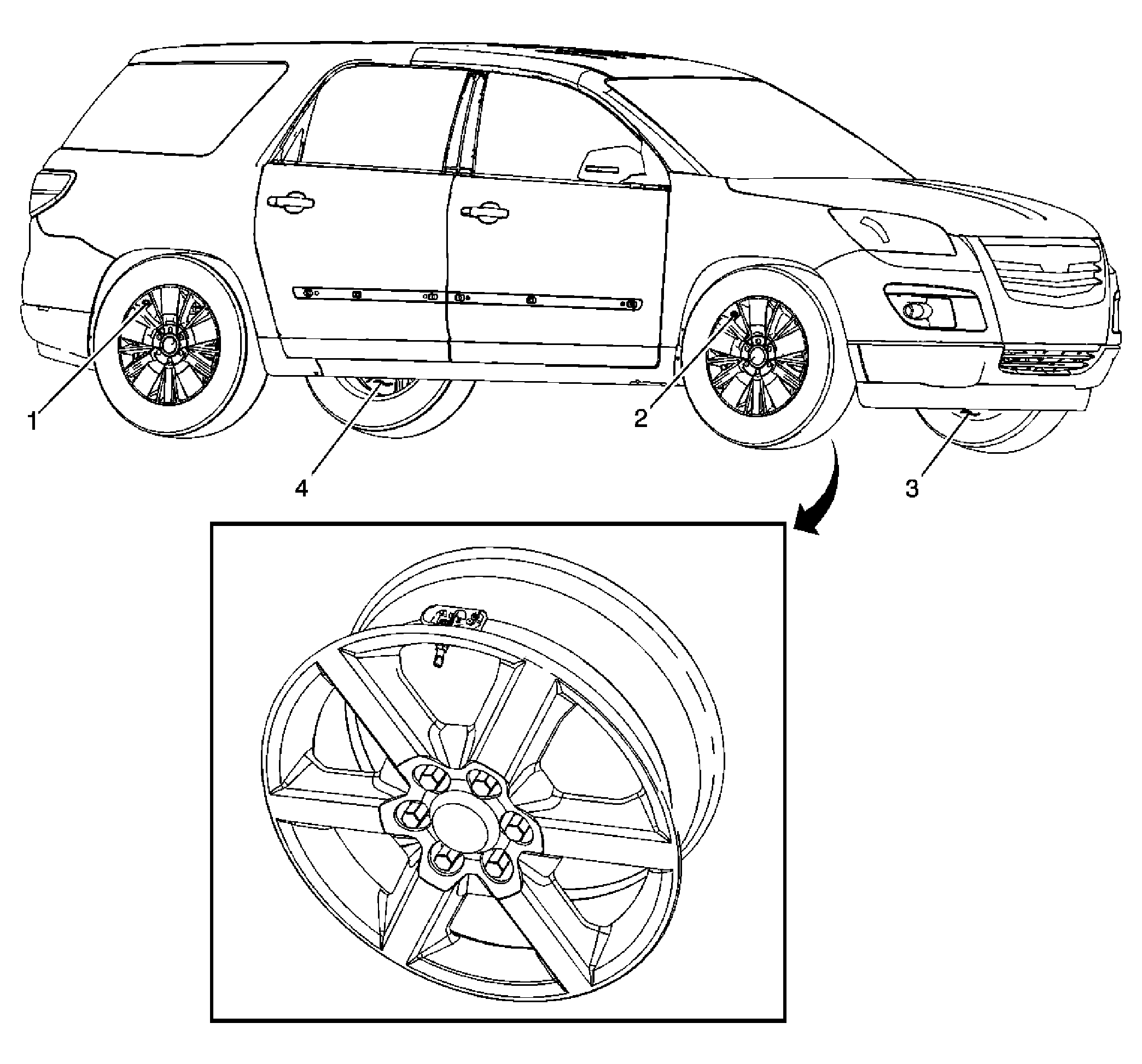

Fig 1: Identifying Tire Pressure Sensors
GM1867861Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tire Pressure Monitor Sensor - RR
2 Tire Pressure Monitor Sensor - RF
3 Tire Pressure Monitor Sensor - LF
4 Tire Pressure Monitor Sensor - LR
