Power Steering Gear Heat Shield Replacement

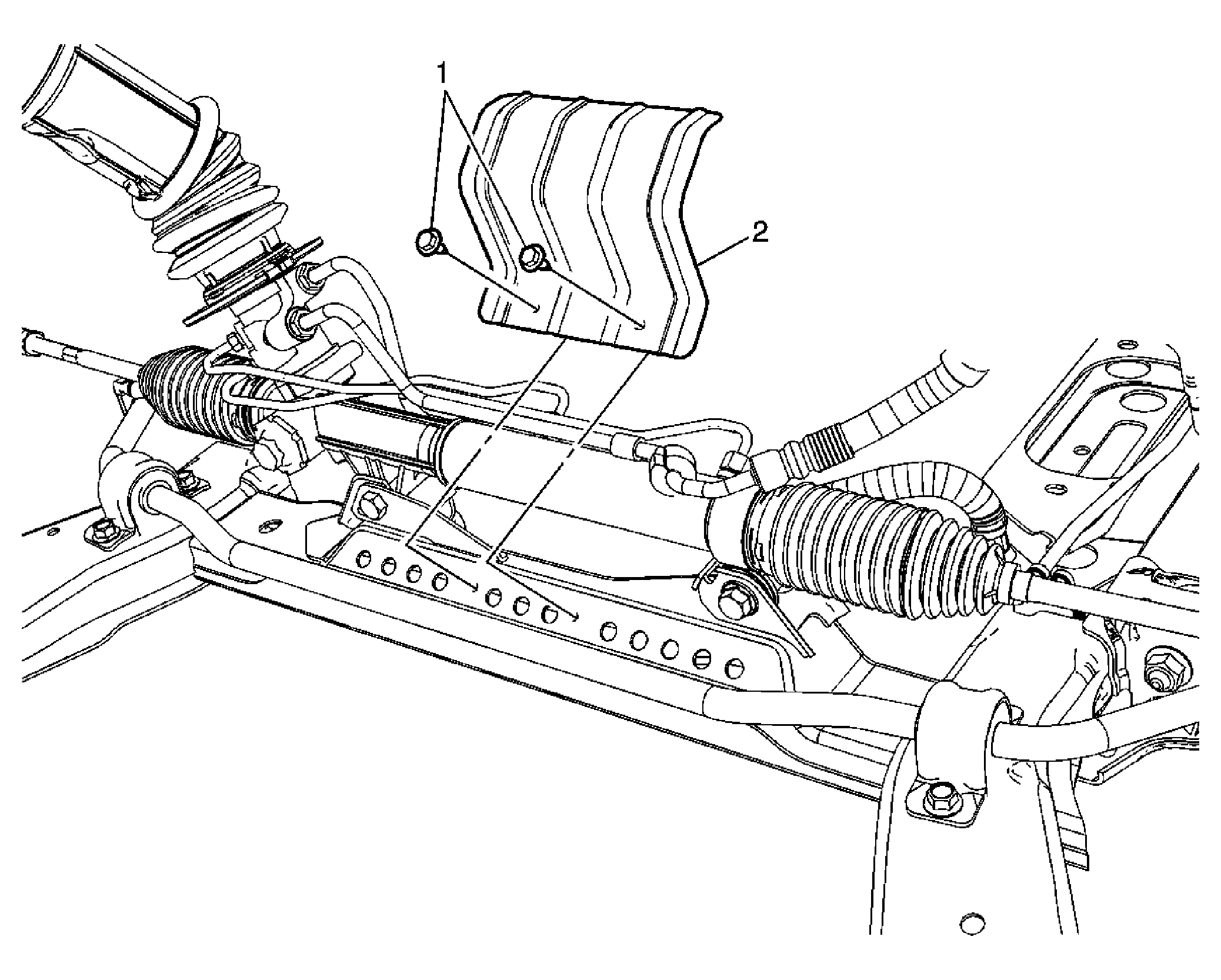

Fig 1: View Of Power Steering Gear Heat Shield
GM1831604Courtesy of GENERAL MOTORS CORP.
Power Steering Gear Heat Shield Replacement

Callout Component Name
Preliminary Procedure:
Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Power Steering Gear Heat Shield Bolt
NOTE: Refer to Fastener Notice .

Tighten:  14 N.m (124 lb in)
2 Power Steering Gear Heat Shield
