Inflator Solenoid Replacement

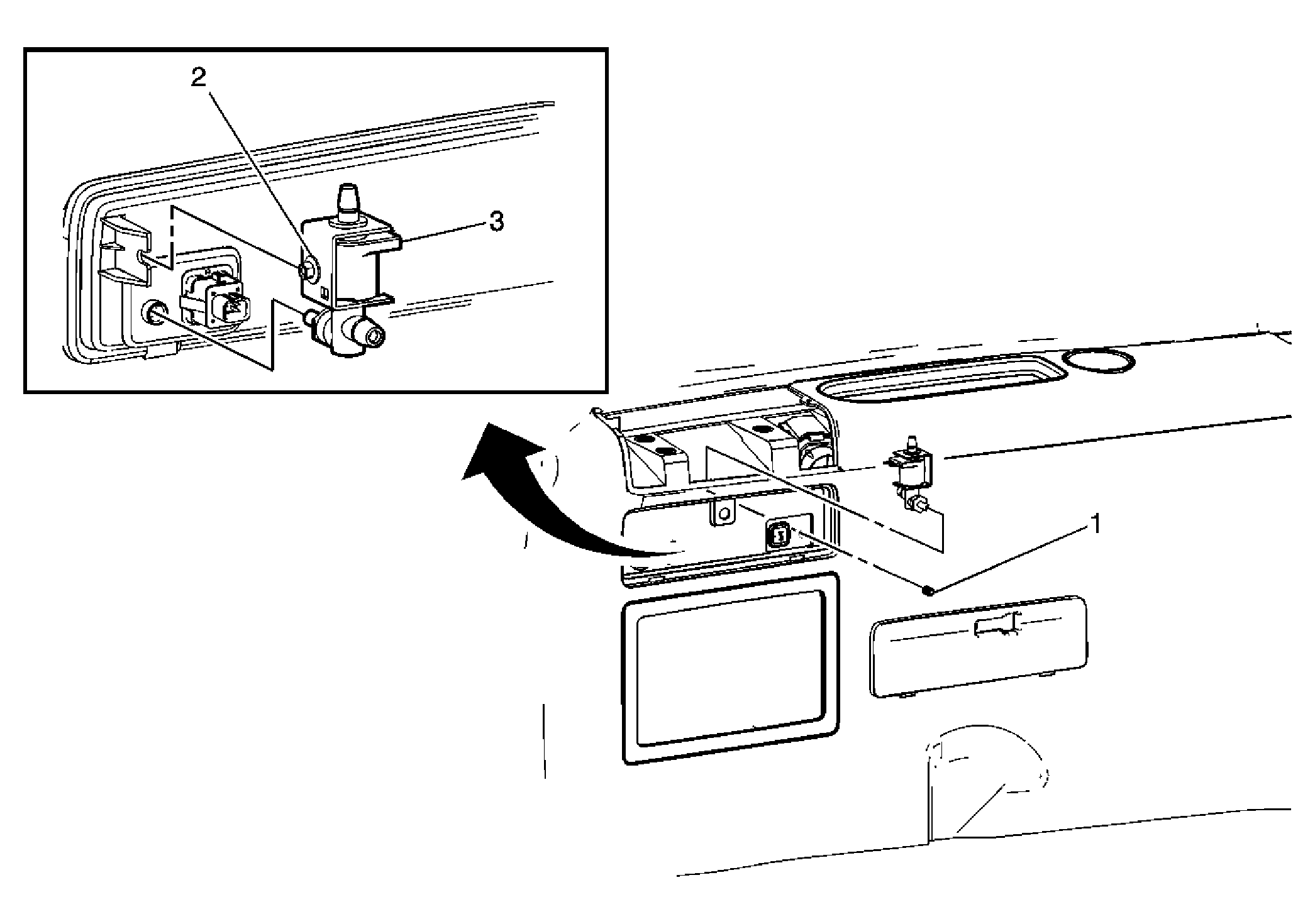

Fig 1: Locating Inflator Solenoid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the seat belt retractor trim cover. Refer to Rear Seat Belt Retractor Trim Cover Replacement .
1	Inflator Solenoid Fill Valve Nut Tighten: 3 N.m (27 lb in)
2	Inflator Solenoid Nut Tip: Access the solenoid through the seat belt trim cover opening. Disconnect the inflator solenoid electrical connector. Disconnect the inflator solenoid air lines from the solenoid. Tighten: 3 N.m (27 lb in)
3	Inflator Solenoid Tip: Remove the inflator solenoid from the rear quarter trim panel.
