OnStar Schematics

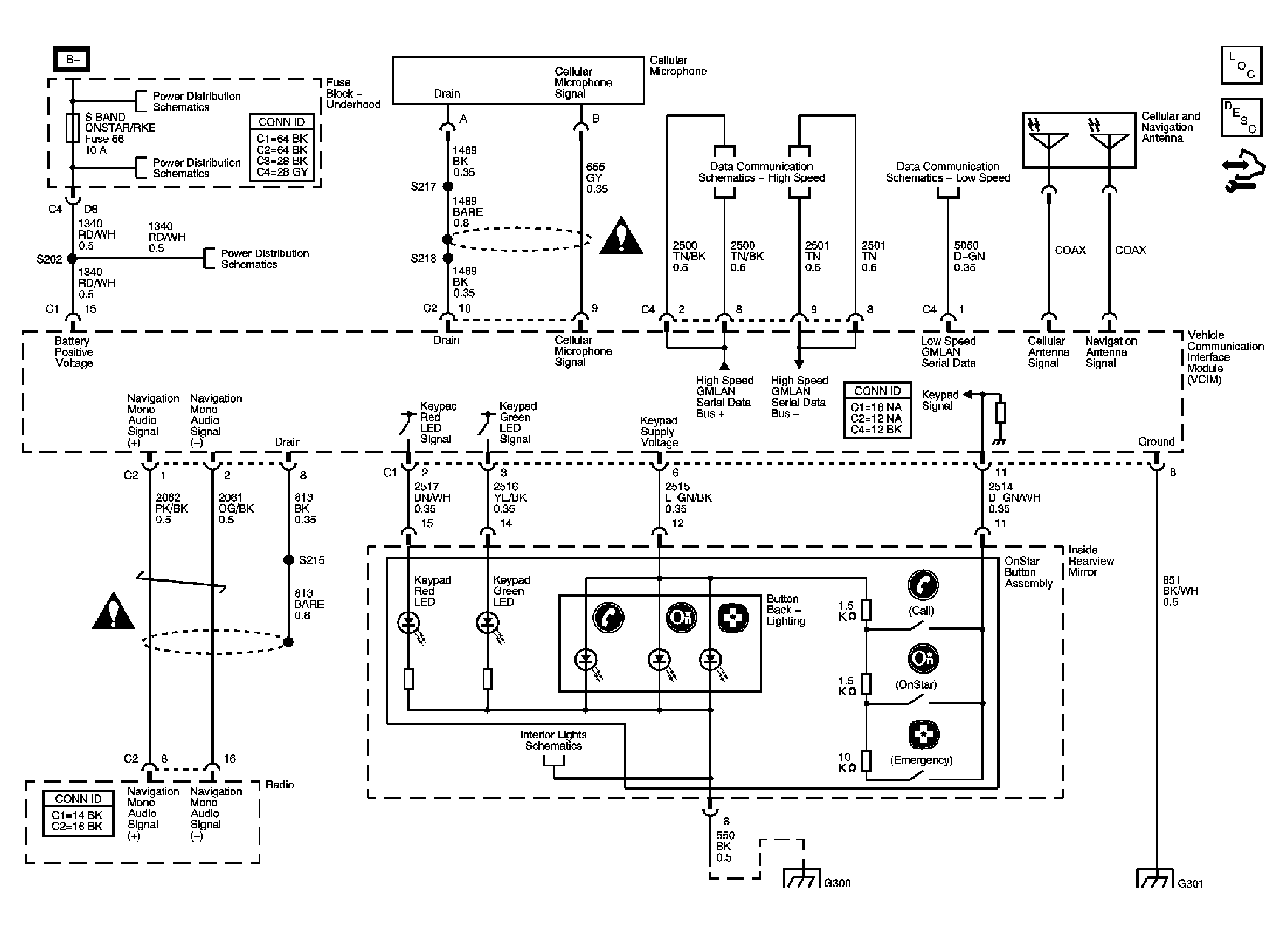

Fig 1: OnStar Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
