Inflatable Restraint Side Impact Sensor Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

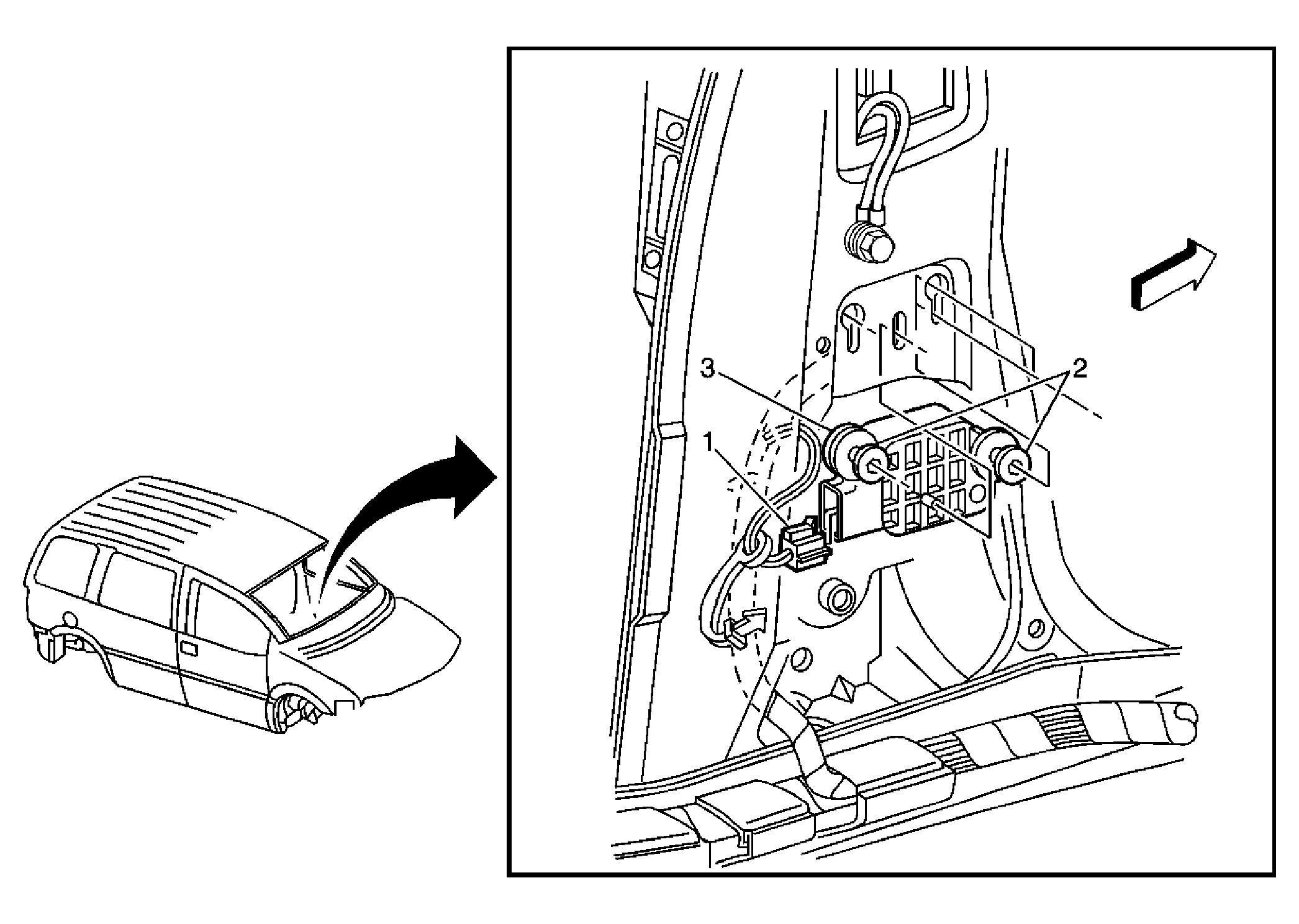

Fig 1: Inflatable Restraint Side Impact Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury, or unnecessary SIR system repairs. Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the center pillar lower trim. Refer to Center Pillar Lower Trim Panel Replacement .
1	Side Impact Sensor Electrical Connector Tip: Remove the connector position assurance (CPA) from the yellow harness connector.
2	Inflatable Restraint Side Impact Sensor Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Loosen the bolts only. Tighten: 10 N.m (89 lb in)
3	Inflatable Restraint Side Impact Sensor
