Air Bag Control Module: Locations

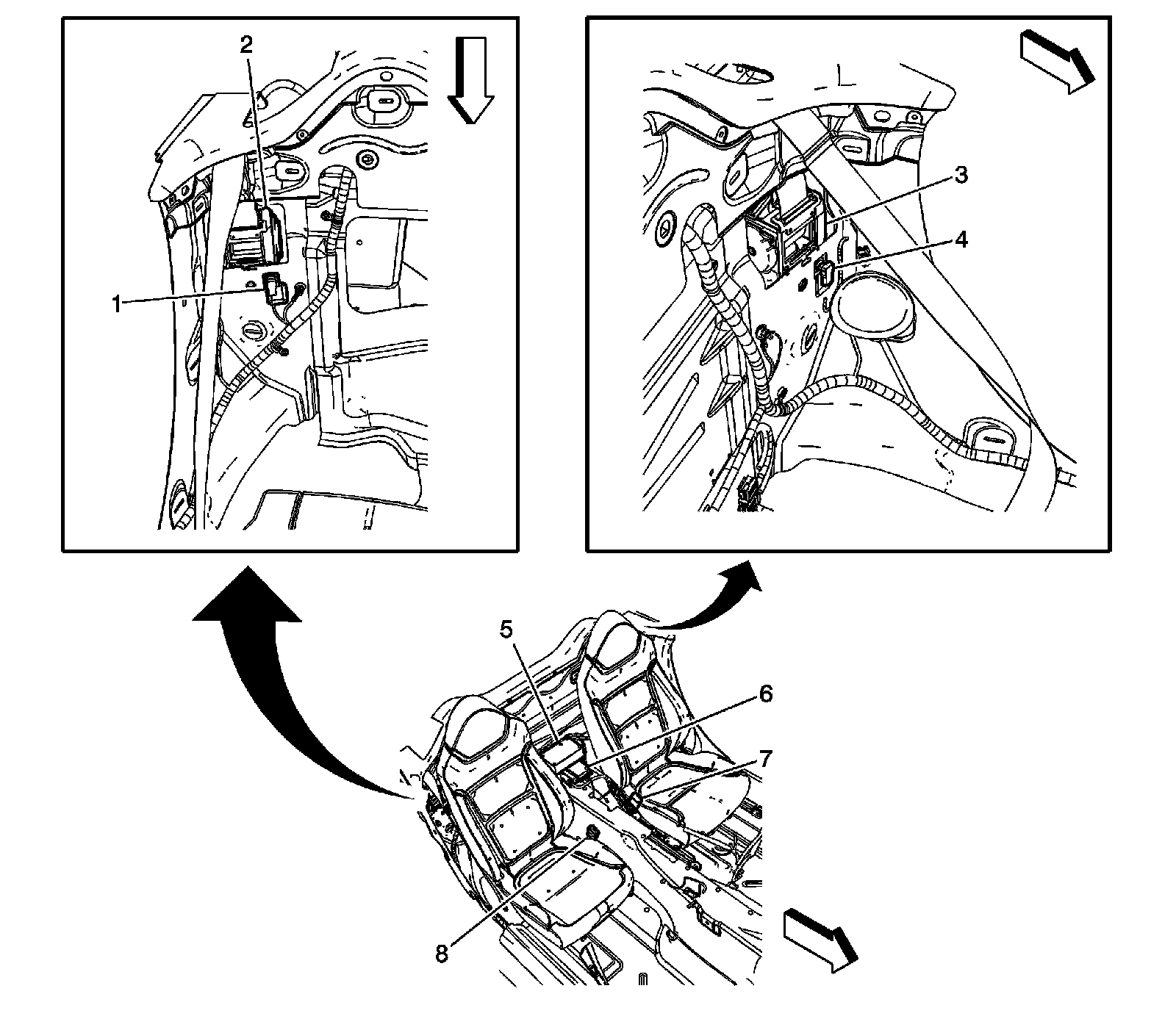

SIR Component Views

SIR Components




1 - Seat Belt Pretensioner - Right Connector
2 - Seat Belt Pretensioner - Right
3 - Seat Belt Pretensioner - Left
4 - Seat Belt Pretensioner - Left Connector
5 - Vehicle Communication Interface Module (VCIM)
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Seat Belt Switch - Driver
8 - Seat Belt Switch - Passenger
