Starter Relay: Locations



Electrical Center Identification Views

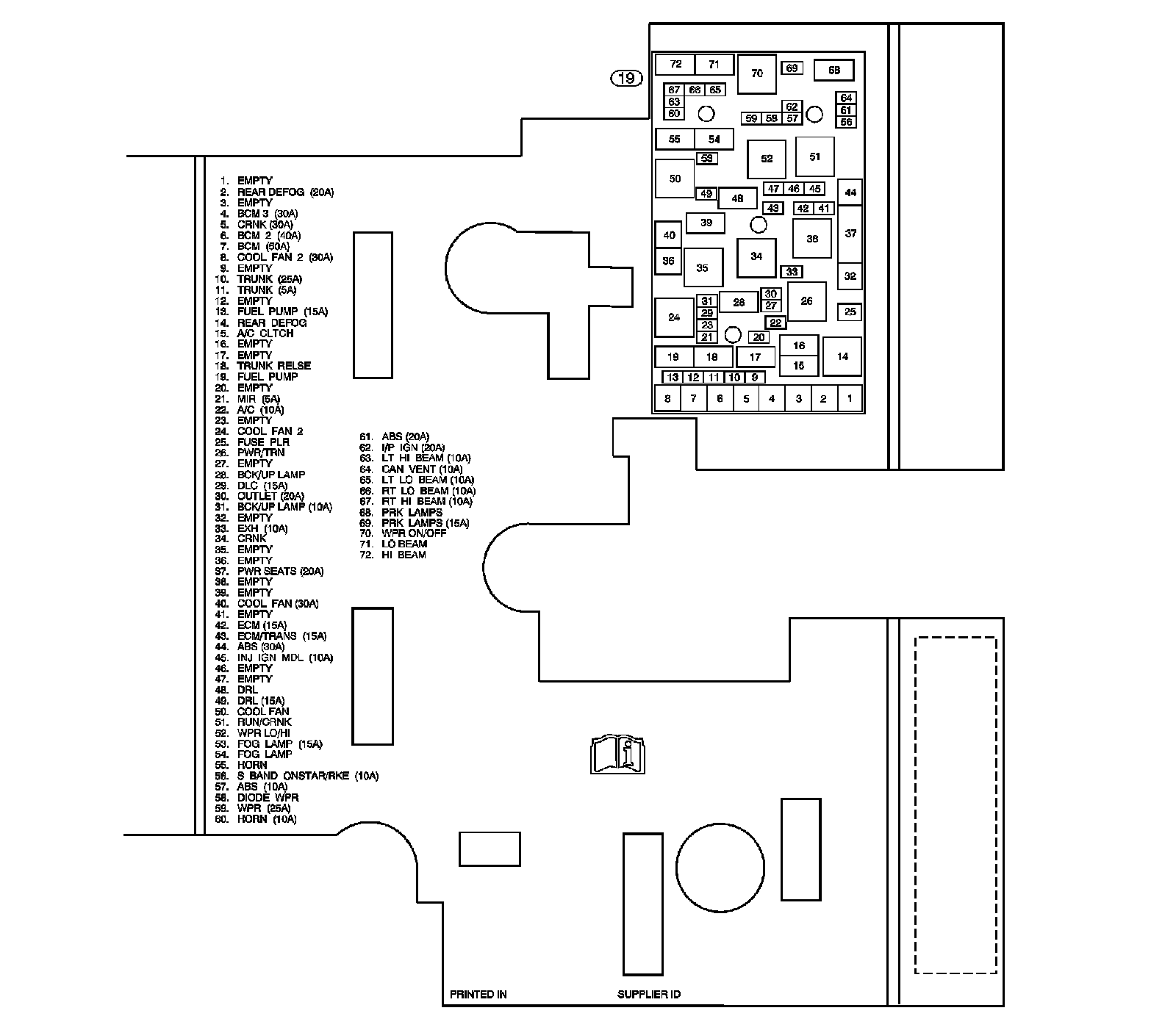

Fuse Block - Underhood Label (LE5 w/MA5)

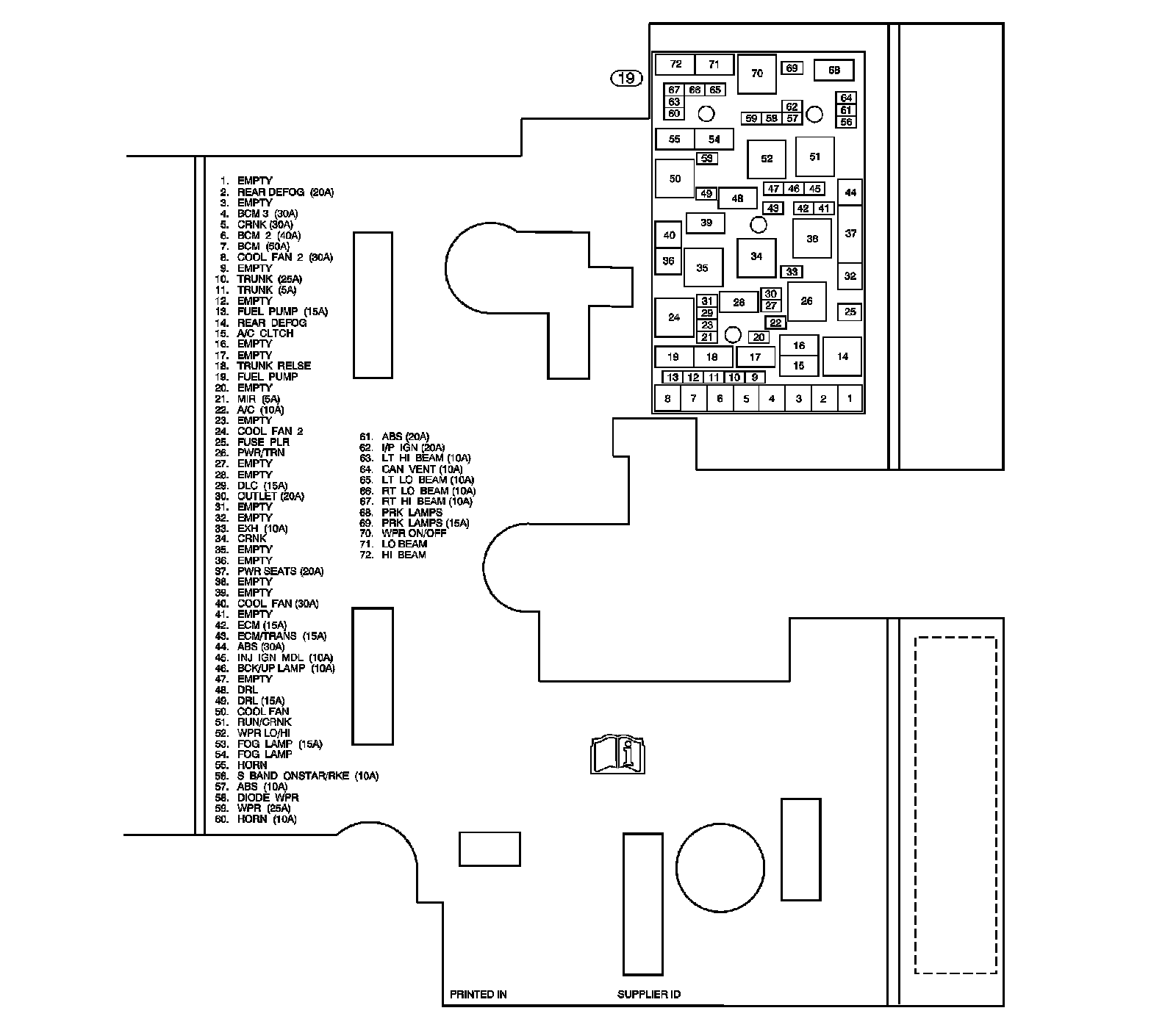

Fuse Block - Underhood Label (LE5 w/M82)
