Turn Signal Multifunction Switch Replacement



Turn Signal Multifunction Switch Replacement

Removal Procedure

1. Remove the steering column trim covers.
2. Disconnect the multifunction turn signal switch harness connector.

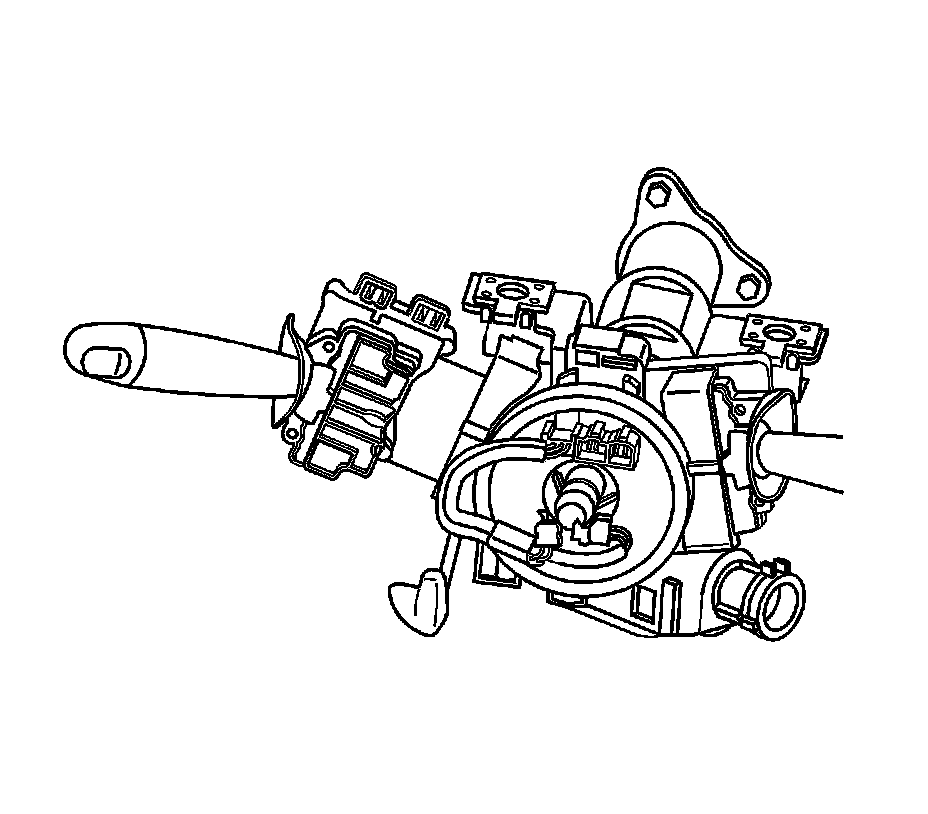

3. Depress the locking tabs and remove the multifunction turn signal switch (1).

Installation Procedure




1. Install the multifunction turn signal switch (1). Ensure the locking tabs are snapped into place.
2. Connect the multifunction turn signal switch harness connector.
3. Install the steering column trim covers.
