Shift Linkage: Service and Repair

Shift Control Linkage Replacement

Removal Procedure

1. Position the shift lever in PARK.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
3. Remove the front closeout panel.

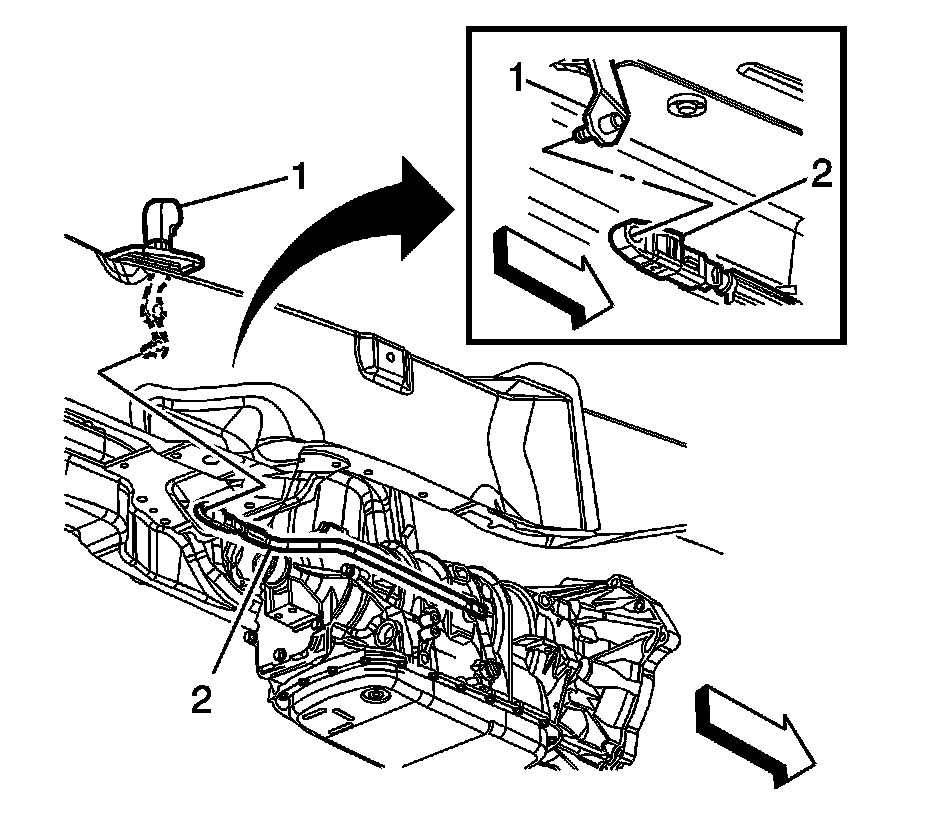

4. Disconnect the shift control linkage (2) from the shift control assembly (1).





5. Remove the manual shift shaft nut (1).
6. Remove the shift control linkage (2) from the vehicle.

Installation Procedure





1. Install the shift control linkage (2) to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the manual shift shaft nut (1).

Tighten the nut to 9 N.m (80 lb in).





3. Connect the shift control linkage rod (2) to the shift control assembly (1).
4. Adjust the shift control linkage. Refer to Shift Control Linkage Adjustment.
5. Install the front closeout panel.
6. Lower the vehicle.
