Digital Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2007 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

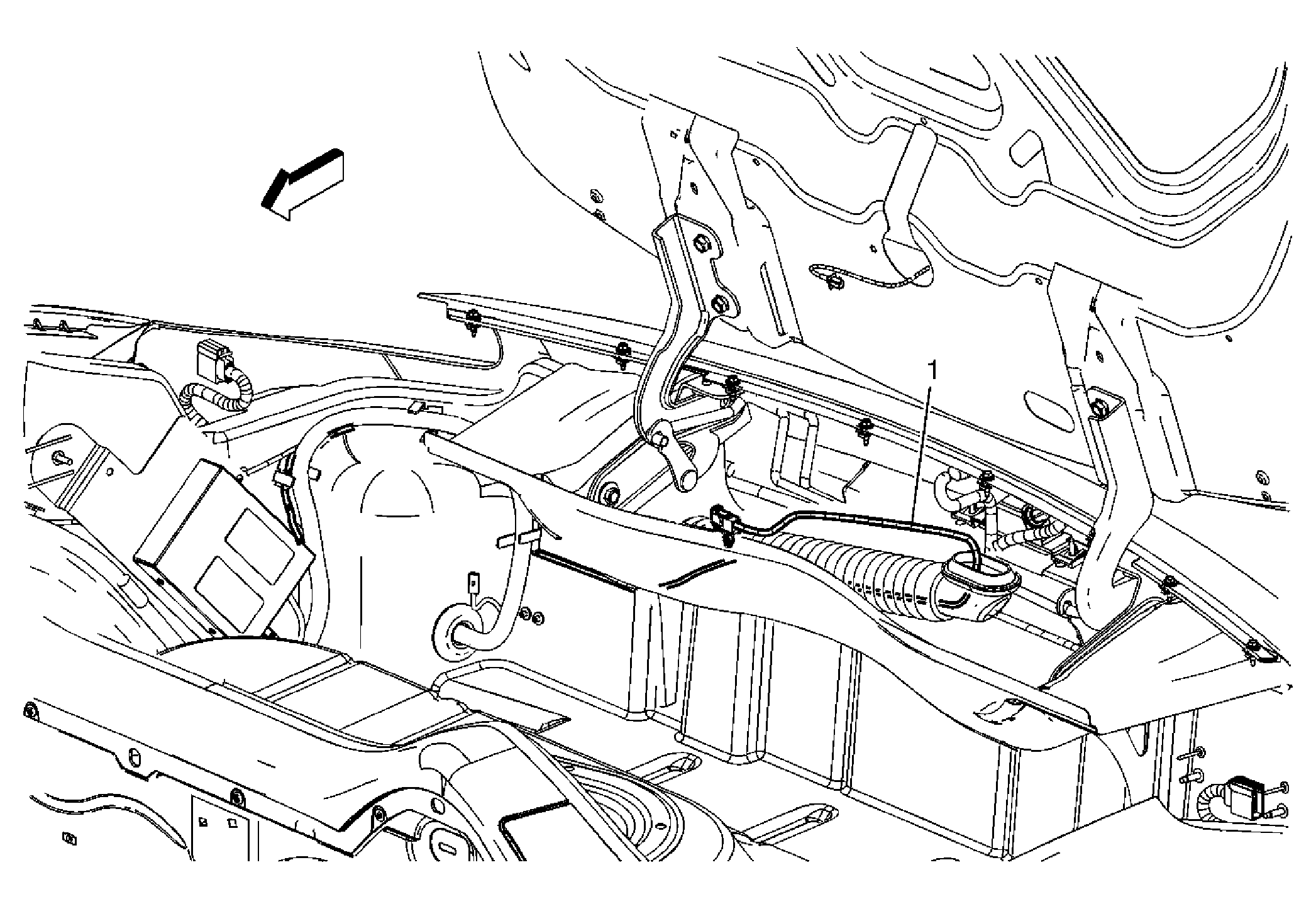

Fig 1: Digital Radio Coaxial Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement .
1	Cable Assembly, Digital Radio Antenna Tip: Disconnect the electrical connectors. Remove the cable conduit, to the rear compartment lid, in order to access the cable connection at the XM radio antenna.
