Entertainment/Communication Component Views

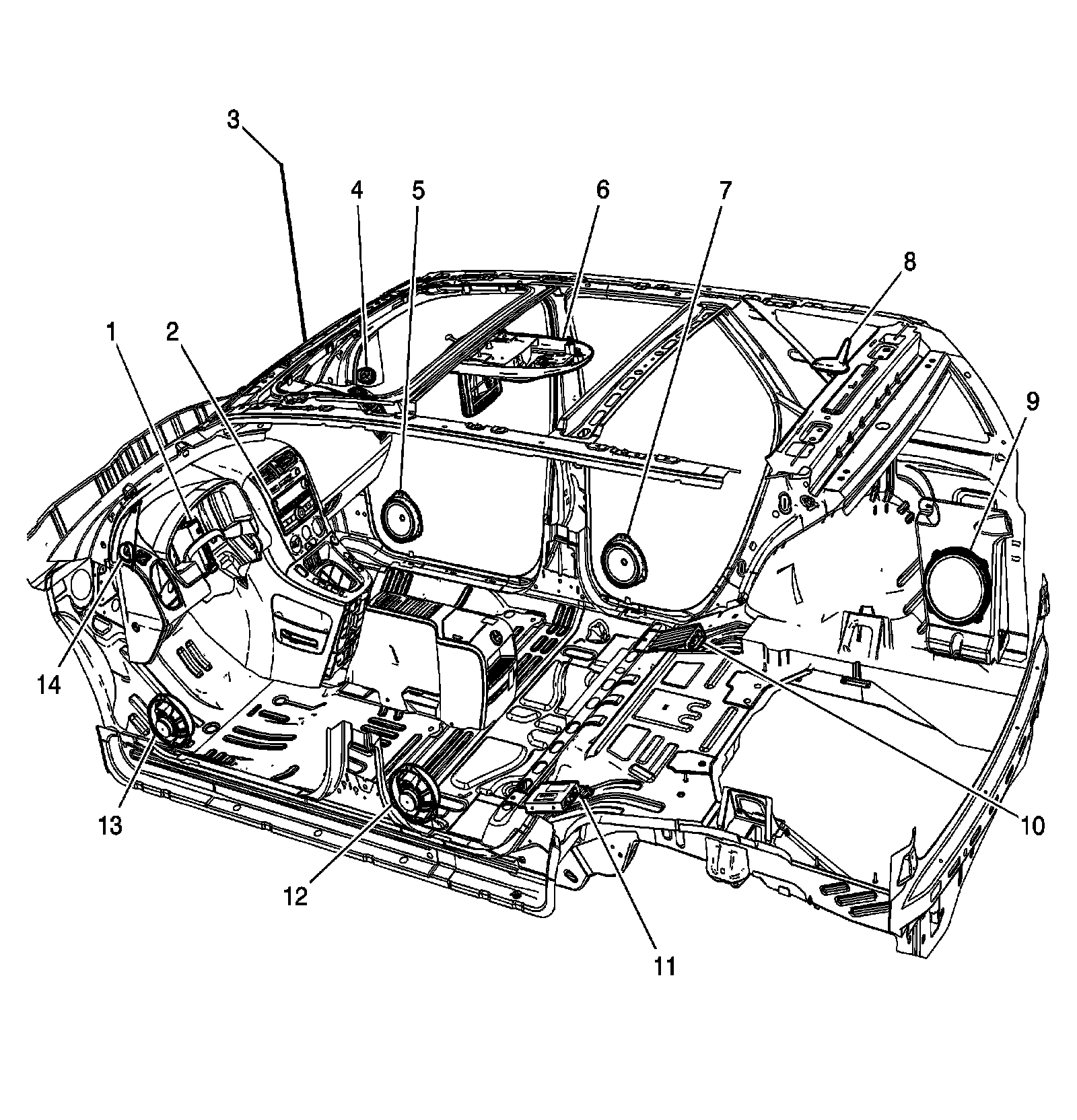

Entertainment Components




1 - Vehicle Communication Interface Module (VCIM) (UE1)
2 - Radio
3 - Antenna - Base
4 - Speaker - RF (Tweeter) (UW6 or WBM)
5 - Speaker - RF
6 - Video Display Console (U32)
7 - Speaker - RR
8 - Cellular/Navigational/Digital Antenna (UE1/U2K)
9 - Speaker - Subwoofer (WBM)
10 - Amplifier (WBM)
11 - Digital Radio Receiver (U2K)
12 - Speaker - LR
13 - Speaker - LF
14 - Speaker - LF (Tweeter) (UW6 or WBM)
