Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

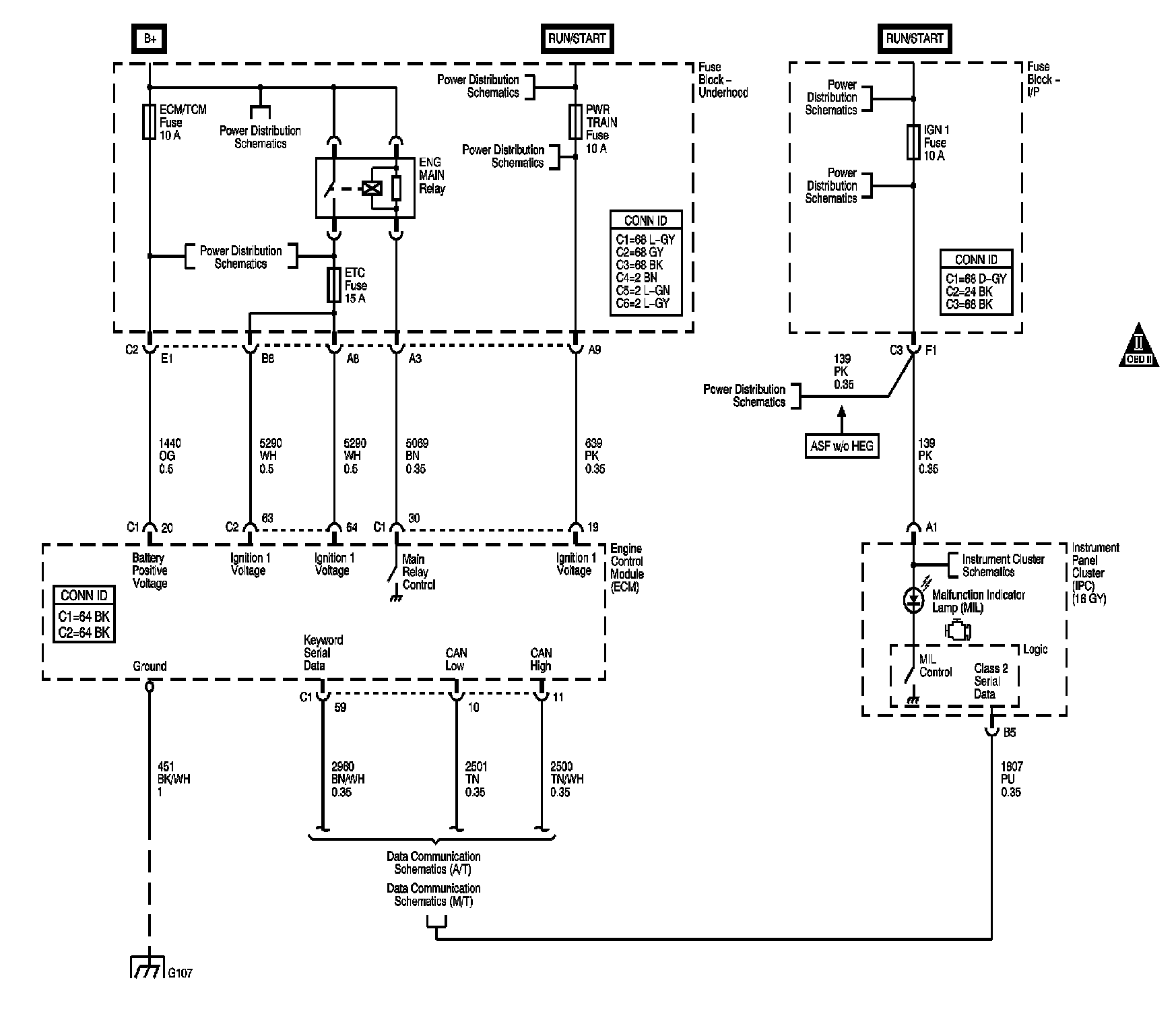

Power, Ground, MIL, and Serial Data

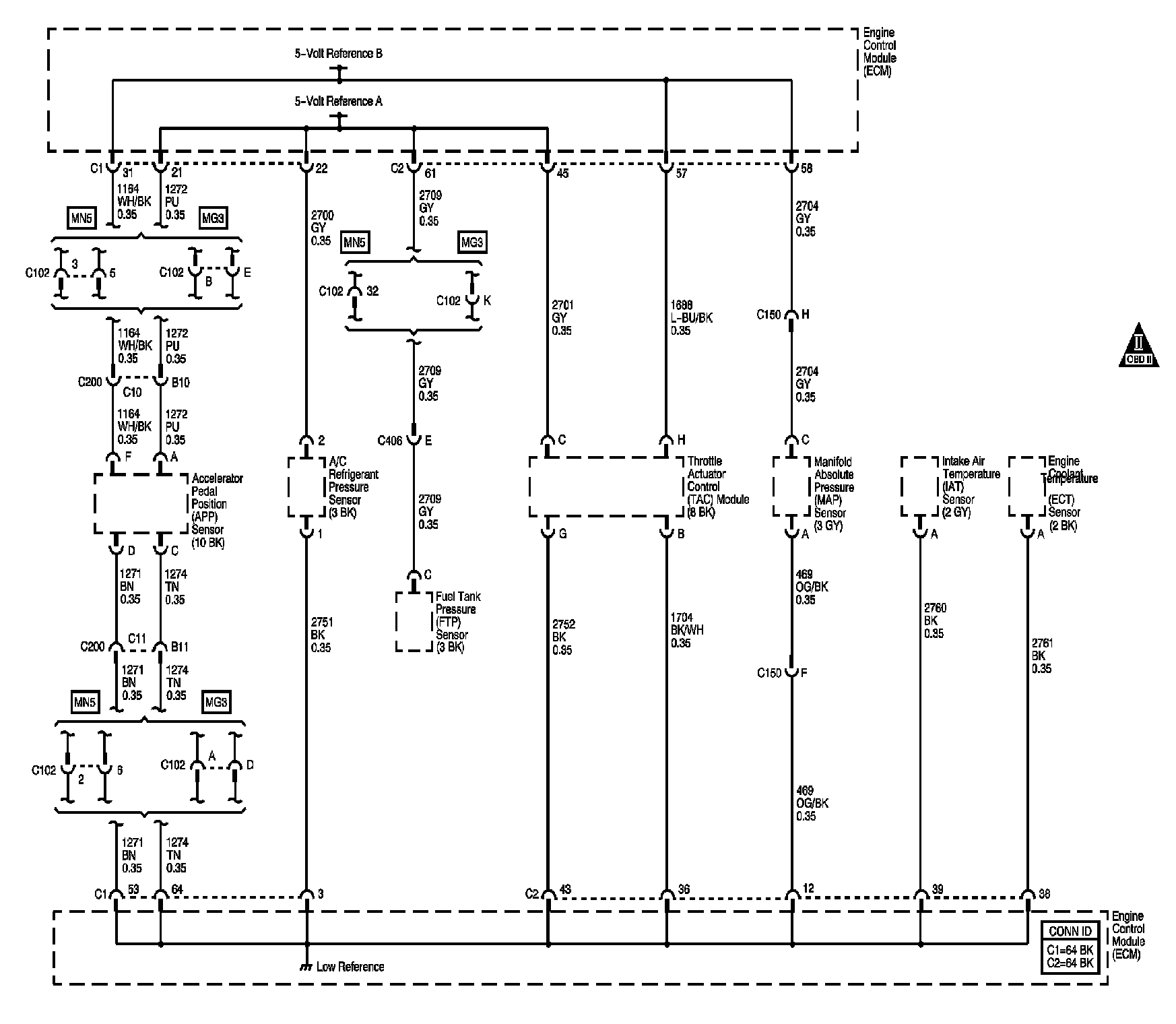

5-Volt and Low Reference

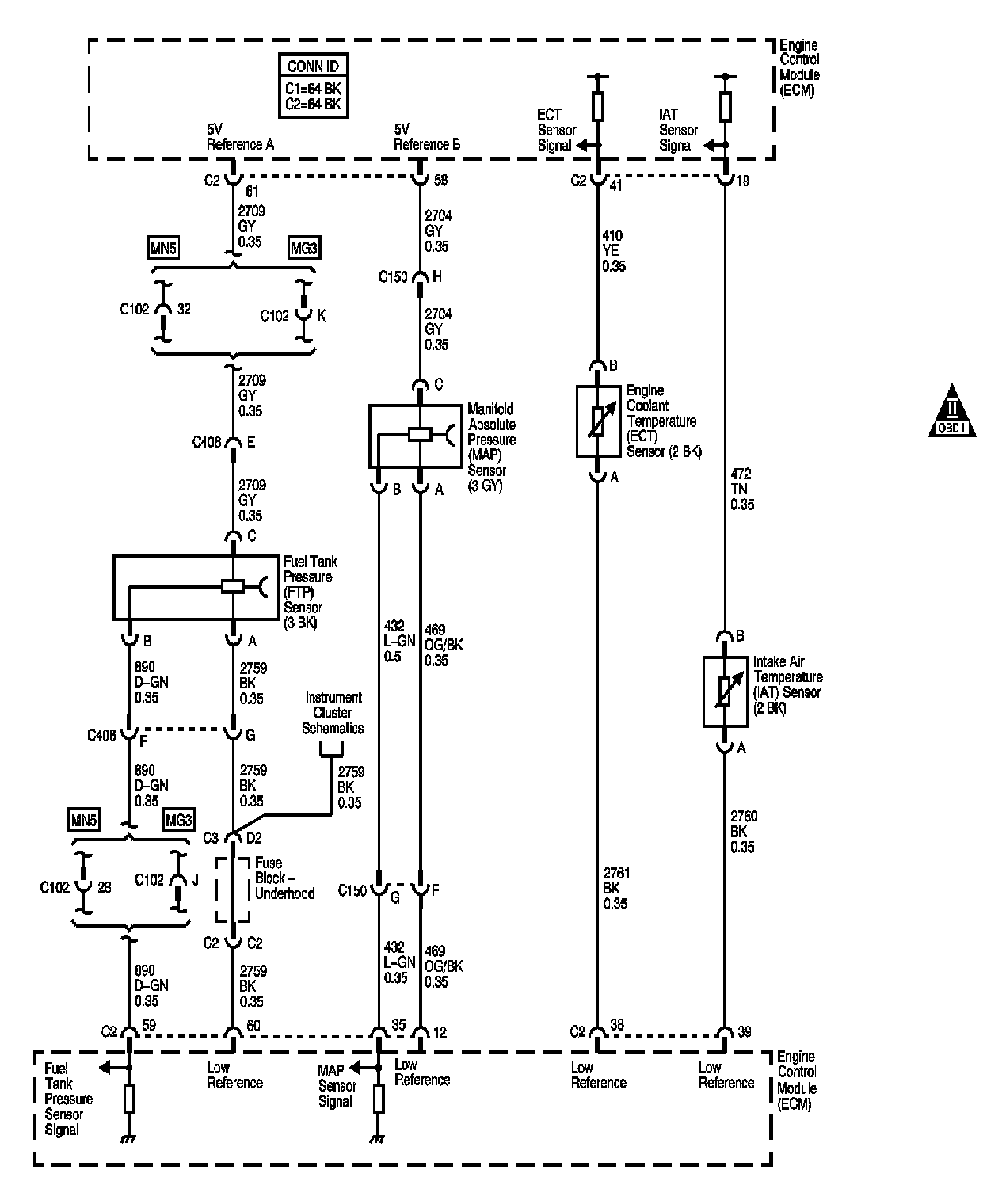

Pressure and Temperature Signals

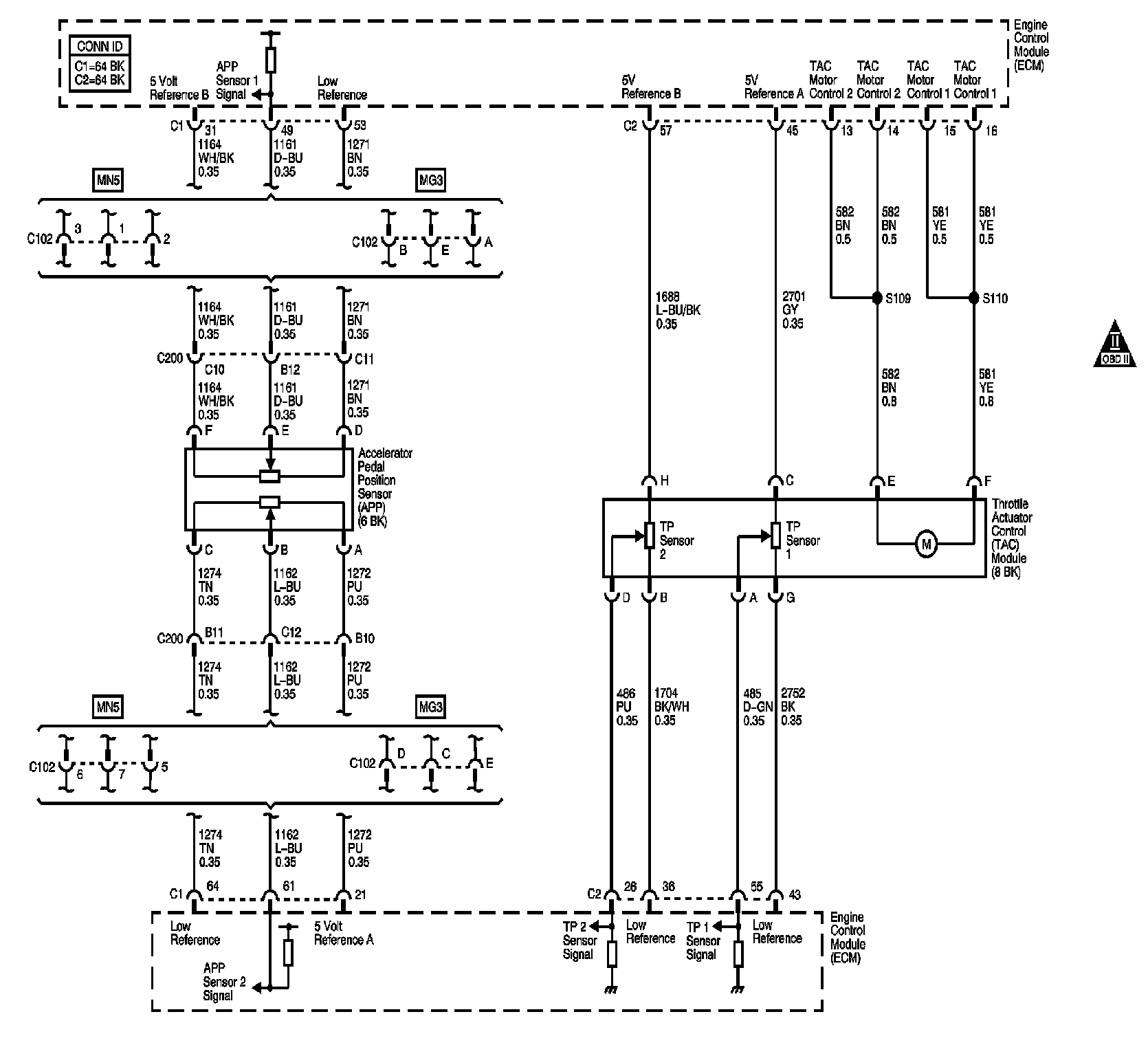

TAC and APP Sensor Signals

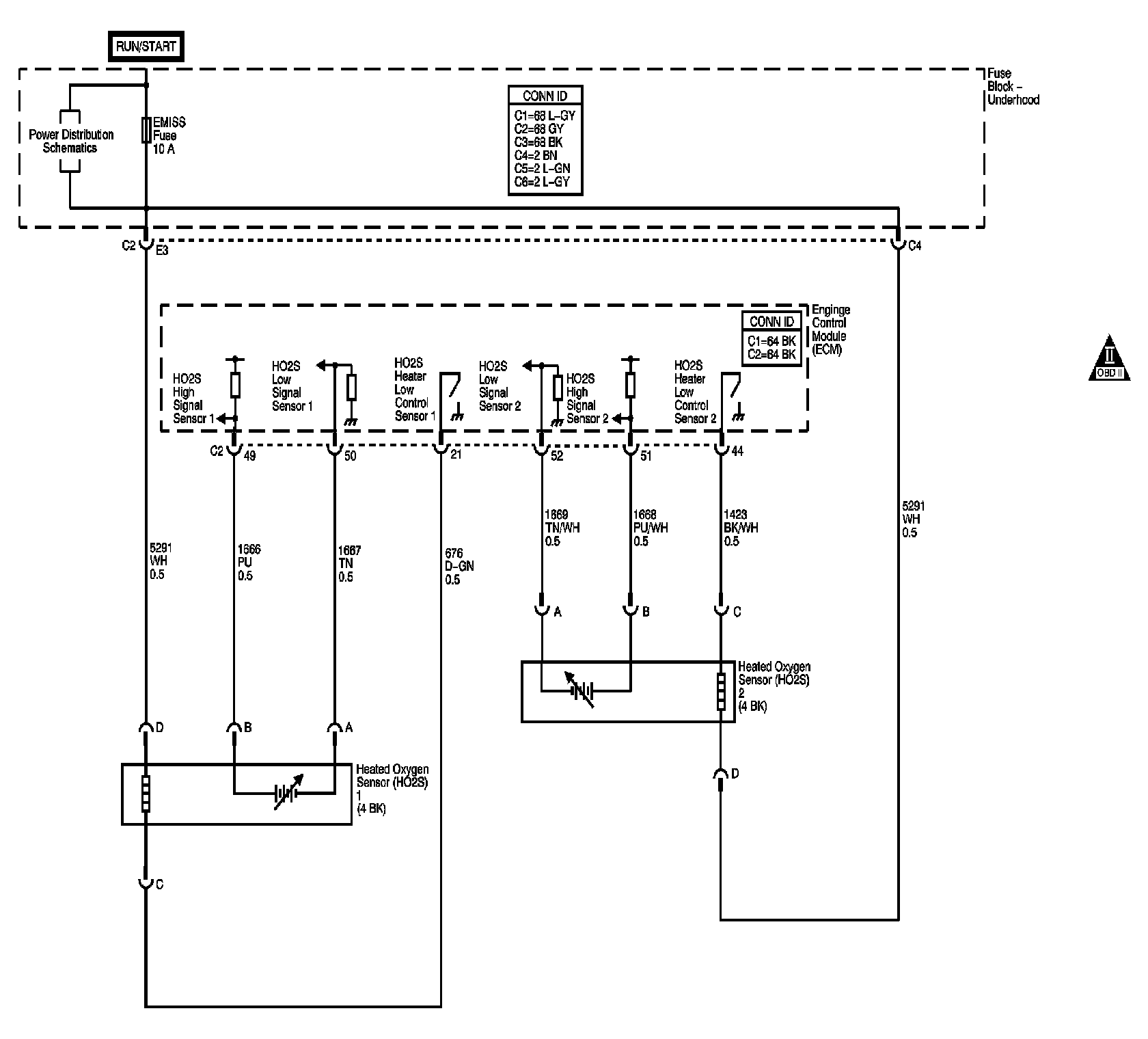

Oxygen Signals

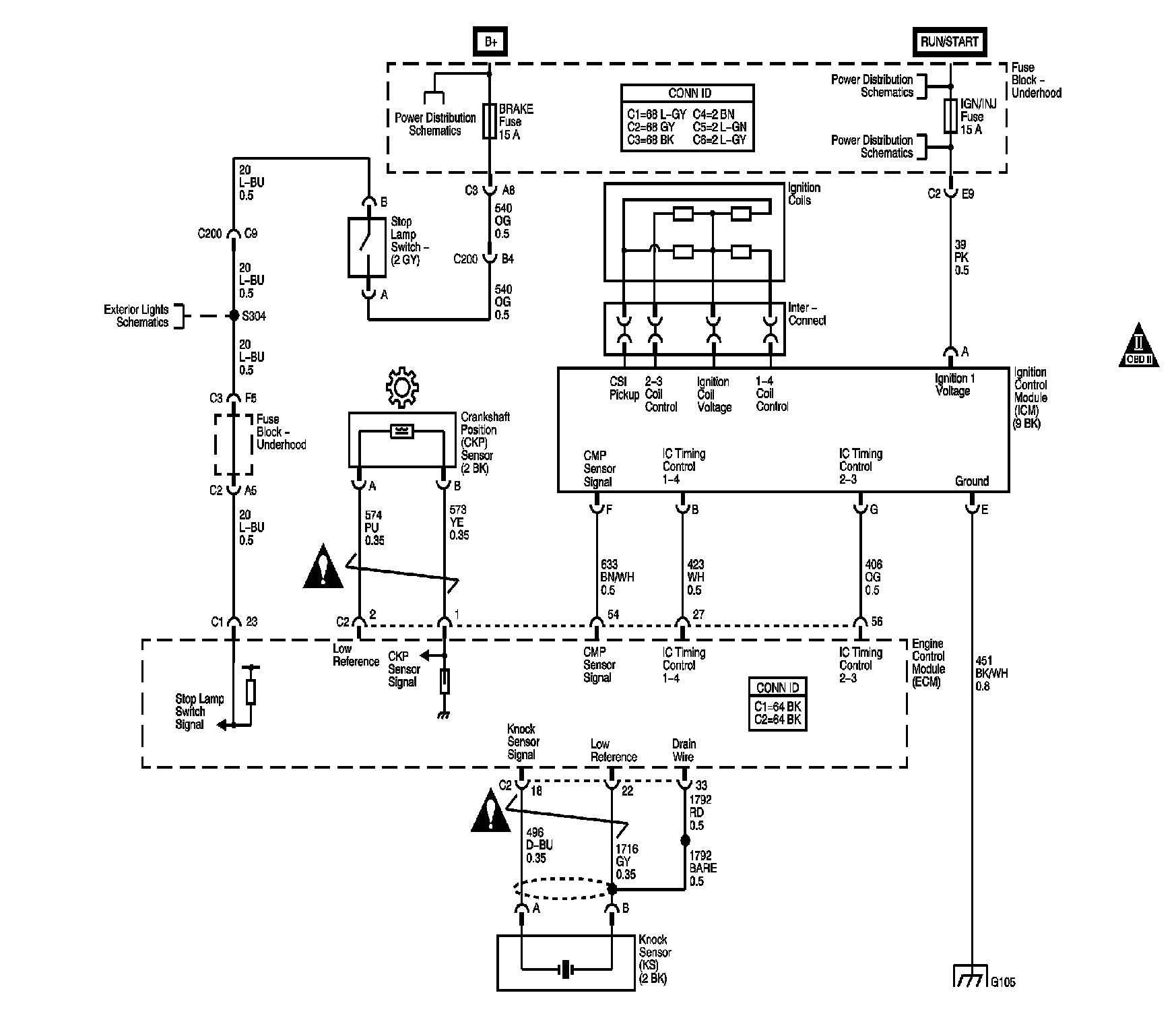

Ignition Controls

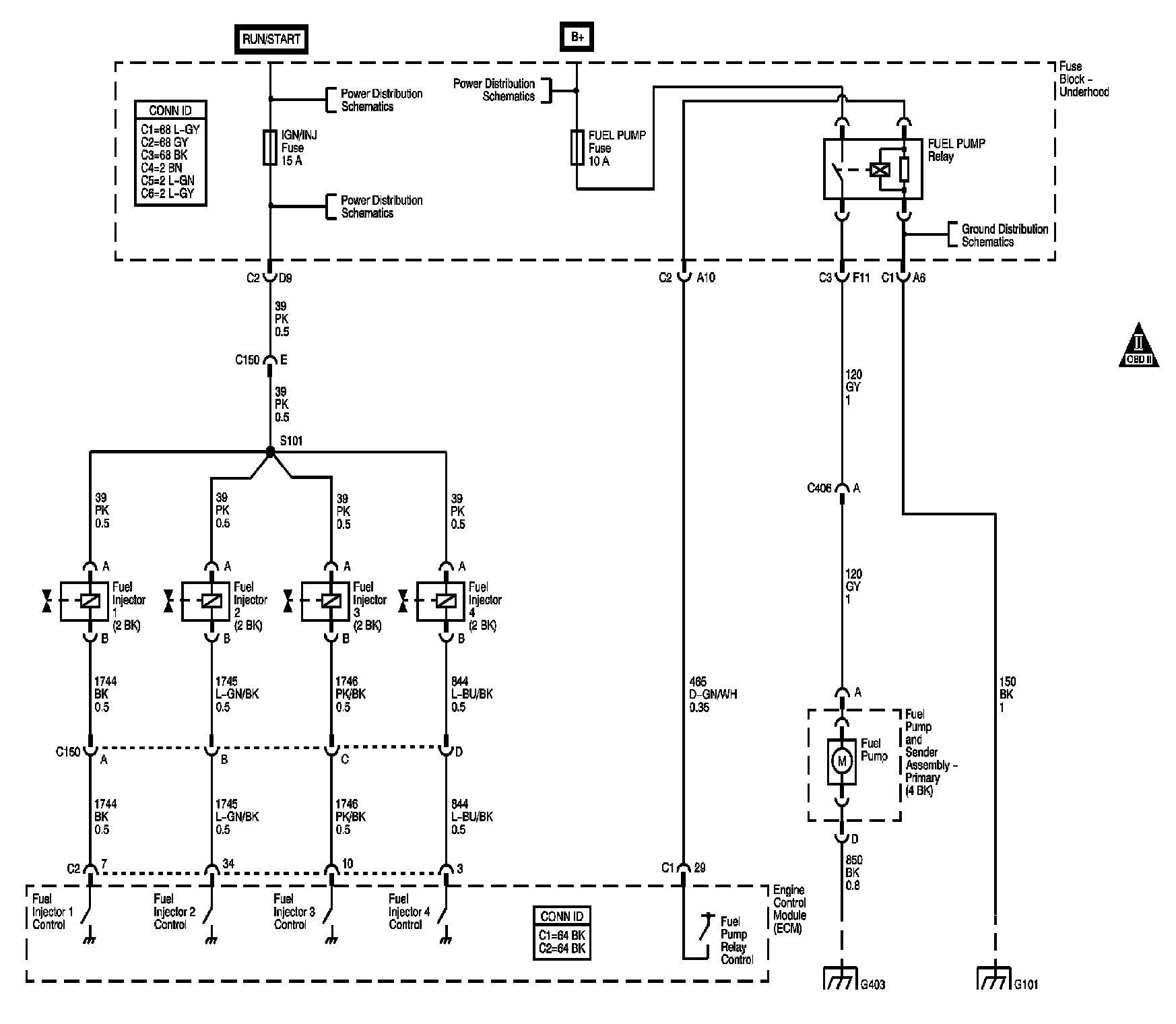

Fuel Pump and Injectors







EVAP Controls

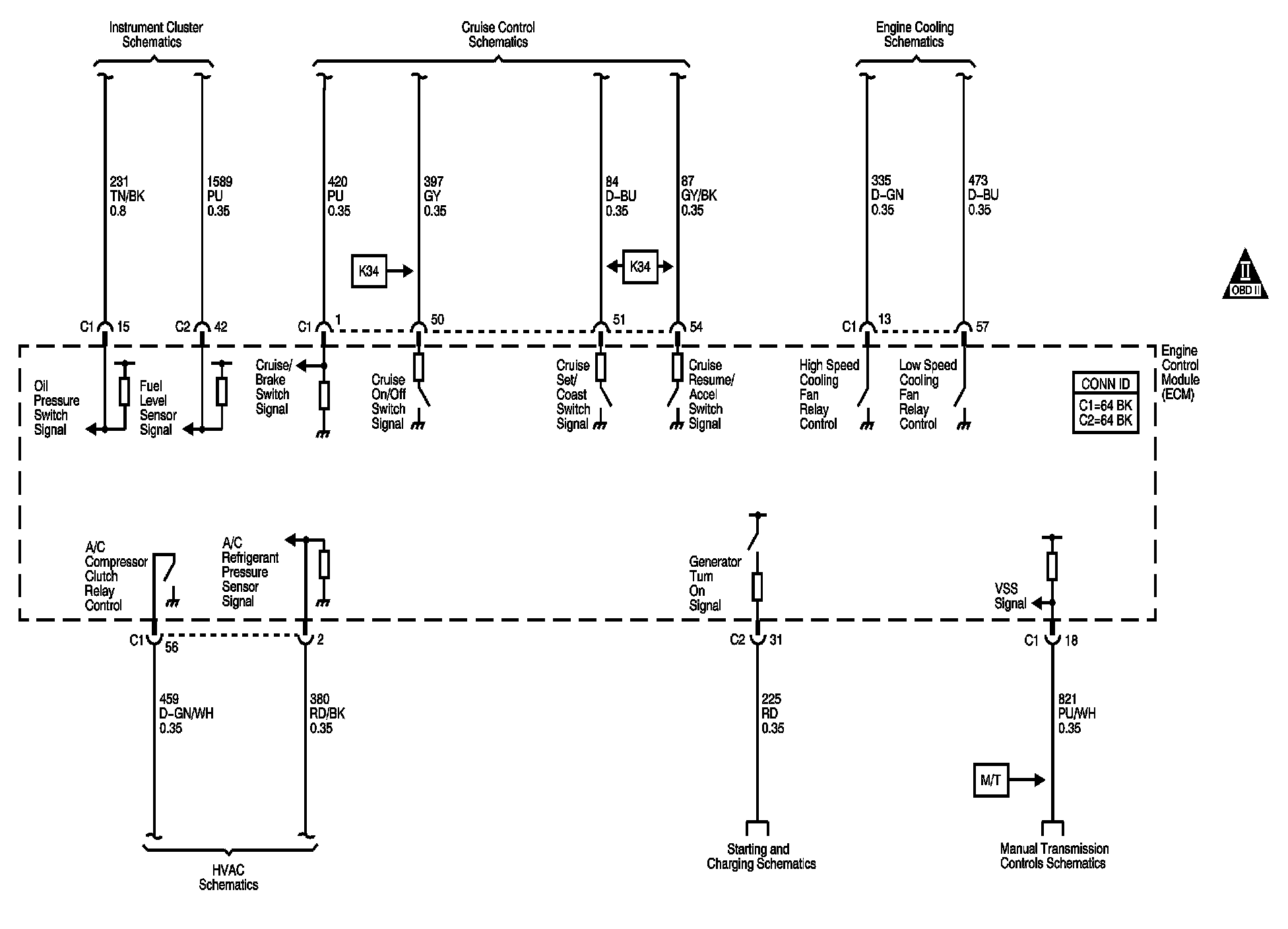

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
