Air Bag Control Module: Locations

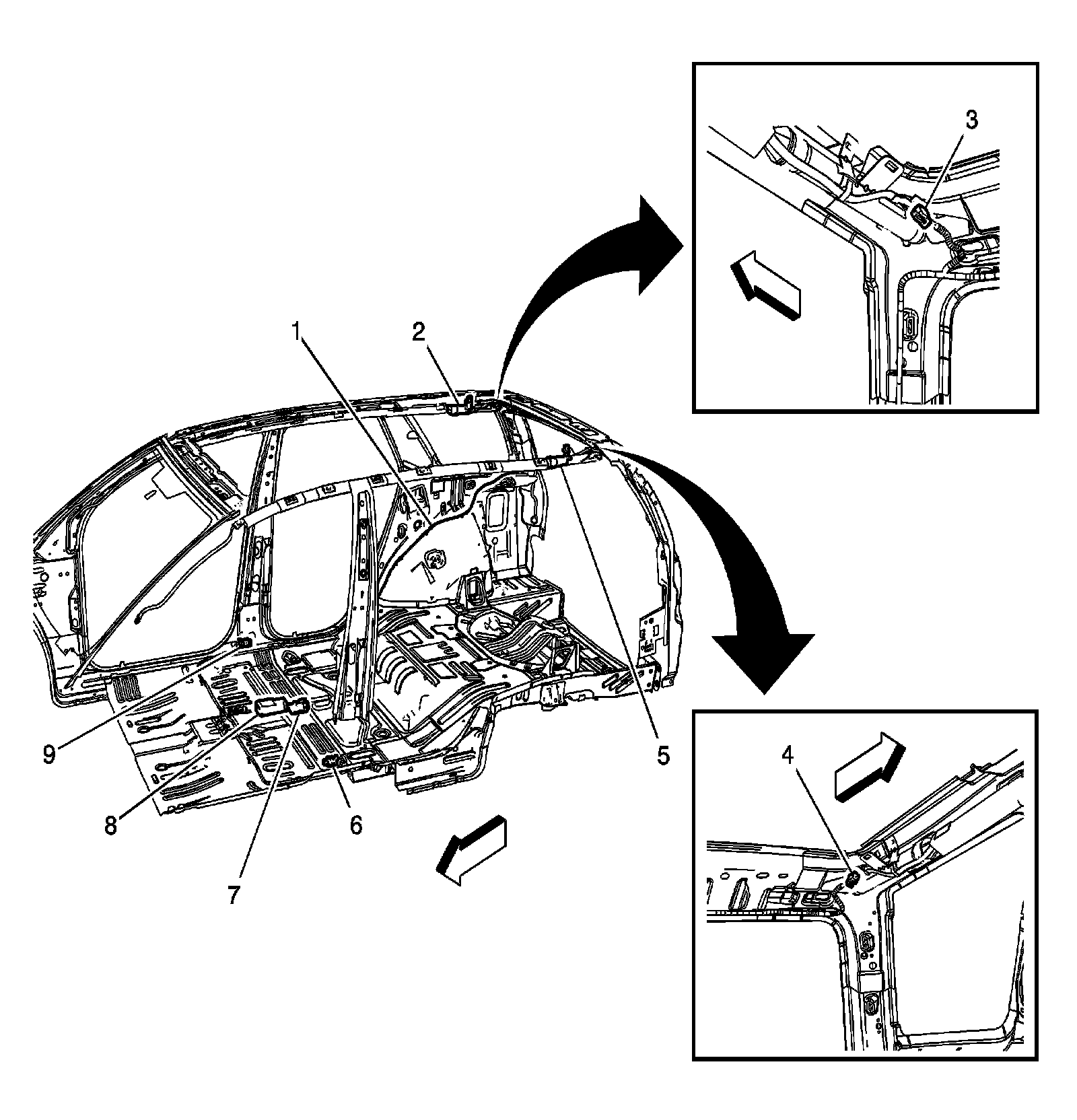

SIR Component Views

Safety and Security Components




1 - Inflatable Restraint Roof Rail Module Harness (ASF)
2 - Inflatable Restraint Roof Rail Module - Right (ASF)
3 - Inflatable Restraint Roof Rail Module - Right (ASF) Connector
4 - Inflatable Restraint Roof Rail Module - Left (ASF) Connector
5 - Inflatable Restraint Roof Rail Module - Left (ASF)
6 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
7 - Rollover Sensor
8 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
9 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
