Generator Battery Disconnect Control Module

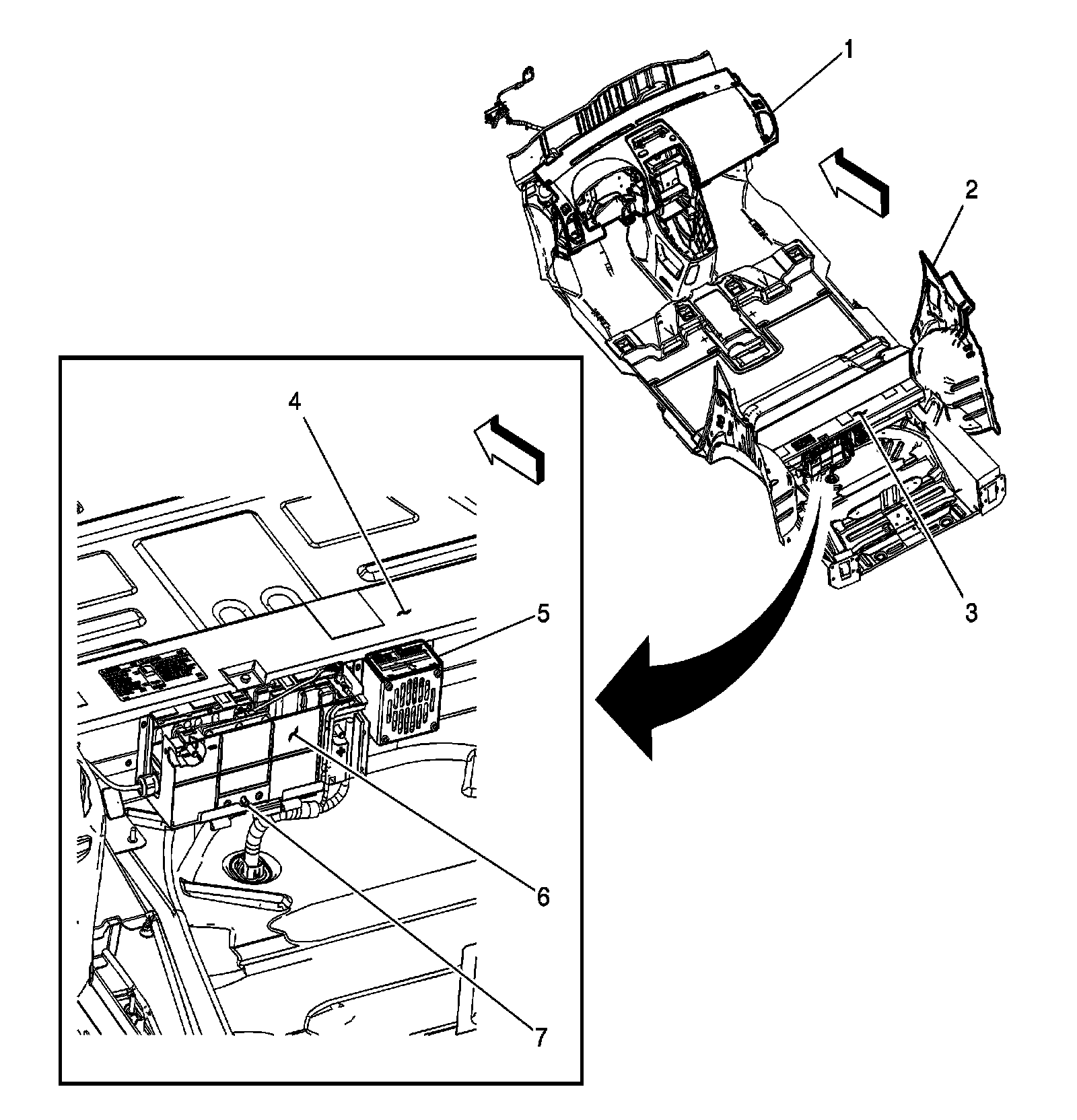

Hybrid Energy Storage Component Views

Above the Spare Tire




1 - Instrument Panel
2 - Wheel Well - RR
3 - Generator Battery - 36V
4 - Generator Battery - 36V
5 - Generator Battery Vent Fan
6 - Generator Battery Disconnect Control Module
7 - Generator Battery Service Disconnect Switch
