Drive Motor Fuse: Service and Repair

Generator Battery Fuse Replacement

Removal Procedure

Caution: To help avoid personal injury, be careful when working in the vicinity of the generator battery disconnect control module. Internal components will still be live, 36V potential, even when the cover has been opened or removed.




1. Disconnect the hybrid battery.

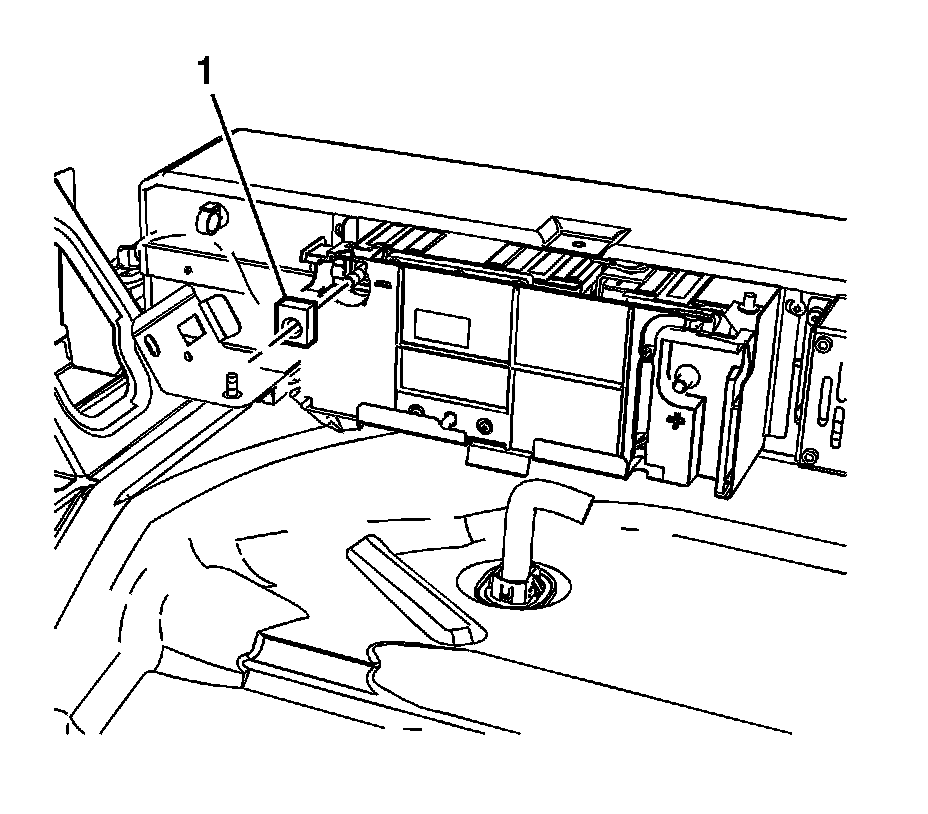

2. Remove the generator battery fuse (1) from the negative battery stud.

Installation Procedure




1. Install the generator battery fuse (1) to the negative battery stud.
2. Connect the hybrid battery.
