Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor Replacement

Removal Procedure

1. Remove the left camshaft sprocket.

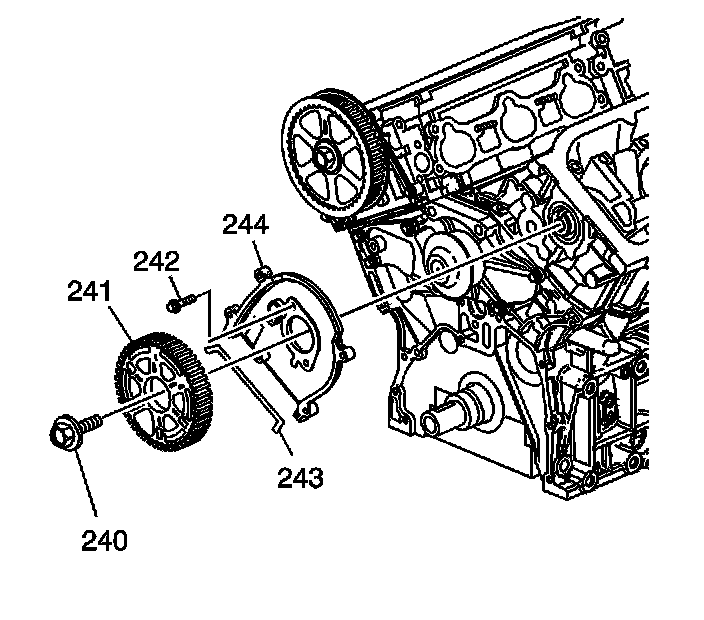

2. Remove the bolt (240), sprocket (241), bolts (242), cover (244) and seal (243).




3. Remove the bolt (723) and camshaft position (CMP) sensor (700).

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the camshaft position (CMP) sensor (700) and bolt (723).

Tighten the bolt to 4 N.m (35 lb in).




2. Install the cover (244), NEW seal (243) and bolts (242).

Tighten the bolts to 22 N.m (16 lb ft).

3. Install the left camshaft sprocket.
