Video Display Replacement
WARNING: This page is about a different car, the 2006 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Video Display Replacement

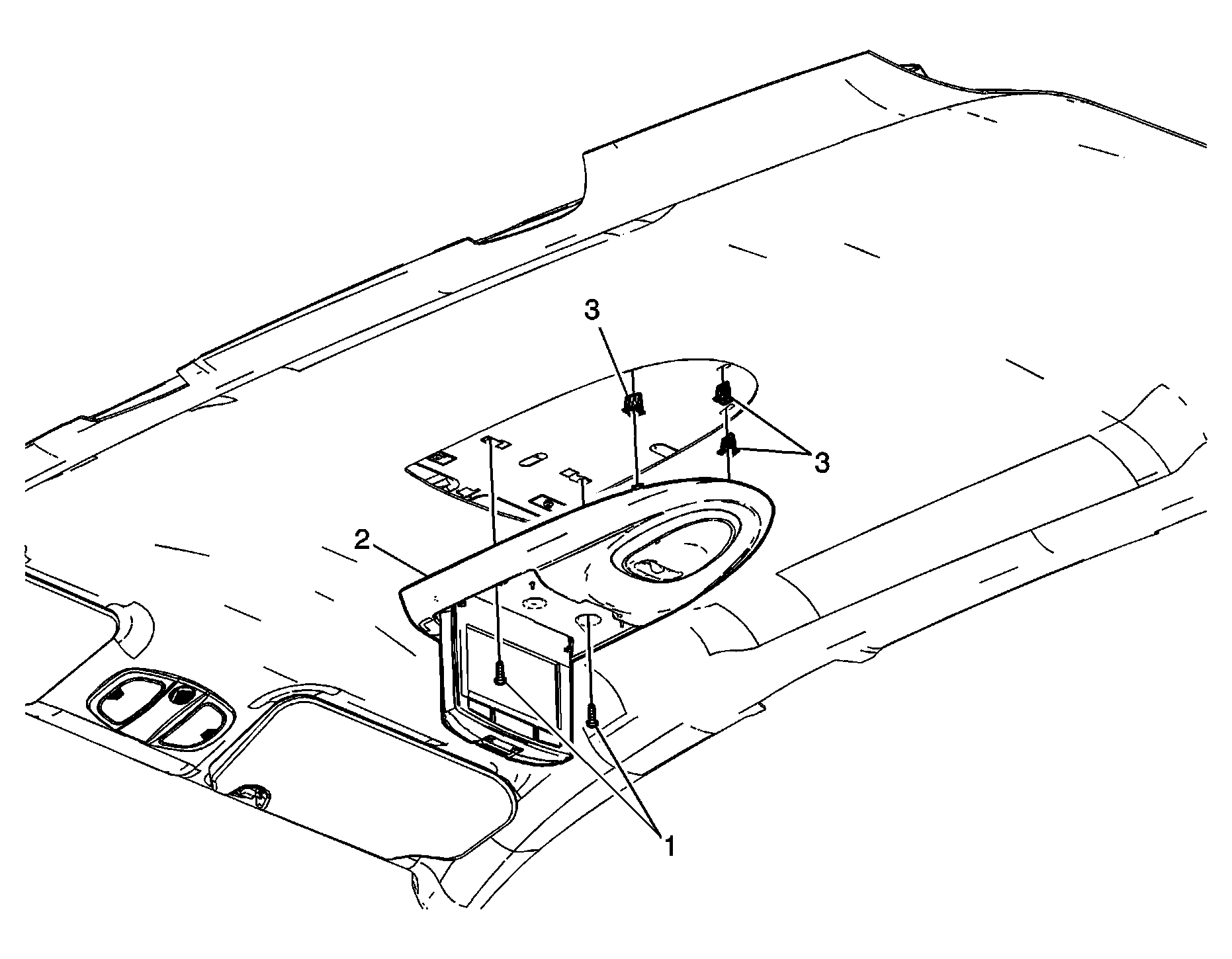

| Callout | Component Name | |||
| Notice: Refer to FASTENER NOTICE
in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . |
||||
| 1 | Video Display Assembly Screw (Qty: 4) Tighten 2 Nm (18 lb in) |
|||
| 2 | Video Display Assembly Tip 1. Pull down to disengage the retainer clips at the rear of the display assembly. 2. Disconnect the electrical connector. |
|||
| 3 | Video Display Assembly Retainer Clip (Qty: 3) | |||
